Beveling Cutting Sheet And Tube Laser Cutting Machine 380V 800kg 100m/Min
Beveling Cutting Sheet And Tube Laser Cutting Machine 380V 800kg 100m/Min
Beveling Cutting Sheet And Tube Laser Cutting Machine 380V 800kg 100m/Min
Beveling Cutting Sheet And Tube Laser Cutting Machine 380V 800kg 100m/Min
Specifications
Brand Name :
QIHAI
Model Number :
QH-3015F
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90set/mon
Delivery Time :
45-60 work days
Packaging Details :
wooden box
Product :
Sheet Metal Laser Cutting Machine
Processing Area :
3000 * 1500mm
Laser Power :
1500W-20000W
X/Y-axis Positioning Accuracy :
0.03mm
Frequency :
50Hz
Voltage :
380V
Laser Generator Classification :
Fiber Laser Generator
Transmission :
Double rack&pinion transmission and servo drive
Working Environment :
0-40℃, Humidity ≤80%
Graphic Format :
PLT, DXF
Lathe Structure :
Tube Sheet Welding
Bevel Angle :
±45°
Description
Beveling Cutting Sheet And Tube Laser Cutting Machine 380V 800kg 100m/Min Beveling Cutting Sheet And Tube Laser Cutting Machine 380V 800kg 100m/Min

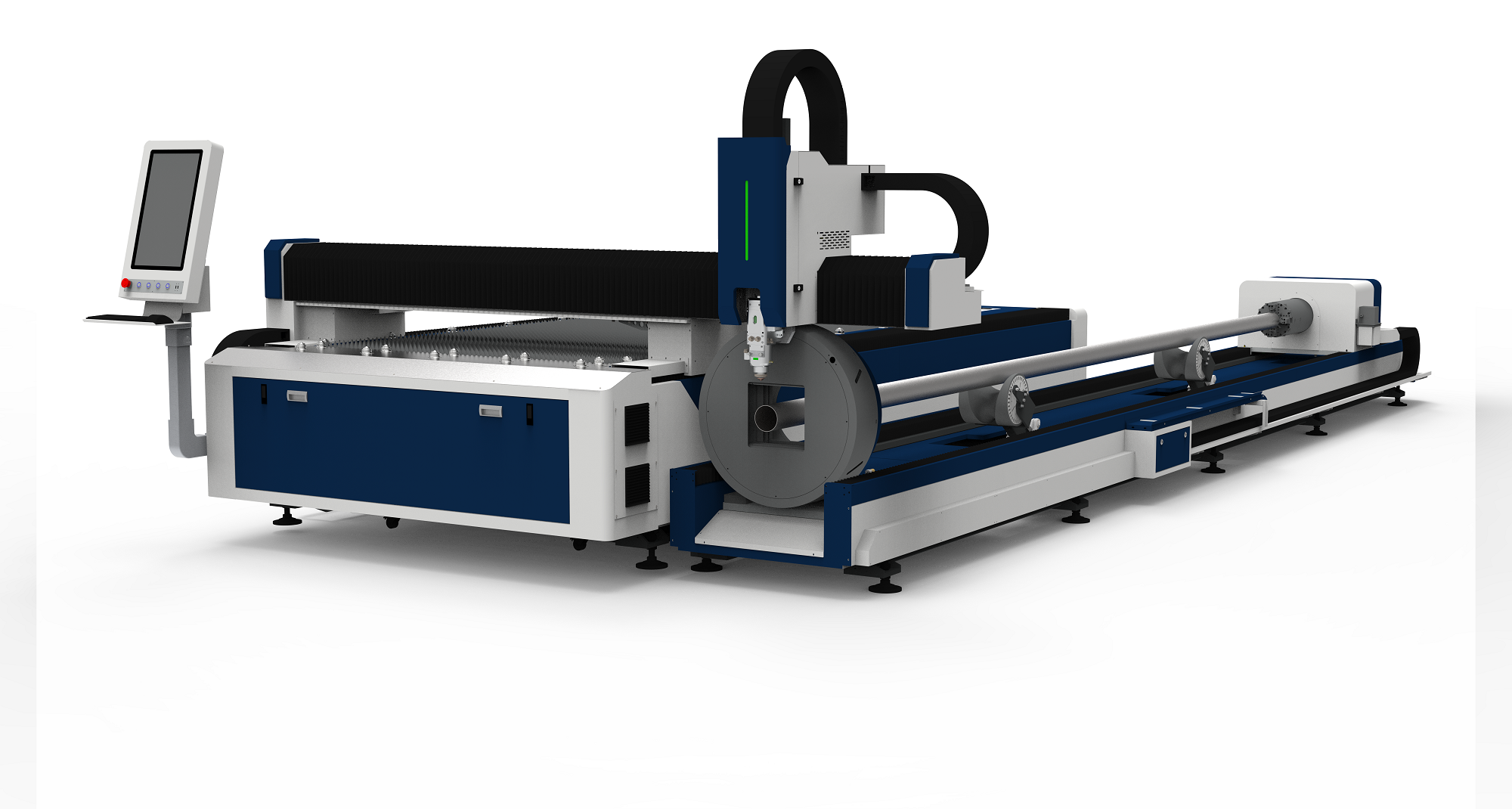

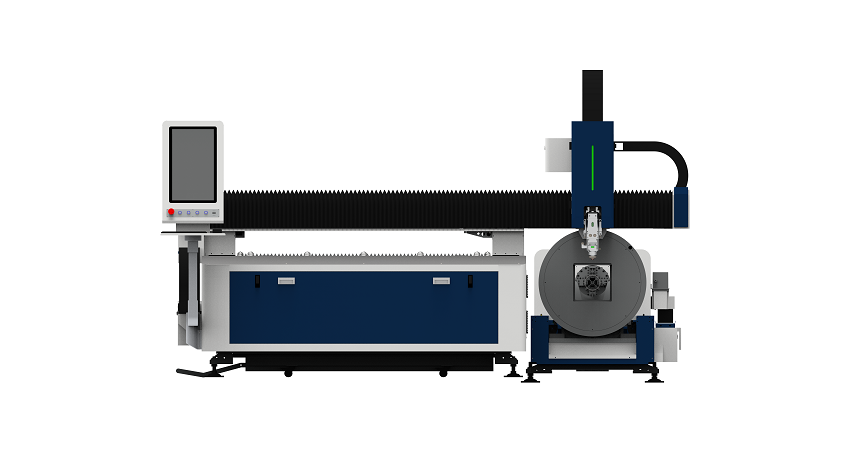

QH - 3015FT Beveling Cutting Sheet and Tube Laser Cutting Machine
Description
The QH-3015FT is a high-performance integrated beveling cutting solution that combines flat sheet processing, tube processing, and precision bevel cutting in one unit—eliminating the need for separate sheet, tube, and beveling machines. It features a 3000×1500mm processing area for flat sheets (supporting a maximum loading weight of 800kg) and adapts to common tube types (round, square, rectangular) while enabling bevel cuts (e.g., V-type, Y-type) for welding prefabrication. Equipped with a 1500W-20KW laser power range, it delivers precise cuts on carbon steel, stainless steel, aluminum, and copper, backed by ±0.03mm X/Y-axis positioning and repositioning accuracy. Its double rack & pinion transmission with servo drive ensures stable motion, supporting a maximum linkage speed of 100m/min and 1.0G acceleration for efficient batch processing. Weighing 2500kg with overall dimensions of 8450×3250×1900mm, it fits semi-automated or large-scale workshops (operating on 380V/50Hz) and is ideal for industries like automotive parts, steel structures, and hardware manufacturing that require both sheet/tube processing and welding-ready beveled edges.
Quick Detail

Core Integrated Feature: All-in-one sheet (3000×1500mm, 800kg max load), tube, and bevel cutting—no separate machines needed, simplifying workflow and workshop layout.​

Key Specs: ±0.03mm dual-axis accuracy, 1500W-20KW power, 100m/min max speed, double rack & pinion transmission; bevel capability for welding prefabrication.​

Fit: Industries needing sheet/tube + bevel (steel structure/automotive); balances multi-tasking, precision, and efficiency.

Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 2500kg
Overall Dimensions 8450×3250×1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

Triple-Function Integration Cuts Costs & Space: By merging sheet, tube, and bevel cutting into one machine, it reduces workshop space occupancy by 50%-60% compared to three separate devices. It also lowers initial investment (no need for dedicated sheet, tube, and beveling equipment) and operational costs (unified maintenance, single power supply), making it cost-effective for medium-to-large production with welding prefabrication needs.​

Seamless Sheet-Tube-Bevel Workflow: Operators can switch between sheet cutting, tube cutting, and bevel processing without reconfiguring lines or transferring materials—eliminating workflow interruptions. This cuts material handling time by 35%-45% and avoids quality inconsistencies from multi-machine transfer, especially for projects requiring matched sheet components, tube frames, and beveled weld edges.​

Consistent Precision Across All Tasks: Backed by ±0.03mm positioning/repositioning accuracy and servo-driven double rack & pinion transmission, the machine maintains uniform quality whether processing 3000×1500mm sheets (up to 800kg), various tubes, or beveled edges. The 100m/min max speed ensures efficient processing for all three functions, avoiding the efficiency gaps of single-function machines and boosting overall production throughput.
