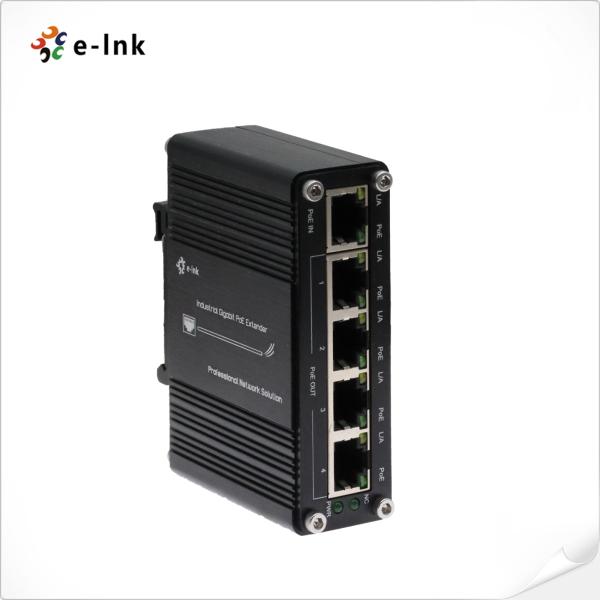

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-30
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 PCS
Price :
$69-$89
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
3-10working days
Packaging Details :
Industrial Gigabit PoE Extender Standard Export Package
PoE Input Port :
10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input (50~57V DC, Max 30W)
PoE Output Power :
Max 25.5W (up to 101m); 20W at 200m
PoE Standards Supported :
IEEE 802.3af/at Power over Ethernet, Mid-span & End-span
Switching Capacity :
10Gbps, with 8K MAC Table and 14.88Mpps packet forwarding rate
ESD Protection :
6KV contact discharge, 8KV air discharge (IEC61000-4-2 Level 3)
Environmental Protection :
IP40-rated aluminum case, designed for -40°C to 80°C operating temperatures
Description

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail

Overview

The LNK-IPE104-30 is a high-performance industrial PoE+ extender designed to extend

both data and power over Ethernet. With a 1-Port 802.3at PoE+ input, it can deliver up to

25W of PoE power across 4 output ports, making it ideal for point-to-multipoint PoE

applications. This device supports up to 200m of Ethernet range, and by daisy-chaining

multiple extenders, it can achieve a total PoE+ network extension of up to 400m. With a

robust IP40-rated aluminum case and wide operating temperature range of -40°C to 80°C,

it ensures reliable performance in harsh environments. The LNK-IPE104-30 offers flexible

installation options, supporting both DIN-Rail and wall-mount setups.

Features

1-Port 802.3at PoE+ Input: Provides up to 30W power for 4 PoE output ports.

4-Port 802.3af/at PoE Output: Delivers up to 25W PoE power across four devices

simultaneously.

Extended Ethernet Range: Extends PoE and Gigabit Ethernet up to 200 meters, with the

ability to daisy chain up to 3 extenders for a total of 400 meters.

High-Speed Ethernet Ports: Supports 10/100/1000Mbps Ethernet for fast and reliable data

transmission.

IP40-Rated Aluminum Housing: Durable, industrial-grade protection for harsh environments.

Wide Operating Temperature: Works in extreme temperatures from -40°C to 80°C

(-40°F to 176°F).

Flexible Installation: Supports DIN-Rail and wall-mount installations for versatile deployment.

No External Power Adapter: Powered directly by 802.3at PoE+ source, eliminating the need

for additional power sources.

Technical Indexes

Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3at PoE Input

Input Power 50~57V DC, Max 30W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output

Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8K

Switching Capacity

10Gbps

Packet Forwarding Rate

14.88Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC6000-4-5

ESD Protection

6KV 1a Contact Discharge Level 3,

8KV 1b Air Discharge Level 3,

Standard: IEC61000-4-2

Protection Level

IP 40

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options

DIN-Rail / Wall-mount

Certifications

Certifications

CE, FCC, RoHS

Ordering Information

Model

Description

LNK-IPE104-30

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

Mounting Options

Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Application

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail

Dimension

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
