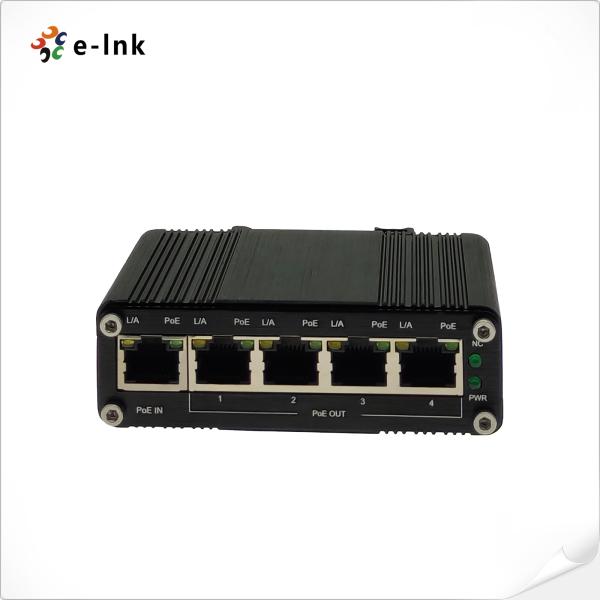

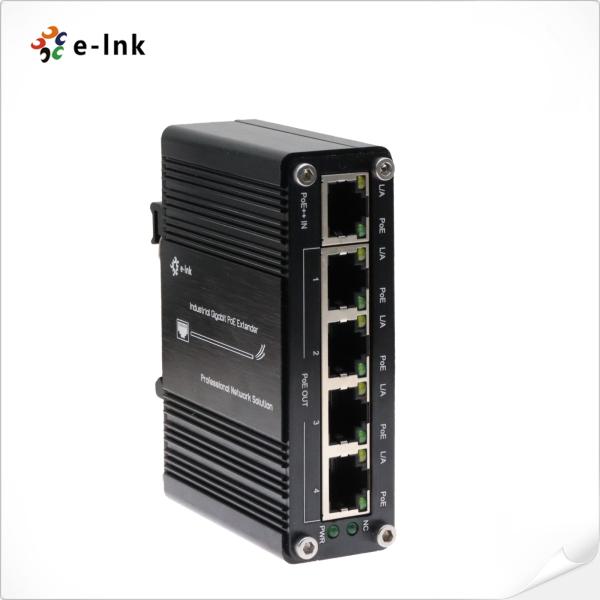

Industrial Port PoE Extender 95W Input 75W Output 200m Range
Industrial Port PoE Extender 95W Input 75W Output 200m Range
Industrial Port PoE Extender 95W Input 75W Output 200m Range
Industrial Port PoE Extender 95W Input 75W Output 200m Range
Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-90
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
USD $79-99
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
Supply Ability :
1000pcs/month
Delivery Time :
3-10working days
Packaging Details :
Industrial Gigabit PoE Extender Standard Export Package
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Forwarding Modes :
Store and Forward
Transmission Distance :
100m
Mounting Options :
DIN-Rail / Wall-mount
Description

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

Industrial Gigabit PoE Extender Overview


The LNK-IPE104-90 is an industrial-grade, 1-port, 802.3bt PoE++ to 4-port, 802.3af/at Gigabit PoE extender,

which is ideal for point-to-multipoint PoE deployments. Supporting a maximum input power of 95W (PoE++),

it delivers a total PoE budget of 75W across four output ports, extending Gigabit Ethernet data

and PoE power up to 200 metres (double the standard limit of 100 metres) over Cat.5/5e/6 cables.

The extender can power up to four PDs simultaneously, eliminating the need for additional cabling

or external power adapters and making it perfect for flexible, cost-effective network expansion.


Industrial Gigabit PoE Extender Features

  • 8 × 10/100Base-TX + 2 × 100Base-FX ports

  • 10/100 Mbps RJ45 ports support full/half-duplex, auto-negotiation, and Auto MDI/MDIX

  • Flexible fiber interface options: SFP, SC, FC, or ST

  • IEEE 802.3x flow control for reliable data transmission

  • IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption

  • Redundant power input design for enhanced reliability

  • Supports both wall-mount and DIN-rail installation

  • Wide operating temperature range: -40°C to 80°C (-40°F to 176°F) for industrial environments

Industrial Gigabit PoE Extender Technical Indexes


Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 95W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output

Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8K

Switching Capacity

10Gbps

Packet Forwarding Rate

14.88Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC6000-4-5

ESD Protection

6KV 1a Contact Discharge Level 3,

8KV 1b Air Discharge Level 3,

Standard: IEC61000-4-2

Protection Level

IP 40

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options

DIN-Rail / Wall-mount

Certifications

Certifications

CE, FCC, RoHS


Industrial Gigabit PoE Extender Ordering Information


Model

Description

LNK-IPE104-90

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Industrial Gigabit PoE Extender Application
Industrial Port PoE Extender 95W Input 75W Output 200m Range

After-Sales and Warranty Policy


It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.


[The following circumstances do not fall within the scope of replacement and free maintenance]


1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
