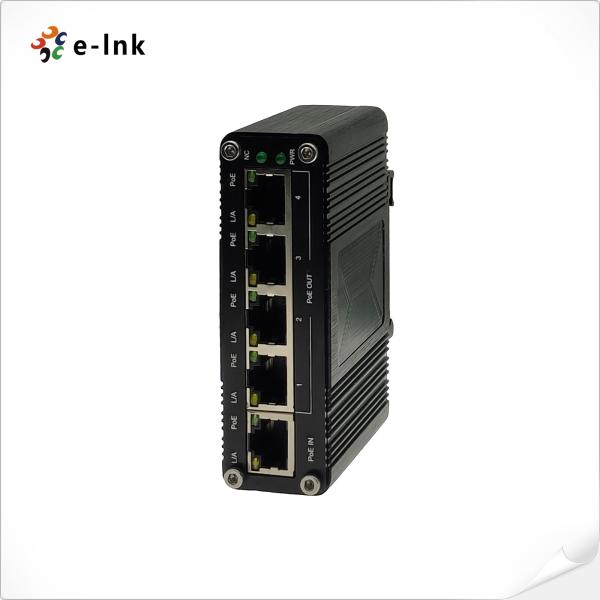

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain
Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain
Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain
Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain
Specifications
Brand Name :
E-link
Model Number :
LNK-IPE104-90
Certification :
CE, FCC, RoHS, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Pcs
Price :
$79-$104
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
3000 pcs/month
Delivery Time :
3-9 working days
Packaging Details :
PoE Extender Standard Export Package
PoE Input :
1× RJ45, IEEE 802.3bt, up to 95W
PoE Output :
4× RJ45, IEEE 802.3af/at, total 75W
Extension Distance :
200m per unit, up to 400m daisy-chained
Dimensions :
95 × 70 × 30 mm, 0.25 kg
Operating Temp :
-40°C to 80°C
Mounting :
DIN-Rail / Wall-mount
Description

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain

overview

The LNK-IPE104-90 is a rugged industrial PoE extender that converts one 802.3bt PoE++

input into four 802.3af/at Gigabit PoE outputs. Designed for point-to-multipoint deployments,

it delivers up to 75W total power budget, extends Ethernet and PoE beyond 100m, and

supports cascading up to 400m without additional power adapters. With IP40-rated aluminum

housing and wide temperature tolerance, it ensures reliable operation in harsh industrial and

outdoor environments.

Features

1× 802.3bt PoE++ Input — Accepts up to 95W power

4× Gigabit PoE Outputs — Total 75W PoE power budget

Long-Distance Extension — Extends Ethernet + PoE up to 200m; 400m with 3 extenders

Industrial Design — IP40-rated aluminum casing, -40°C to 80°C operation

Flexible Mounting — DIN-Rail & Wall-mount supported

High Reliability — 6kV surge & 8kV ESD protection, CE/FCC/RoHS certified

Technical Indexes

Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 95W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output

Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8K

Switching Capacity

10Gbps

Packet Forwarding Rate

14.88Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC6000-4-5

ESD Protection

6KV 1a Contact Discharge Level 3,

8KV 1b Air Discharge Level 3,

Standard: IEC61000-4-2

Protection Level

IP 40

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options

DIN-Rail / Wall-mount

Certifications

Certifications

CE, FCC, RoHS

Ordering Information

Model

Description

LNK-IPE104-90

Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Application

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain

Dimension

Industrial 1-Port 95W PoE++ to 4-Port Gigabit PoE Extender 400m Daisy-Chain
