1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath
1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath
1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath
1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath
1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath
1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath
Specifications
Brand Name :
JQ\OEM
Model Number :
Outdoor FTTH Messenger drop cable
Certification :
CE/ISO9001/RoHS/FCC
Place of Origin :
Guangdong, China
MOQ :
1kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000kilometers per month
Delivery Time :
2-5days
Packaging Details :
Carton
Material of Sheath :
LSZH/PVC
Jacket colors :
Black,white etc.
Strength member :
steel wire/FRP Glass yarn
Fiber :
Single mode, Multi-mode
Fiber Type :
Single-mode
Fiber brand :
YOFC Corning Fiberhome
Key words :
FTTH Drop Cable
Application :
FTTH,Network
Cable type :
Self-supporting with messenger wire
Messenger :
Steel Wire
Warranty Time :
30 years
Use :
Network
Fiber Color :
Blue
Out Color :
black and white
Keywords :
Drop Cable FTTH
Jacket Material :
LSZH (low smoke zero halogen)
Cable Length :
100m 200m
Connector Polishing :
UPC
Outer Sheath :
LSZH/PVC
Manufactuer :
Yes
Manufacturer :
Yes
Number Of Fiber :
1/2/4 cores
Central Strength Member :
FRP strength member/steel wire
Tensile Strength :
100N
Cable Structure :
Self-supporting with messenger wire
Oem :
Yes
Weight :
20kgs/km
Strength Member Material :
FRP
Material Of Jacket :
LSZH
Number Of Conductors :
1/2/4
Warranty :
15 Years
Size :
2.0MM*3.0MM
Description

1/2/4 Core GJYXCH FTTH Drop Cable, Single Mode, G.652D / G.657A1 / G.657A2 – Indoor Fiber Optic Cable (1km/2km)

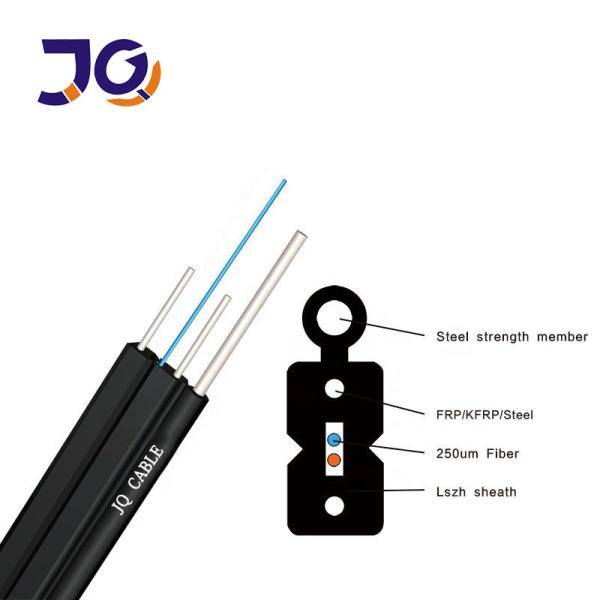

This FTTH drop cable features a centrally located optical fiber, flanked by two parallel steel-reinforced strength members for enhanced durability. An additional steel wire further reinforces the structure. The cable is jacketed in a low-smoke, zero-halogen (LSZH) sheath, available in black or custom colors, ideal for indoor applications.

1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath

Features

  1. Compact Design

  • Small-diameter structure (typically 3–6mm) using tight-buffer or loose-tube configuration

  • Easy to install in limited spaces

  1. High Mechanical Strength

  • Reinforced with aramid yarn or fiberglass rod for >100N tensile strength

  • Flexible build supports repeated bending (min. radius: 20× cable diameter)

  1. Durable in Harsh Conditions

  • UV-resistant LSZH or PE jacket

  • Operating range: -40°C to +70°C

  • Optional water-blocking gel or dry tape protection

  1. Easy Installation

  • Lightweight (<10kg/km), suitable for fast deployment

  • Available in pre-terminated versions

  • Supports aerial, duct, or direct burial installation

  1. Excellent Optical Performance

  • Low attenuation (<0.4 dB/km @1310nm)

  • Reduced signal loss from macro/micro bends

Applications

  • Outdoor FTTH aerial installations

  • Indoor vertical cabling for high-speed connectivity

  • Backbone networks requiring stable and reliable optical transmission

Optical Characteristic:

Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.34 1550nm:≤0.21
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as require

Packing

1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath

1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath

The packaging is up to you, we can provide a variety of packaging.

Certificate:

1-4 Core FTTH Drop Cable with Steel Messenger LSZH Sheath

FAQ – Frequently Asked Questions

1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou—welcome to visit!

2. How do you ensure product quality?
Each fiber is tested before shipment. Free samples are available after price confirmation to verify our quality.

3. Do you accept small orders?
Yes, small or trial orders are welcome. We support new projects and understand that every big business starts small.

4. What’s the lead time?
Generally 3–7 working days, depending on the order quantity. We’ll arrange production promptly once payment is received.

5. Do you offer OEM service?
Absolutely. We can print your logo or customize packaging as needed. Your ideas are always welcome.
