Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Specifications
Brand Name :
Jiqian
Model Number :
GJYXCH/GYXFCH
Certification :
ISO 9001
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
4500 per month
Delivery Time :
3-5 days,it depends on order quantity
Packaging Details :
Wooden drum
Number of Conductors :
1/2/4
Application :
Outdoor aerial
Fiber type :
G652D/G657A1/G657A2
Manufacturer :
Yes
Outer Sheath :
LSZH
Fiber brand :
Fiberhome/YOFC/Corning
Description

Outdoor FTTH drop cable 1/2/4 Core GYJXCH

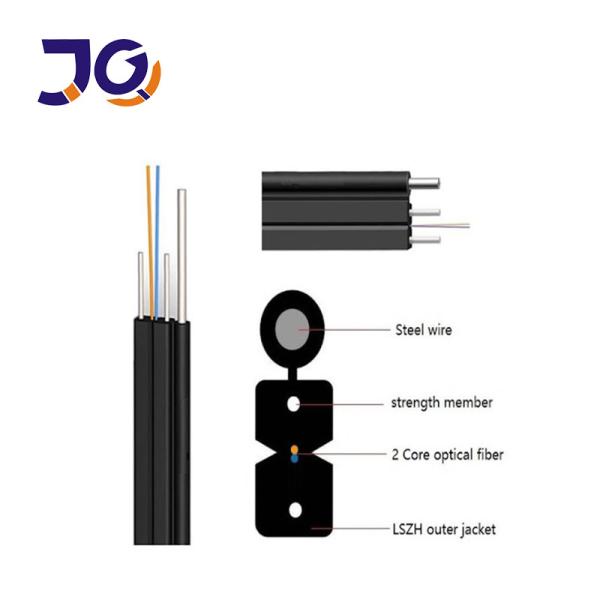

FTTH Cable directly connected to their homes, their bandwidth, wavelength and
transmission technology type are not restricted. The optical fiber unit id positioned
in the center. Two parallel strength member are placed at the two sides , then, the
cable is completed with a black HDPE /LSZH sheath.
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Application:
Adopted to indoor distribution.
As pigtail of communication equipment
Suitable for communication equipment
Can be installed conveniently
Cable construction details
Items
 FTTH Drop Cable
Number of fiber
 1/2/4
Fiber type
 G652D/G657A1/G657A2
Strength member
 Material 1.0mm steel wire
Material 0.45mm*2
Outer sheath
 Material LSZH
Color Black/White
Cable size (Height * width)
5.0(±0.1) mm ×2.0 (±0.2)mm
Cable weight
 20KG

Optical Characteristics

G.657A1G.65550/125μm62.5/125μm

Attenuation
(+20°C)

@850nm ≤3.5 dB/km≤3.5 dB/km
@1300nm ≤1.5 dB/km≤1.5 dB/km
@1310nm≤0.34 dB/km≤0.50 dB/km
@1550nm≤0.22 dB/km≤0.50dB/km


Bandwidth (Class A)

@850nm ≥500 MHz·km≥200 MHz·km
@1300nm ≥1000 MHz·km≥600 MHz·km
Numerical Aperture 0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc≤1260nm≤1480nm


Packing:
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
Certification:
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH

Company profile:
Outdoor FTTH Drop Cable 1/2/4 Core GYJXCH
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

FAQ

1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,Corning etc


4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.


7.What’s your payment terms?
A: We accept T/T,L/C 30% Deposit and 70% before shipment.
