GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation
GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation
GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation
GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation
GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation
GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation
Specifications
Brand Name :
JQ\OEM/Customize
Model Number :
FTTH drop cable
Certification :
CE/ISO9001/RoHS/FCC
Place of Origin :
Guangzhou, China
MOQ :
1kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
80000kilometers per month
Delivery Time :
2-5days
Packaging Details :
Carton box
Price :
Inquiry for price
Material of Sheath :
LSZH/PVC
Jacket colors :
Black,white etc.
Strength member :
steel wire/FRP Glass yarn
Fiber :
Singlemode, Multi-mode
Fiber Type :
G652D/G657A1/G657A2
Fiber brand :
YOFC/Fiberhome/ Corning/Fujikura
Messenger :
Two parallel steel wire or FRP
Description

GJYXCH FTTH Indoor Drop Cable 1 2 4 Core LSZH Single Mode Fiber Cable

Product Introduction:

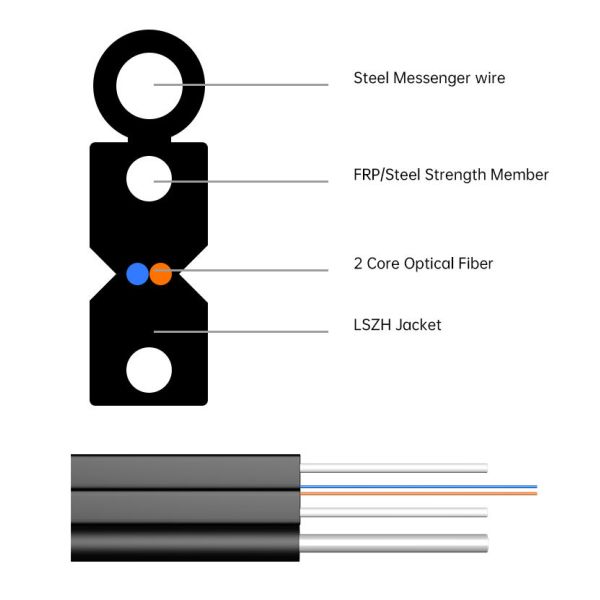

GJYXCH FTTH drop cable is designed for indoor fiber-to-the-home applications, featuring a compact structure with central fiber and steel strength members for reliable and stable signal transmission.

Key Features:

  • 1 / 2 / 4 core single mode fiber (G652D G657A1 G657A2)

  • Parallel steel wires for high tensile strength

  • Optional additional steel wire reinforcement

  • LSZH sheath for safe indoor use

  • Easy installation and stripping

Applications:

  • FTTH indoor installations

  • Wall-mounted or duct deployments

  • High-speed optical communication networks

  • Residential and commercial fiber access systems

Optical Characteristic:

Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.34 1550nm:≤0.21
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as require

GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation

GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation

Packing

GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation

GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation

The packaging is up to you, we can provide a variety of packaging.

Certificate:

GJYXCH FTTH Drop Fiber Optic Cable 1 to 4 Core G652D Single Mode Indoor LSZH Flat Cable Flexible Easy Installation

GJYXCH FTTH Drop Cable FAQ

Q1: What is GJYXCH cable used for?
A: It is used for indoor FTTH (fiber-to-the-home) installations.

Q2: What fiber types are available?
A: G.652D, G.657A1, and G.657A2 single mode fibers.

Q3: How many cores does it support?
A: It supports 1, 2, or 4 cores.

Q4: Is it safe for indoor use?
A: Yes, it uses LSZH sheath which is flame-retardant and low smoke.

Q5: Is it easy to install?
A: Yes, it is lightweight and easy to strip and install.
