1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH
1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH
1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH
1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH
1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH
1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH
Specifications
Brand Name :
JQ\OEM
Model Number :
FTTH drop cable
Certification :
CE/ISO9001/RoHS/FCC
Place of Origin :
China
MOQ :
1kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000kilometers per month
Delivery Time :
2-5days
Packaging Details :
Carton
Material of Sheath :
LSZH
Jacket colors :
Black,white etc.
Strength member :
Steel wire/FRP
Fiber :
Singlemode, Multi-mode
Fiber Type :
G652D Single mode or as your request
Fiber brand :
YOFC
Key words :
FTTH Drop Cable
Application :
network or FTTH
Cable type :
Self-supporting with messenger wire
Messenger :
Two parallel steel wire or FRP
Warranty Time :
30 years
Service :
OEM
Connector Polishing :
UPC
Keywords :
Drop Cable
Jacket Color :
Black,White
Connector Insertion Loss :
≤0.3dB
Jacket Material :
LSZH
Number Of Conductors :
≥ 10
Operating Temperature :
-40℃ to +70℃
Jacket Colors :
Black/ White/ Customized Color
Fiber Color :
Yellow
Crush Resistance :
1000N/100mm
Warranty :
15 Years
Description

GJYXCH FTTH Indoor Drop Cable

1/2/4 Core | G.652D / G.657A1 / G.657A2 | Single Mode | 1km / 2km | Indoor LSZH Sheath

Product Description:

The GJYXCH FTTH Drop Cable is designed for indoor fiber-to-the-home (FTTH) applications. A single-mode optical fiber (G.652D, G.657A1, or G.657A2) is placed at the center. Two parallel metal strength members (steel wires) are located on either side for structural integrity. An additional steel wire may be included for extra tensile strength. The outer jacket is made from Low Smoke Zero Halogen (LSZH) material, available in black or custom colors.

Key Features:

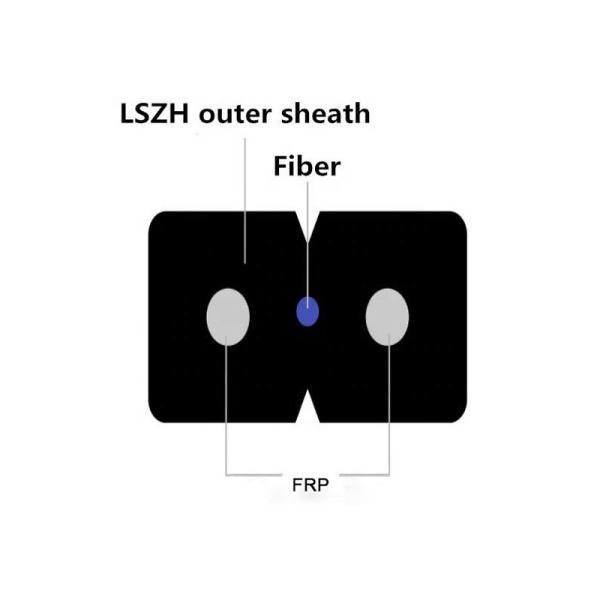

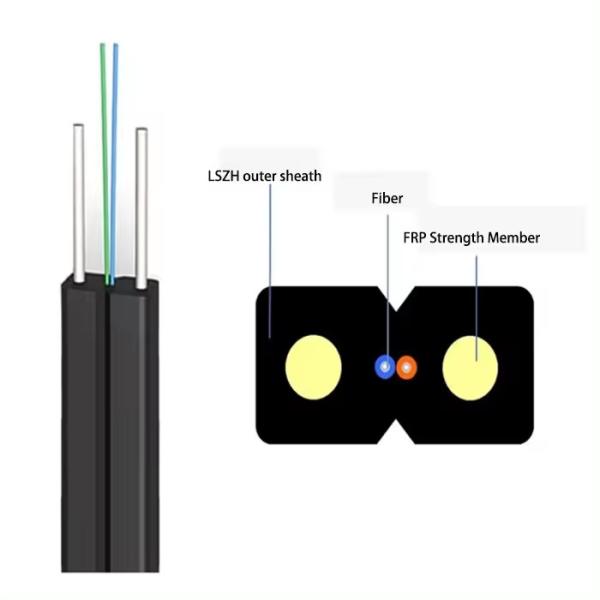

  • Structure: Central optical fiber + two parallel steel wires + optional additional steel wire + LSZH jacket

  • Fiber Types: G.652D / G.657A1 / G.657A2

  • Core Count: 1, 2, or 4 cores

  • Sheath Color: Standard black; optional white or other colors

  • Sheath Material: LSZH – flame-retardant, non-toxic, safe for indoor use

  • Installation: Easy to strip and install in ducts or along walls

1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH

Key Characteristics:

  1. Non-metallic reinforcement and layered structure provide excellent mechanical strength and temperature resistance.

  2. Tube filled with buffer grease for fiber protection and moisture resistance.

  3. Glass yarn enhances tensile strength and resists axial stress.

  4. Water-blocking compound prevents moisture ingress.

  5. Designed to resist rodent damage.

Applications:

  1. Suitable for outdoor aerial installation.

  2. Ideal for FTTH (Fiber to the Home) deployments.

  3. Used in high-speed indoor optical links.

  4. Supports stable operation in high-performance optical networks.

Optical Characteristic:

Fiber count
1F/2F/4F
Attenuation
1310nm:≤0.34 1550nm:≤0.21
Color Of fiber
Blue Orange Green Brown
Fiber Type
G652D/G657A1/G657A2
Strength member
Steel wire/FRP/KFRP
Outer sheath
LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions
2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range
-20 ℃ to + 70 ℃
Installation temperature range
-0 ℃ to + 60 ℃
Transport and storage temperature range
-20 ℃ to + 70 ℃
Tension Load (N)
Short term :800N Long term :500N
Crush Load(N)
Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius
30 x OD
Minimal operation bending radius
15 x OD
Cable marking
The marking length 1meter apart , as require

Packing

1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH

1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH

The packaging is up to you, we can provide a variety of packaging.

Certificate:

1-4 Core GJYXCH FTTH Indoor Drop Cable G652D Single Mode LSZH

FAQ

1. Are you a trading company or a manufacturer?
We are a direct manufacturer with 10 years of experience, specializing in fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—welcome to visit!

2. How do you ensure product quality?
Each fiber is 100% tested before delivery. Free samples are available after price confirmation for quality evaluation.

3. Do you accept small orders?
Yes, small orders are welcome. We support new projects, knowing that big business often starts small.

4. What’s your delivery time?
Normally 3–7 working days, depending on the quantity. We’ll arrange shipment as soon as payment is received.

5. Do you offer OEM service?
Yes, OEM is available. We can print your logo on products or packaging. Custom ideas are welcome.
