Specifications
Model Number :
12 cores fiber optic distribution box
Type :
Fiber optic terminal box
Place of Origin :
Zhejiang, China
Brand Name :
customize
Use :
FTTX ODB NAP FTTH
Warranty Time :
3 year
Network :
Wireless Lan, None, Ip, wifi, 4g, 3G
Product name :
12 cores fiber optic distribution box
Application :
Telecommunication
Material :
PC+ABS
Dimensions :
345*210*100
Function :
Distribution Fiber System (FTTH)
Certification :
Ip65
Weight :
1.665kg
Max Capacity :
Splice 96 Fibers, Splitter 3pcs of 1x8(SC) Steel tube type
Keywords :
24 cores fiber optic distribution box
Reinforced Adapter :
24pcs SC/UPC or SC/APC
Packaging Details :
blister packing >carton box>outer carton box
Port :
Ningbo or Shanghai
Supply Ability :
400000 Piece/Pieces per Month
MOQ :
50 pieces
Price :
$6.90/pieces >=50 pieces
Description
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

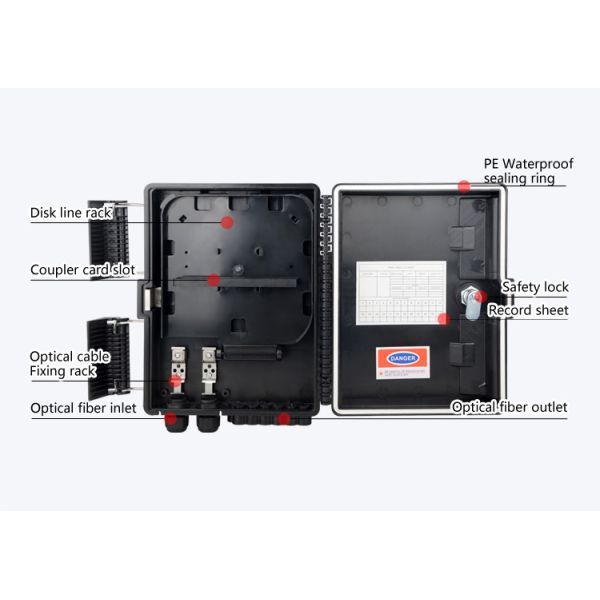

3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification
1. Environmental requirement
Working temperature: -40ºC~+85ºC
Relative humidity: ≤85% (+30ºC)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.3dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture,
no flashover; U≥3000V

16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
Product name
Fiber Optic Distribution Box
IP Rate
IP65
Product Model
12 cores
Product Size
270*200*80 mm
Ports
2 inlet port 15mm
12 out port 11.5mm
Packing Quantity
15 pcs / carton
50*29*64cm 18.1kg
Compatible with
1:8 cassette splitter or
12 core adapter pigtail
Material
PC ABS
Installation Type
Wall / pole-mounted
Net weight
1.35 kg
Accessories
1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 12 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece
6. Inlet accessories：1 set
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
16 Core ODN Fiber Optic Distribution Terminal Box for FTTH and Sturdy PC ABS Material
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
