3 Time Telecommunication Plastic 8 Cores Distribution Box for Fiber Optic Installation

Specifications

Model Number :

8 cores fiber optical Terminal box

Type :

Fiber optic terminal box

Place of Origin :

Zhejiang, China

Brand Name :

customize

Use :

FTTX ODB NAP FTTH

Warranty Time :

3 year

Network :

Product name :

8 cores fiber optical Terminal box

Application :

Telecommunication

Material :

PC+ABS

Color :

Black

Function :

Distribution Fiber System (FTTH)

Certification :

Ip65

Weight :

0.78kg

Max Capacity :

Splice 8 Fibers

Keywords :

8 core Fiber Optical Terminal CTO/NAP Distribution box

Cable entrance :

2 in/2 out

Packaging Details :

blister packing >carton box>outer carton box

Port :

Ningbo or Shanghai

Supply Ability :

400000 Piece/Pieces per Month

MOQ :

50 pieces

Price :

$6.90/pieces >=50 pieces

Description

Description:

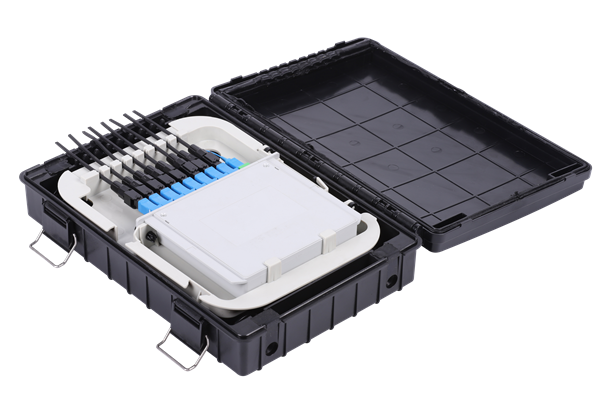

8 Cores Fiber Optic Distribution box/ FTTH Box
This distribution box integrates the splitting and distribution function in one distribution box. So that it can realize the splicing and branch of the optical cable. The unique design of the box-shaped structure of this box can be used as a fiber
splitting or splice box, it’s easy for future expansion and maintenance. It is suitable for the cable connection of the optical
communication equipment. It can keep internal components. Away from outdoor environmental damage. Its flexible configuration supports 2 cables in and 2 cables out. Good performance is useful in harsh environment. One 1x8 PLC Splitter can be installed, and through the Splitter, the signal is drawn by the optical fiber jumper to realize the optical fiber distribution function. Also suitable for fiber cable and pigtails protective connection.

Features:
• Outdoor application and good UV resistance
• Water-proof design with IP-68 Protection level.
• Double sided drop cable outlets drop, cable can lead in at both sides, easy to deploy
• 4 ports for cable splice and 8pots for drop cable.
• one 1x8 PLC splitter can be installed
• Stainless anti-rust bolts and nuts. Easy for maintenance and expansion, neat cabling
• Fiber bend radius control more than 40mm.
• 180 degree access with buckled lock structure.

Specification

Max Capacity	Splice 8 Fibers
Max Capacity		PLC Splitter 1pcs of 1×8 Module type
Material	ABS+PC
Size: L×W×H(mm)	250×190×58mm
Weight (g)	780g
Color	Black
Cable entrance	2 in/2 out
