Specifications
Model Number :
Termination splice box
Type :
Fiber optic terminal box
Place of Origin :
Zhejiang, China
Brand Name :
customize
Use :
FTTX ODB NAP FTTH
Warranty Time :
3 year
Network :
Wired LAN, None, wifi, 4g, 3G
Product name :
fiber optic distribution box
Application :
Telecommunication
Material :
PC+ABS
Dimensions :
253*198*100 (MM)
Function :
Distribution Fiber System (FTTH)
Certification :
Ip65
Adapter Capacity :
16 ports
Splitter :
Mini plc splitter, cassette splitter
Keywords :
fiber optic distribution box
Reinforced Adapter :
sc
Packaging Details :
blister packing >carton box>outer carton box
Port :
Ningbo or Shanghai
Supply Ability :
400000 Piece/Pieces per Month
MOQ :
10 pieces
Price :
$10.00/pieces 10-999 pieces
Description
Description:

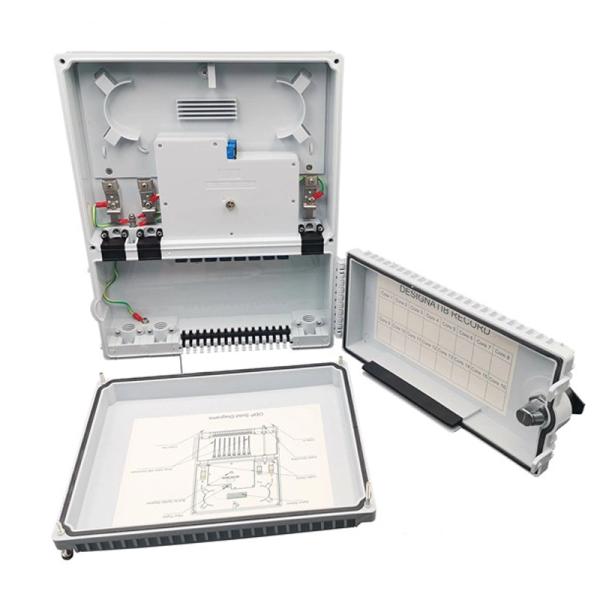

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

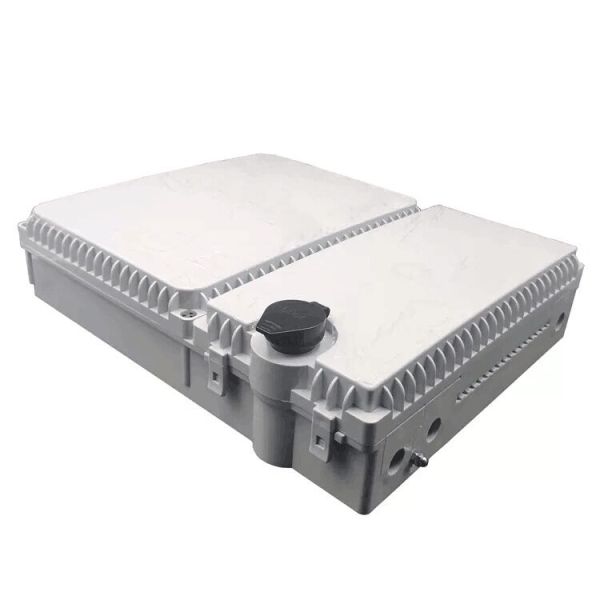

1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Specification
1. Environmental requirement
Working temperature: -40ºC~+85ºC
Relative humidity: ≤85% (+30ºC)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.3dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2MΩ/500V (DC); IR≥2MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture,
no flashover; U≥3000V

Specification
Material
Size
Max Capacity
Nos of
Adaptor
Wight
Color
ABS/PC
A*B*C(MM) 240*208*117
Splice 16 Fibers (1trays,
16fiber/tray)
2pc of 1*8 PLC Splitter
16pc of SC
1.2kg
Grey/bla
Product Description
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking

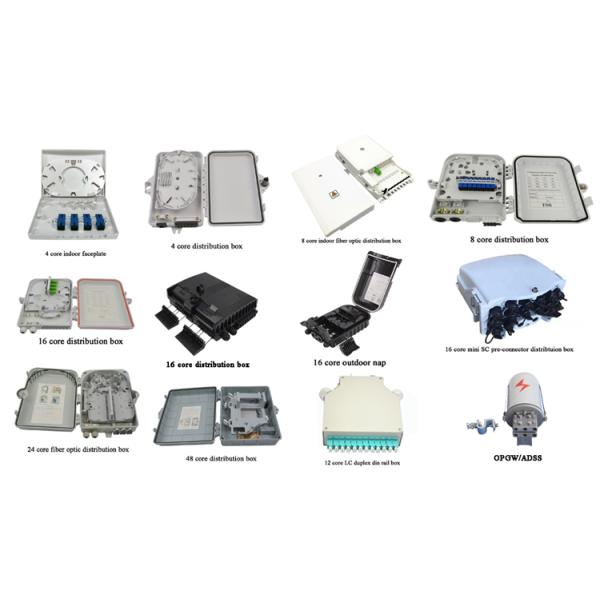

Main Products
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Mini Type PLC Splitter
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Cassette Type PLC Splitter
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Rack Mounted Type PLC Splitter
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Insertion Type PLC Splitter
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Tray AssemblyType PLC Splitter
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Other goods
Company Profile
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Company Profile
Ningbo Kehao Hanxing Photoelectric Technology Co., Ltd was founded in 2002, which has been focusing on the field of optical and electrical communications for 20 years.
As the founders, the couple Chen Bo and Reng Chunfei started their own business at the beginning and now the team has 500 members.
1.Factory Direct, Best Price
At the same price, we offer the highest quality products. 2.Delivery Time: 7-10 Days
The company has a large number of stable employees over ten years. To ensure that the delivery time can be guaranteed at any time.
3.High Quality:
IQC-PQC-FQC-OQC.100% qualified. 4.Satisfactory Service:
Special team responsible for after-sales service,Includes installation instructions and technical support.Response within 1
hour,solution within 8 hours, after -sale service
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Production Workshop
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Product packaging
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
Why Choose Us
Two doors 3 in 8 core 16 core box odp solid fiber optical distribution point for networking
FAQ
Q1. Can I have a sample order for this product? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time? A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for sample order? A: Low MOQ, 1pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for the product? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q6: Do you offer guarantee for the products? A: 30 Years' Guarantee for fiber optic PLC splitter 25 Years' Guarantee for fiber optic cable
