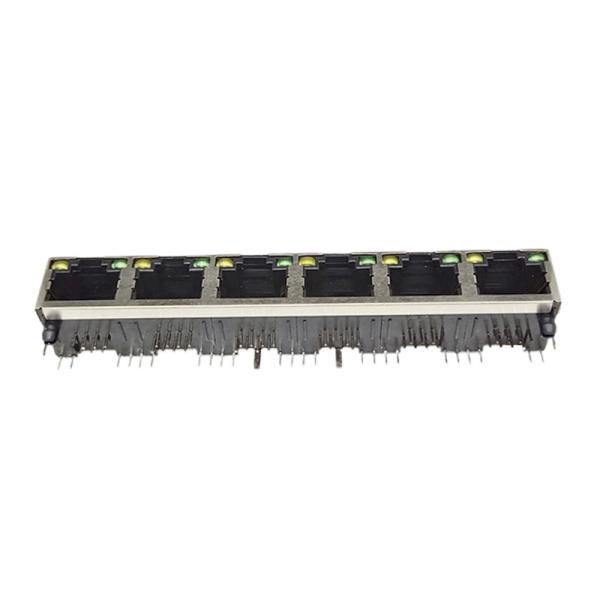

PCB RJ45 Alternative Connector 1x6 RJ45 8P8C Modular Connector With Led
PCB RJ45 Alternative Connector 1x6 RJ45 8P8C Modular Connector With Led
Specifications
Brand Name :
XTKCONN
Model Number :
RJ45
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
500pcs
Price :
Negotiable price
Payment Terms :
L/C, T/T,Payyal
Supply Ability :
1KK pcs
Delivery Time :
5-7 days
Packaging Details :
inner package:in reel; Outer Package: reel in Carton
Application :
PCB
Material :
ABS/PBT/PA66/LCP
Durability :
800 mating cycles min
Voltage Rating :
125V
Mating/Unmating Force :
2.2KG.F MAX
LED Option :
Yellow/Green LEDs
Description

Alternative RJ45 PCB Connector 1x6 With Led 8P8C PCB Jack Connector

Specification

Electrical
1.Current Rating
1.5 amps
2.Voltage Rating
125vac
3.Insulation Resistance
500 MΩmin
4.Contact Resistance
30 MΩmax
5.Withstanding Voltage
AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1.Retention Strength
7.7KG.F min between jack and plug
2.Durability
750 mating cycles min
Material
1.Housing
PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
3.Shield
0.20~0.25mm thickness brass with tin plated
4.Gold Plating
1u ,3u 6u 15u 30u 50u
LED Specification
Standard LED Color
LED Wavelength
Forward (V MAX)
Typical (V TYP)
Green
560-580 nm
2.5V
2.1-2.2V
Yellow
580-610 nm
2.5V
2.1-2.2V
Operating and Storage Temperature
Operating Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK,
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.

PCB RJ45 Alternative Connector 1x6 RJ45 8P8C Modular Connector With Led

Applications

GPIB Expanders and GPIB Isolators

Optical Storage Media

Data Acquisition Products

Matrix Switching Systems

Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays.
