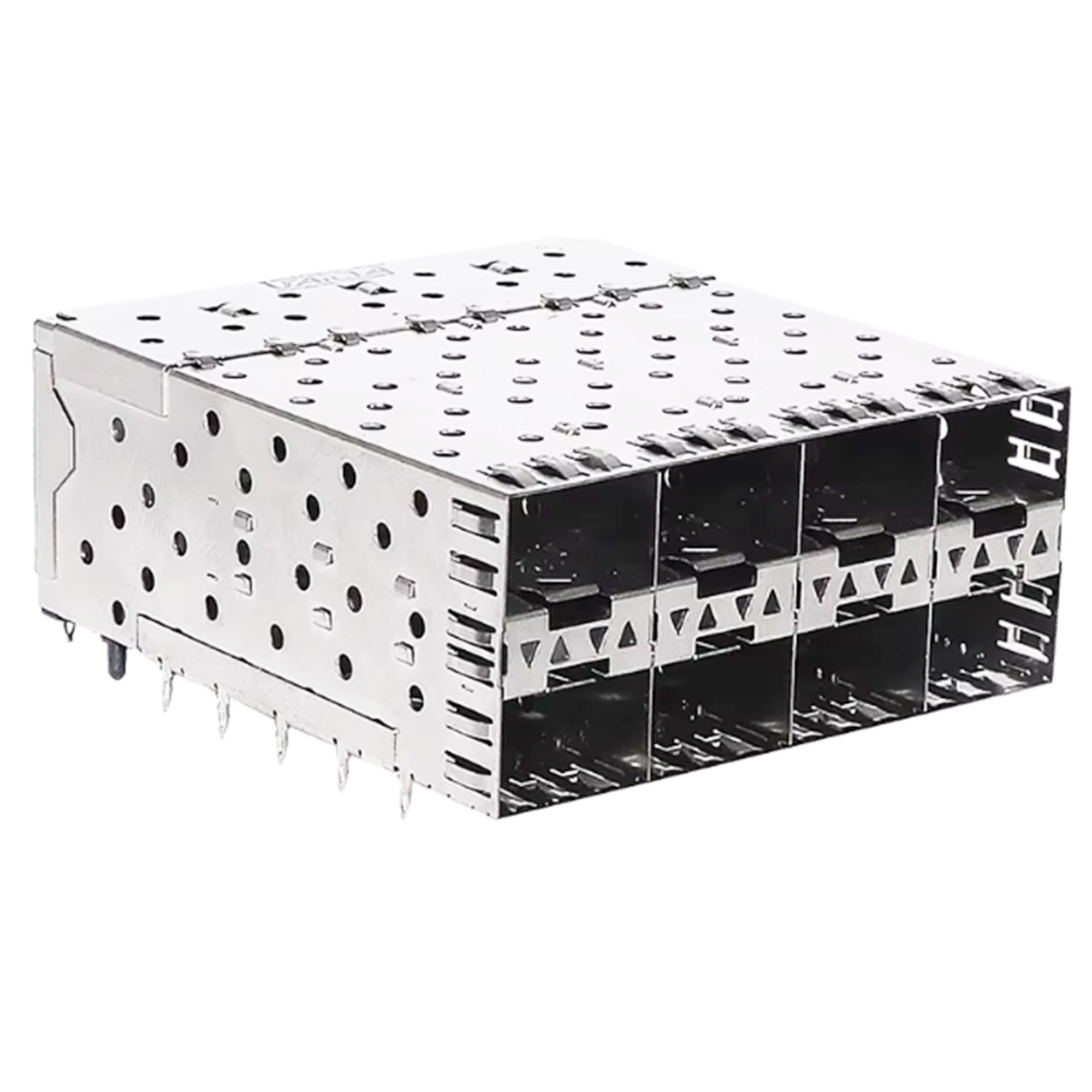

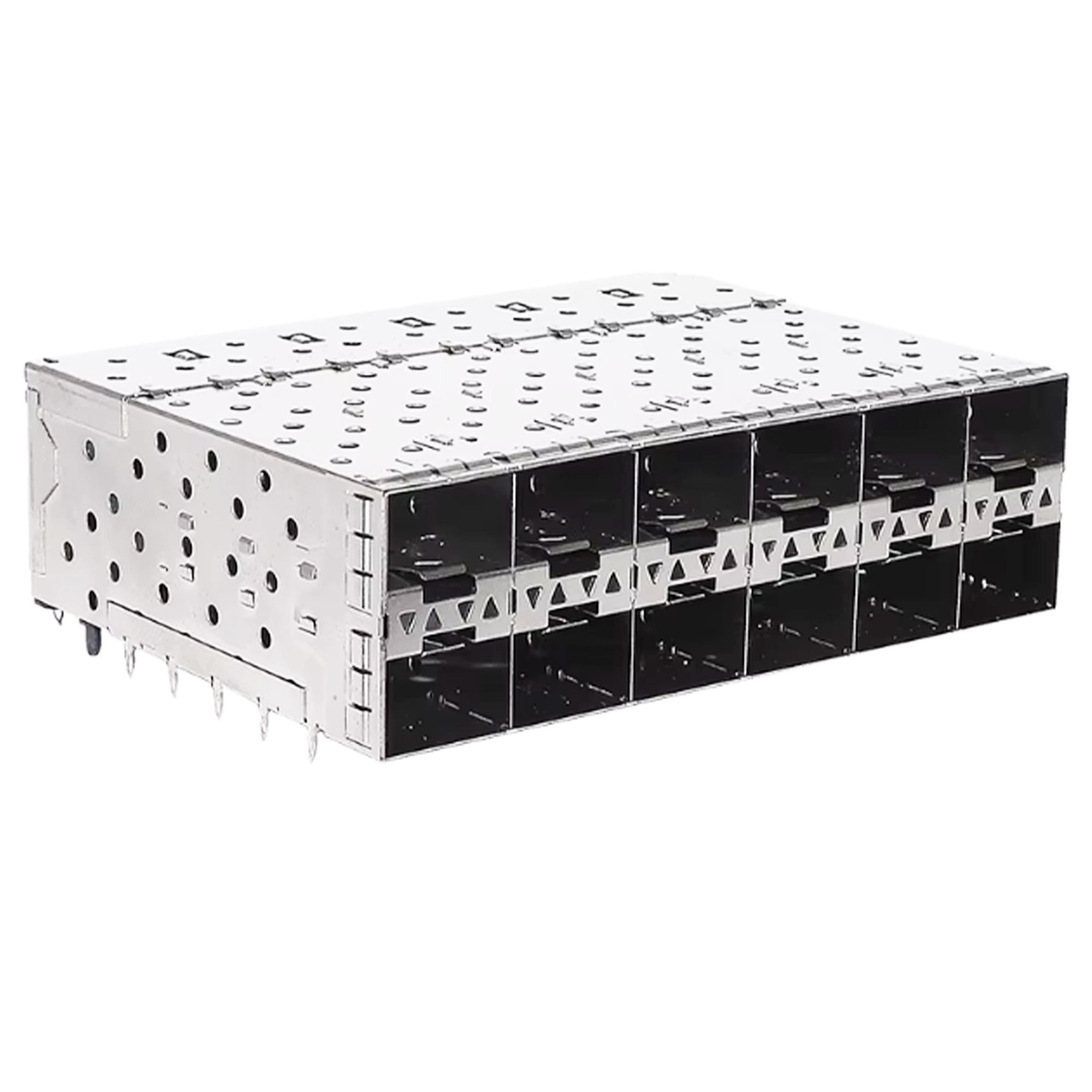

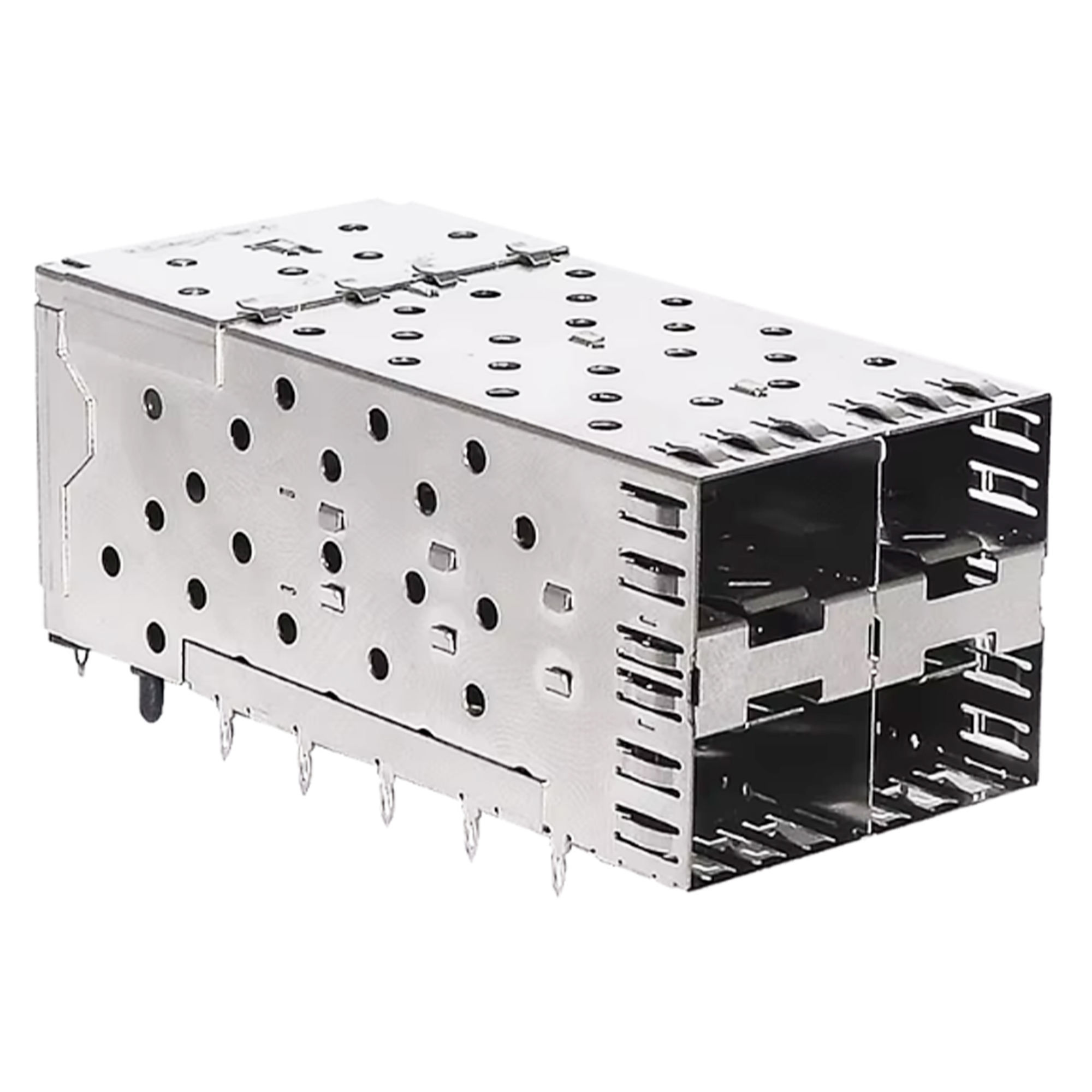

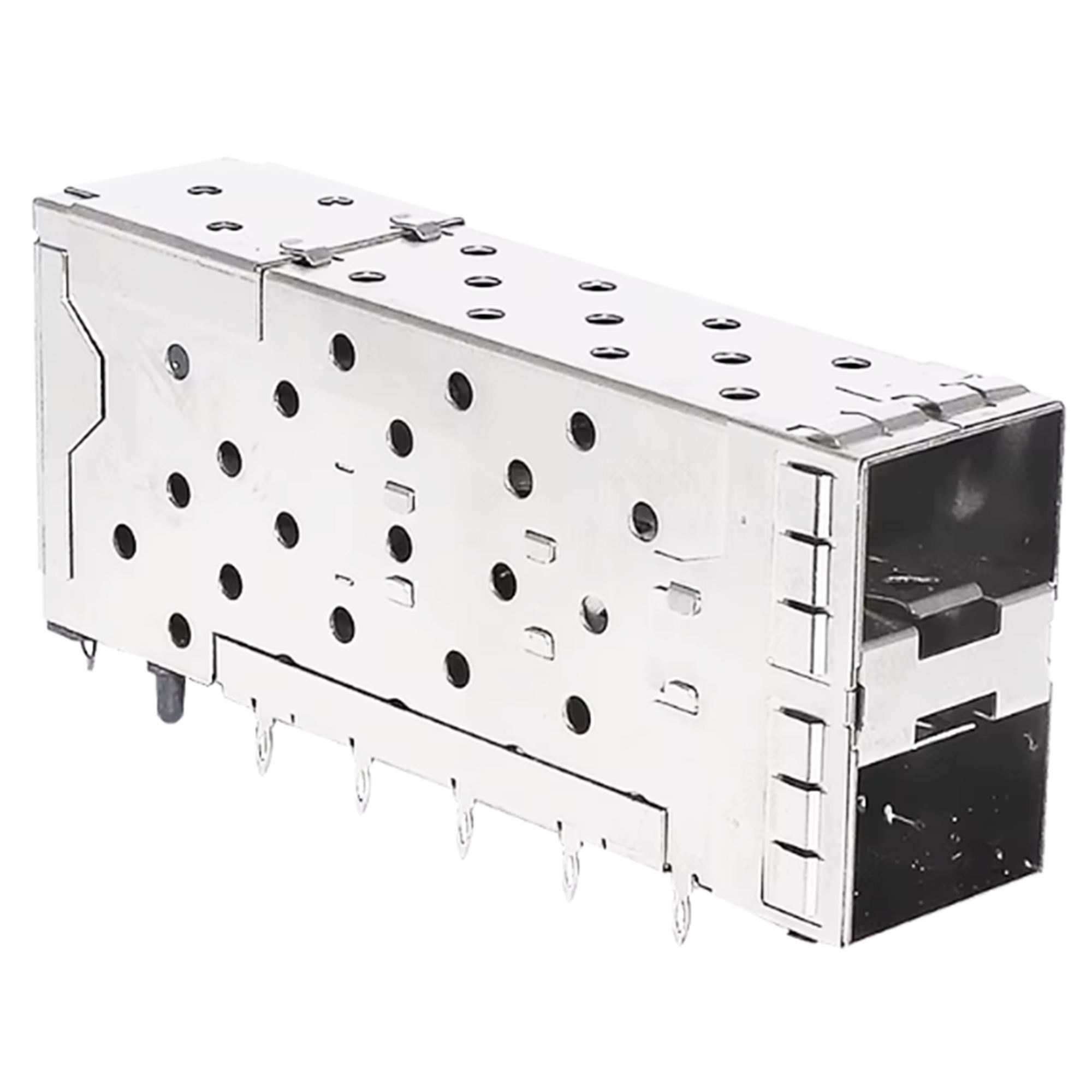

SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding
Specifications
Use :
FTTX
Size :
Custom size
Material :
Stainless Steel
Brand Name :
XTK
Model Number :
SFP
Certification :
CE,SGS,ROHS,ISO9001
Place of Origin :
Guangdong,China
MOQ :
1pcs
Price :
Negotiable price
Payment Terms :
L/C,T/T,Payyal
Supply Ability :
1KK pcs
Delivery Time :
5-7 days
Packaging Details :
vacuum package,boxes in carton
Fiber Type :
Single Fiber Single Mode
Application :
FTTH FTTxFTTB Network
Network :
TCP, Gprs, Wi-Fi
Description

SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding



Description


Our SFP Cage 2x2 with Light Pipe & Dust Cover​ is a fully integrated, hot-swappable I/O connector system engineered for high-density networking equipment. Designed to accept SFP, SFP+, and SFP28 fiber optic transceiver modules, this 2x2 stacked cage delivers four high-speed ports in a compact footprint — maximizing port density while minimizing PCB real estate.

Parameter

Specification

Product Name

SFP Cage 2x2 with Light Pipe & Dust Cover

Data Rate Support

1.25 Gbps (SFP) / 10.3125 Gbps (SFP+) / 25.78 Gbps (SFP28 backward compatible)

Port Configuration

2x2 Stacked (4 ports total)

Connector Type

20-position female receptacle, 0.8mm pitch

Contact Material

Phosphor bronze, gold flash over nickel (30µ" optional)

Cage Shell Material

Copper alloy, nickel plated

Light Pipe

Integrated PMMA light guide, transmits 2 LED channels per port (Link + ACT)

Dust Cover

UL94 V-0 rated polymer, spring-loaded auto-close mechanism

EMI Gasket

Beryllium copper spring fingers – top, left, right, bottom

Mounting Style

Press-fit compliant pins (Ø0.64mm) / optional SMT solder tail

Mating Cycles

≥100 insertions

Operating Temperature

-40°C to +85°C

Compliant Standards

SFF-8431, INF-8074i, RoHS 2.0, REACH, UL94 V-0

Compatible Modules

SFP / SFP+ / SFP28 transceivers, DAC, AOC

MOQ

500 pcs

Sample Lead Time

5–7 working days

Mass Production Lead Time

3–4 weeks

Customization

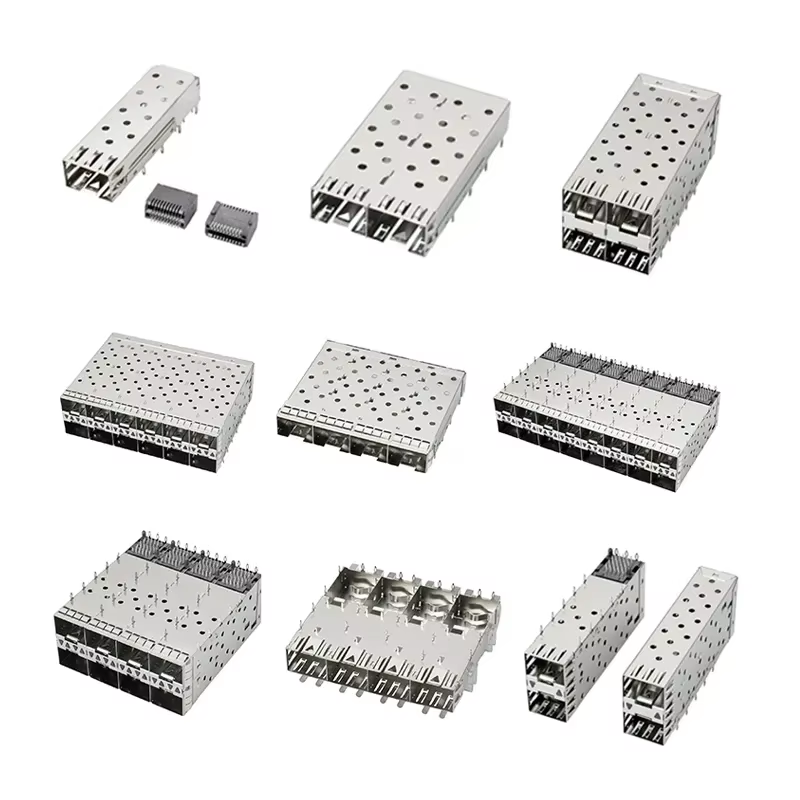

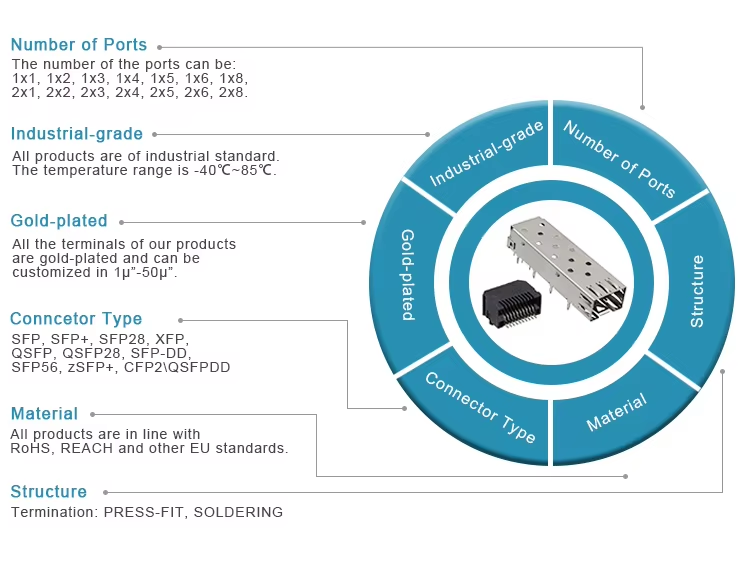

Cage height, port count (1xN / 2xN), light pipe color, belly-to-belly, custom footprints

The built-in light pipe​ eliminates the need for separate LED light guides, channeling status indicators (Link, Activity, Speed) directly from the PCB to the front panel. The integrated dust covers​ automatically protect unpopulated ports from dust, moisture, and ESD, significantly extending module lifespan in data center and industrial environments. Combined with full-perimeter EMI spring fingers, this cage ensures signal integrity and regulatory compliance (FCC/CE) even in dense multi-port configurations.

SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding

SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding

Key Advantages


✅ Space-Saving 2x2 Stacked Architecture

✅ Maintenance-Free Port Monitoring

✅ Automatic Port Protection

✅ Best-in-Class EMI Performance

✅ Seamless Cross-Brand Replacement

SFP Cage 2X2 with Light PIPE SFP Connector Dust Cover Fiber Optic Module Shielding

Typical Applications


Data center top-of-rack (ToR) and leaf-spine Ethernet switches

Enterprise L2/L3 managed switches (24-port / 48-port models)

Network interface cards (NICs) for servers and storage arrays

5G fronthaul/backhaul transport equipment

Industrial Ethernet switches (DIN-rail, rack-mount)

Network security appliances: firewalls, load balancers, IDS/IPS

Fiber Channel SAN directors and switches.



FAQ


Q: How soon can we receive the quotation?

A: If the specification is confirmed, our quotation can be provided within 24 hours.


Q: Can you provide samples for evaluation?
A: Yes, samples can be sent to you for evaluation.

Q: How long does it take for an order to be processed and shipped?
A: When items are in stock, we usually ship them out in the next 3 to 7 business days after receiving an order.

Q: What is your trade term?
A: FOB, FCA, CFR, CIF, EXW, DDU are available. We can also help you choose the most favorable and efficient shipping method.

Q: What is the payment term?
A: ONLINE (TRADE INSURANCE), VISA, T/T, Western Union, MoneyGram, etc.

Q: How long is the Warranty period?
A: The product comes with a 1-year limited warranty.

Q: Can you provide OEM & ODM service?
A: Yes, our professional R&D team will help make your ideas come true.
