1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear
1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear
1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear
1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear
Specifications
Brand Name :
MENZEH GEARS
Model Number :
1016275 9111033 2031037 2031497 2031036 EX60-2
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Hub
Part number :
1016275 9111033 2031037 2031497 2031036
Used For :
EX60-2
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port :
Huangpu Guangzhou
After Warranty :
Video technical support Online support Spare parts
Description

1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear

Part Name Gear Ring
Part No. 1016275 9111033 2031037 2031497 2031036
Used For EX60-2
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

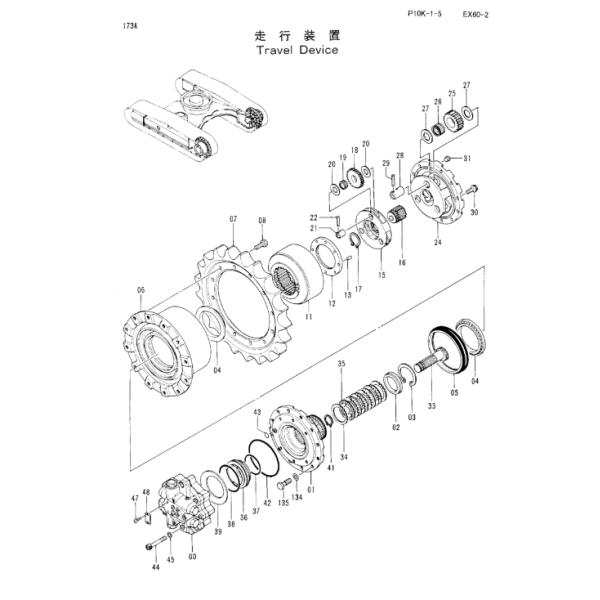

Pos. Part No Qty Parts name Comments
00-48. 9111033 [2] TRAVEL DEVICE ASS'Y
0 9099449 [1] MOTOR;OIL
1 1016273 [1] HOUSING
2 4192640 [1] SPACER
3 991728 [1] RING;RETAINING
4 4192639 [2] BRG.;ROL.
5 4082631 [1] SEAL;GROUP
6 1016274 [1] DRUM
7 1012495 [1] SPROCKET
8 J931635 [12] BOLT
11 2031521 [1] GEAR;RING
12 3036163 [1] NUT
13 4148012 [1] PIN;KNOCK
15 2031497 [1] CARRIER
16 3054866 [1] GEAR;SUN
17 991345 [1] RING;RETAINING
18 3054865 [3] GEAR;PLANETARY
19 4271103 [3] BRG.;NEEDLE
20 4271349 [6] PLATE;THRUST
21 4271101 [3] PIN
22 4169566 [3] PIN;SPRING
24 1016275 [1] CARRIER
25 3054864 [3] GEAR;PLANETARY
26 4183108 [3] BRG.;NEEDLE
27 4269294 [6] PLATE;THRUST
28 4271102 [3] PIN
29 4169567 [3] PIN;SPRING
30 J011230 [12] BOLT;SEMS
31 4245797 [3] PLUG
33 2031498 [1] SHAFT;PROP.
34 3036164 [6] PLATE
34 3064191 [6] PLATE
35 3036165 [5] PLATE;FRICTION
35 3064192 [5] PLATE;FRICTION
36 3036166 [1] PISTON
37 4150683 [1] D-RING
38 4150684 [1] D-RING
39 3017067 [1] SPRING;DISC
41 929231 [1] RING
42 4154877 [1] O-RING
43 4506418 [1] O-RING
44 4192042 [6] BOLT;SOCKET
45 A590914 [6] WASHER;SPRING
47 M492564 [2] SCREW;DRIVE
48 3061377 [1] NAME-PLATE
134 J222016 [20] WASHER
135 4248606 [20] BOLT

1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear

1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear

1016275 9111033 2031037 2031497 2031036 EX60-2 Travel Motor Gear Ring Final Drive Ring Gear



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
