3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel
3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel
3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel
3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel
Specifications
Brand Name :
MENZEH GEARS
Model Number :
2034834 2036775 2043851 3101423 EX200-3 EX200-3C EX200-3E EX200-5
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Carrier No.1 Sub
Part Number :
3521120-0031 3521120-0053 3521120-0062 6333700383 R250LC3 R290LC3 R290LC3H R290LC3LL
Used For :
R250LC3 R290LC3 R290LC3H R290LC3LL
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/TNT/UPS/SEA/AIR Shipping
Port :
Huangpu Guangzhou
High Light :
3521120-0031 3521120-0053 3521120-0062 6333700383 R250LC3 R290LC3 R290LC3H R290LC3LL Carrier No.1 Sub
After Warranty :
Video technical support Online support Spare parts
Description

3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel

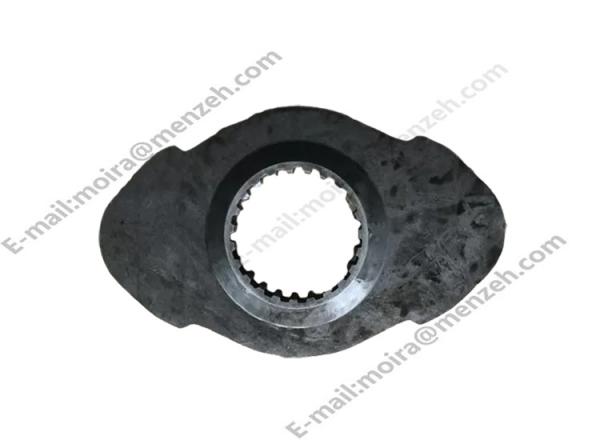

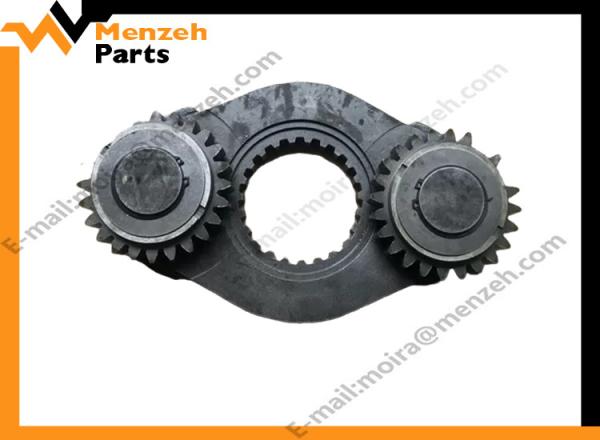

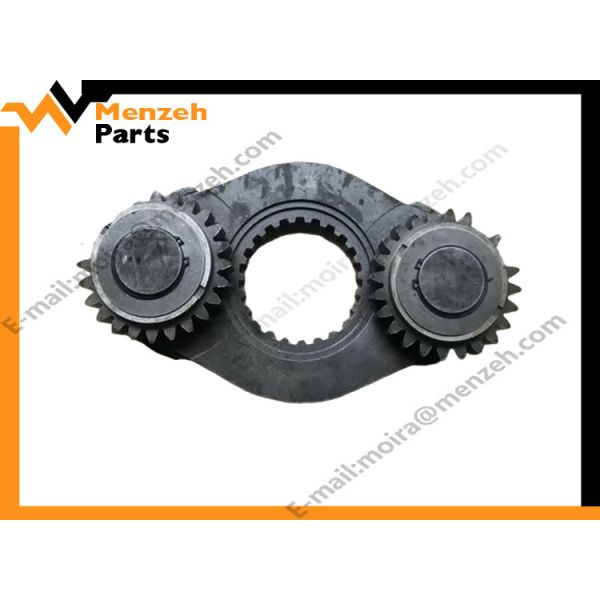

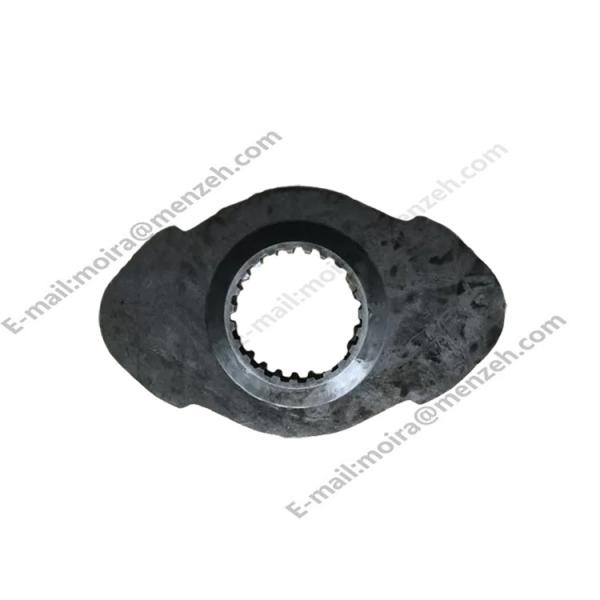

Part Name Carrier No.1 Sub
Part Number 3521120-0031 3521120-0053 3521120-0062 6333700383
Used For R250LC3 R290LC3 R290LC3H R290LC3LL
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts

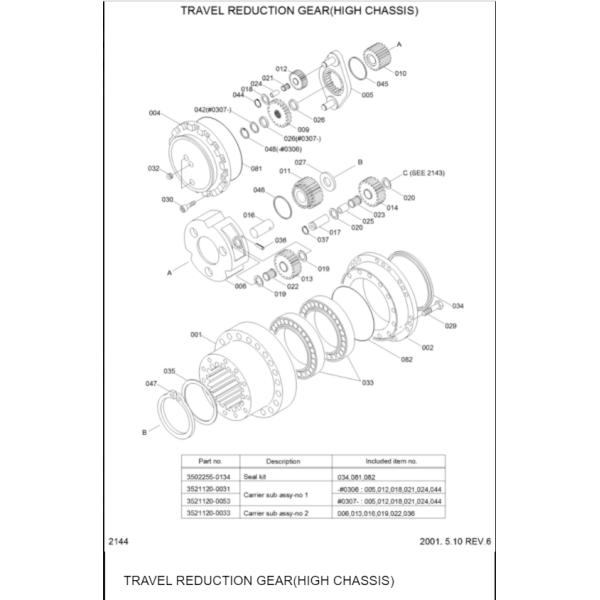

Pos. Part No Qty Parts name Comments
N*-2. 3550D-01A [1] T/REDUCTION GEAR
N*-2. 3550D-01B [1] T/REDUCTION GEAR
1 3523170-0045 [1] GEAR-RING
2 3523310-0160 [1] HOUSING
4 3523150-0334 [1] COVER-SIDE
4 3523150-0488 [1] COVER-SIDE
5 3524120-0052 [1] CARRIER-NO1
6 3524120-0057 [1] CARRIER-NO2
9 3503190-0109 [1] GEAR-SUN,NO1
10 3503190-0110 [1] GEAR-SUN,NO2
11 3503190-0143 [1] GEAR-SUN,NO3
12 3503190-0117 [2] GEAR-PLANE,NO1
13 3503190-0113 [3] GEAR-PLANE,NO2
14 3503190-0141 [4] GEAR-PLANE,NO3
16 3503540-0126 [3] PIN-NO2
17 3503540-0122 [4] PIN-NO3
18 3524750-0190 [2] PLATE-SIDE
18 3524750-0370 [2] PLATE-SIDE
19 3524750-0179 [6] PLATE-SIDE
20 3524750-0219 [8] PLATE-SIDE
21 PKT507028 [2] CAGE-NEEDLE
22 PKT506532X [3] CAGE-NEEDLE
23 PBN506006HSCX [4] CAGE-NEEDLE
24 P1R455028 [2] RING-INNER
25 3503370-0241 [4] BUSHING
26 35050BAA-024 [1] RING-THRUST
26 35050BAA-024 [2] RING-THRUST
27 3503160-0105 [1] RING-THRUST
29 OSBM16100 [28] SCREW-HEX
30 OSBM820 [12] SCREW-HEX SOC HD
32 OBP12 [3] PLUG
33 PAC6037 [2] BEARING
K034. P353 [1] SEAL
N035. 3526330F0028 [1] SHIM(2.5T)
N035. 3526330G0028 [1] SHIM(2.65T)
N035. 3526330H0028 [1] SHIM(2.7T)
36 OSPV425 [3] PIN-SPRING
37 ORR42 [4] RING-SNAP
42 35050BAA-042A [1] SHIM(0.5T)
42 35050BAA-042B [1] SHIM(1.0T)
44 OSR45 [2] RING-SNAP
45 PWR95 [1] CLIP
46 PWR130 [1] CLIP
47 PSR300 [1] RING-SNAP
48 OSR40 [1] RING-SNAP
K081. PCPP323 [1] O-RING
K082. PCPP378 [1] O-RING
S . 3521120-0031 [1] CARRIER SUB-NO1 SEE ILLUST
S. 3521120-0053 [1] CARRIER SUB-NO1 SEE ILLUST
S. 3521120-0033 [1] CARRIER SUB-NO2 SEE ILLUST
K. 3502255-0134 [1] SEAL KIT(034,081,082) SEE ILLUST

3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel

3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel

3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.

3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel

3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel3521120-0031 3521120-0053 3521120-0062 6333700383 Carrier No.1 Sub R250LC3 R290LC3 R290LC3H R290LC3LL Excavator Travel
