SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier
SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier
SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier
SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier
Specifications
Brand Name :
MENZEH GEARS
Model Number :
SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Planet Carrier
Part Number :
SA7117-34340 VOE1650535 SA7117-34350
Used For :
EC210B EC240B EC240C
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/TNT/UPS/SEA/AIR Shipping
Port :
Huangpu Guangzhou
High Light :
SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier
After Warranty :
Video technical support Online support Spare parts
Description

SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier

Part Name Planet Carrier
Part Number SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C
Used For EC210B EC240B EC240C
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts

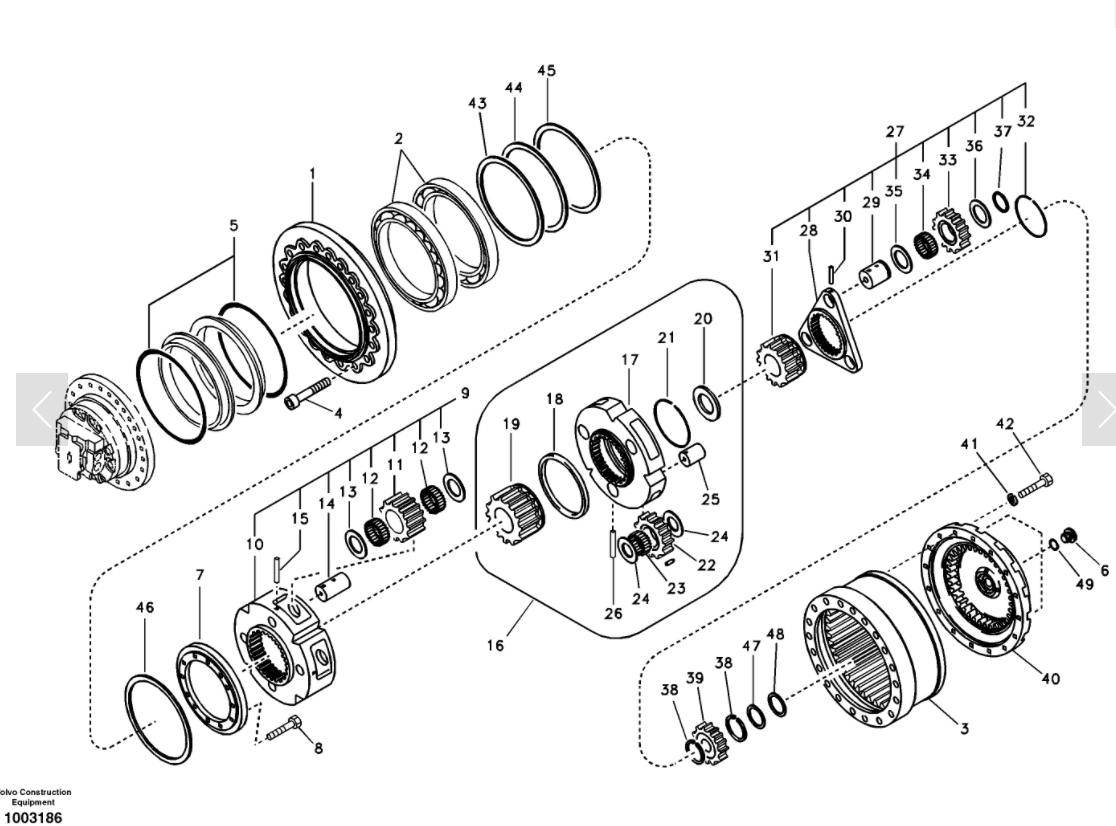

Pos. Part No Qty Parts name Comments
VOE14528735 [1] Gearbox
1 VOE14528715 [1] Housing
2 VOE14538940 [2] Bearing
3 SA7117-34120 [1] Ring gear
4 SA9016-21818 [20] Hex. socket screw
5 VOE14528720 [1] Seal
6 VOE14883847 [3] Plug
7 SA7117-34190 [1] Retainer
8 VOE997446 [12] Hexagon screw
9 SA7117-34200 [1] Planet carrier
10 SA7117-34210 [1] Carrier
11 SA7117-34220 [4] Planetary gear
12 SA7117-34230 [8] Needle bearing
13 SA7117-34240 [8] Washer
14 SA7117-34250 [4] Pin
15 VOE13951991 [4] Spring pin
16 VOE14528721 [1] Planet carrier
17 VOE14528722 [1] Carrier
18 SA1036-00310 [1] Thrust ring
19 SA7117-34280 [1] Gear
20 SA8230-21020 [1] Thrust ring
21 SA7117-34290 [1] Retaining ring
22 SA7117-34300 [3] Planetary gear
23 SA7117-34310 [3] Needle bearing
24 VOE14556491 [6] Washer
25 SA7117-34330 [3] Pin
26 SA9325-06012 [3] Spring pin
27 SA7117-34340 [1] Planet carrier
28 SA7117-34350 [1] Planet carrier
29 SA7117-34370 [3] Pin
30 SA9325-06012 [3] Spring pin
31 SA7117-34360 [1] Gear
32 SA7117-34440 [1] Retaining ring
33 SA7117-34420 [3] Planetary gear
34 SA7117-34380 [3] Needle bearing
35 SA7117-34390 [3] Washer
36 SA7117-34400 [3] Washer
37 SA9541-01034 [3] Retaining ring
38 SA1036-00290 [2] Thrust ring
39 SA7117-34430 [1] Gear
40 VOE14601854 [1] Cover
41 VOE955922 [16] Spring washer
42 VOE993025 [16] Hexagon screw
43 SA7117-34140 [1] Shim 0.1t
44 SA7117-34150 [1] Shim 0.3t
45 SA7117-34160 [1] Shim 0.5t
46 SA7117-34170 [1] Shim 1.0t
47 SA1036-00450 [1] Shim
48 SA1036-00460 [1] Shim
49 VOE990557 [3] O-ring
100 VOE14526221 [1] Overhaul kit


SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier

SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier

SA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet CarrierSA7117-34340 VOE1650535 SA7117-34350 EC210B EC240B EC240C Planet Carrier



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
