Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Programmable Heating Oven Environmental Test Chamber Test Oven
Specifications
Brand Name :
Sinuo
Model Number :
SN889-225L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Display Resolution :
0.1°C
Temperature Fluctuation :
±1°C
Power Rating :
2600 W
Temperature Uniformity :
±2.5°C
Working Area Size (W* D* H) :
50cm*60cm**75cm
Outer Dimensions (W* D* H) :
70cm*71cm*110cm
Temperature Range :
RT+10°C ~300°C
Structure Type :
Vertical
Description


Programmable Heating Oven Environmental Test Chamber Test Oven

Complied Standards & Clauses

This heating Oven is required by IEC 62368-1:2018 clause 5.4.1.5.3, 5.4.1.10, Annex G.5.3.4, Annex G.13.6.2, Annex M.4.2, M.4.4.4, Annex. P.4, Annex T.8, IEC60950:2013 clause 2.10.8.2, clause 4.2.7, clause 4.5.5, clause 4.7.3.2, IEC 60695-10-3 etc.

Product Overview

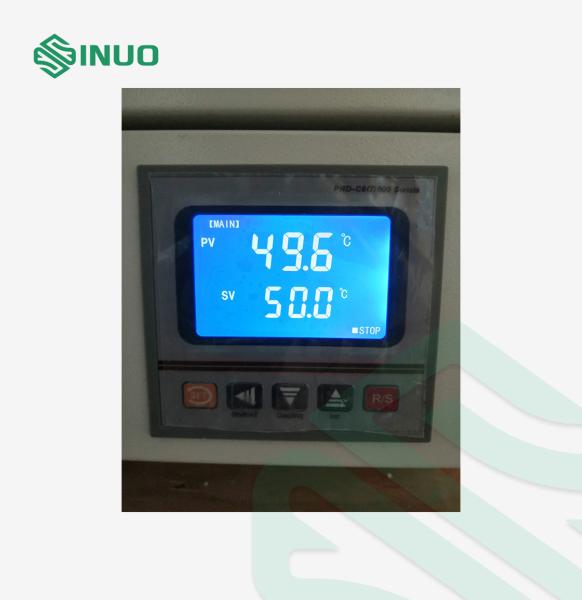

The SN889-225L Programmable Heating Oven is a vertical, forced-air convection chamber designed for thermal stress and safety tests of electrical and electronic components. Built to meet key clauses and annexes of IEC 62368-1:2018 (including 5.4.1.5.3, 5.4.1.10, Annex G, M, P, T) as well as IEC 60950:2013 and IEC 60695-10-3, it offers a temperature range from RT + 10 °C to 300 °C with ±1 °C fluctuation and ±2.5 °C uniformity. Featuring a digital LCD controller, RS-485 interface, and robust safety grounding, the oven ensures reliable performance in well-ventilated, non-explosive environments. Its 50 × 60 × 75 cm work space, rapid PID control, and corrosion-resistant stainless-steel interior make it ideal for laboratory, R&D, and production applications requiring precise thermal conditioning and compliance testing.

Technical Parameters

Power supply AC 220V, 50Hz
Temperature Range RT+10°C ~300°C
Display Resolution 0.1°C
Temperature Fluctuation ±1°C
Power Rating 2600 W
Temperature Uniformity ±2.5°C
Display Method LCD screen
Volume / Working Area Size (W* D* H) 50cm*60cm**75cm
Outer Dimensions (W* D* H) 70cm*71cm*110cm
Communication Interface R485 interface on the right side of the device
Structure Type Vertical

Details

Programmable Heating Oven Environmental Test Chamber Test OvenProgrammable Heating Oven Environmental Test Chamber Test Oven
