Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
Specifications
Brand Name :
Sinuo
Model Number :
SN883-X65
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Equipment dimensions :
124cm×114cm×202cm (W×D×H)
Exposure area :
6500cm2
Light source life :
2000h
Irradiance display band :
340nm, 420nm, 300～400nm optional
Blackboard temperature :
40℃～110℃
Black mark temperature :
40℃～120℃
Temperature in the chamber :
38℃～80℃
Humidity in the chamber :
30%RH～75%RH
Description
Environmental Test Chamber with Water Cooling Xenon Arc Light Source
ISO 4892 Water-cooled Xenon Test Chamber for Weathering Tests According to ISO 4892
Compliance Standards
This water-cooling xenon weathering test chamber conforms to multiple international test methods including:
  • SAE J2412, SAE J2527
  • ASTM G155
  • ISO 105-B02, ISO 105-B04, ISO 105-B06
  • ISO 4892-2-A, ISO 11341-1
Equipment Overview
This weatherproof test chamber utilizes a long arc water-cooled xenon lamp as the light source to provide environmental simulation and accelerated aging testing for scientific research, product development, and quality control applications.
Widely used across multiple industries including automotive materials, plastics, packaging, coatings, inks, dyes, stabilizers, textiles, and electronics. Weathering testing is an essential component of product quality inspection, particularly for materials such as paints, plastics, aluminum-plastic panels, and automotive safety glass.
Technical Specifications
Model SN883-X65
Dimensions 124cm × 114cm × 202cm (W × D × H)
Exposure Area 6500cm² / Approximately 65 standard samples (140mm × 70mm)
Light Source 6.5kW long arc water-cooled xenon lamp (imported from Q-LAB, USA)
Light Source Life Approximately 2000 hours (based on irradiance 0.51W/m² @340nm)
Irradiance Display Bands 340nm, 420nm, 300-400nm optional
Irradiance Range 0.3W/m² - 1.1W/m² (@340nm)
40W/m² - 120W/m² (@300nm-400nm)
Sample Temperature Blackboard temperature: 40℃ - 110℃
Black mark temperature: 40℃ - 120℃
Chamber Temperature 38℃ - 80℃
Power Source AC 208V, 60Hz, three-phase five-wire (including ground wire)
Water Source Tap water: 0.14 - 0.3 MPa
Laboratory secondary water: 0.08 - 0.15 MPa
Laboratory secondary water consumption: approximately 150 L/day
Drain Requirements Drain height from ground: ≤15cm
Drain interface diameter: ≥5cm
Ambient Temperature 18℃ - 28℃
Environment Humidity 10%RH - 85%RH
Installation Space ≥280cm × 300cm × 280cm (W × D × H)
Environmental Conditions Indoor, clean environment with minimal dust, flat ground, no corrosive, flammable, or explosive gases, liquids, or dust in surrounding area
Standard Configuration
  • Host: 1 Set
  • Q-LAB 6.5kW xenon lamp: 1 PC
  • Simulated outdoor daylight filter set: 1 set
  • Irradiance calibrator: 1 set
  • Pure water machine: 1 set
  • Chiller: 1 set

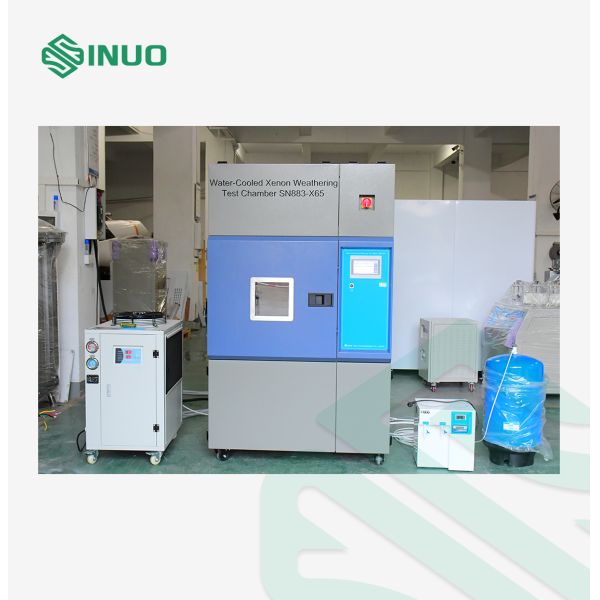

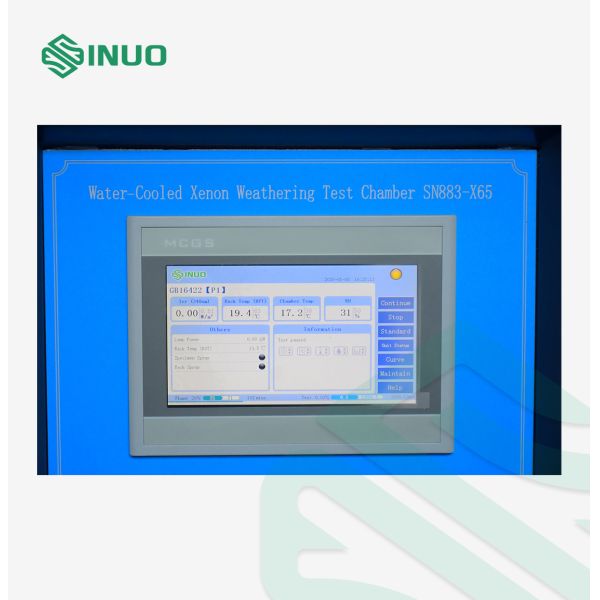

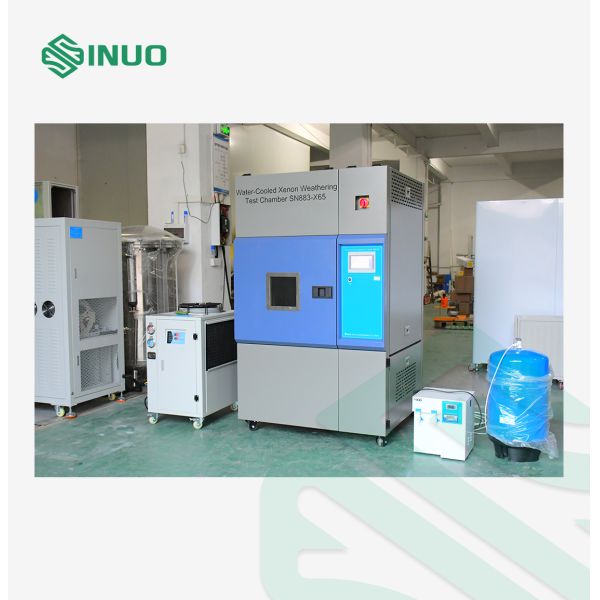

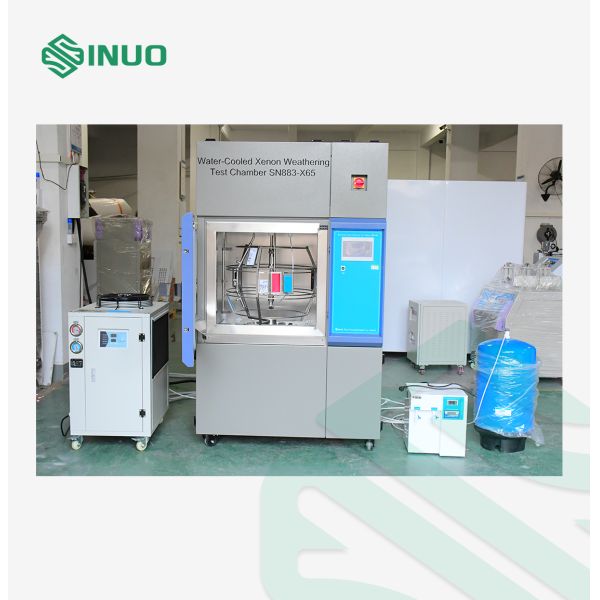

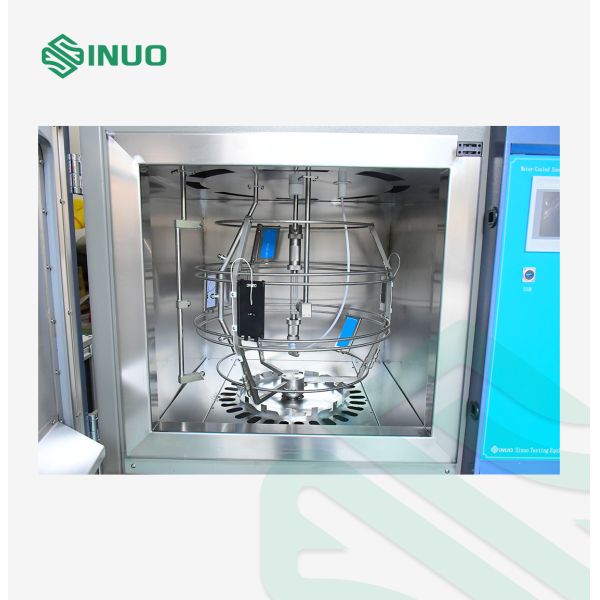

Product Images
Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing
