ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN882A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood case
Light Source :
UV-A 340
Applied Standard :
ISO4892-3:2006, etc.
Exposure Area :
5175cm2
Lamp Power :
40 W/PC
Blackboard Temperature Range :
40～85℃ under light
Chamber Temperature Range :
RT+5℃～85℃
Irradiation Intensity :
UV-A 340:1.55W/cm2
Irradiance Range :
UVA340:0.3W/m2～1.1 W/m2
Description

ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber

Complied Standards & Clauses

This UV accelerated aging test chamber is designed in full accordance with major international testing standards for plastics, coatings, and non-metallic materials. It supports a wide range of exposure and weathering simulations, ensuring reliable and repeatable test results.

Supported standards include:

  • ISO 4892-3:2006 – Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps

  • ASTM G154 – Standard Practice for Operating Fluorescent UV Lamp Apparatus for Exposure of Nonmetallic Materials

  • ASTM D4329 – Standard Practice for Fluorescent UV Exposure of Plastics

These standards cover UV radiation, temperature, and moisture exposure requirements, helping manufacturers evaluate material durability, aging resistance, colorfastness, and product lifespan under accelerated environmental conditions.


Equipment Overview

This UV Accelerated Aging Test Chamber uses high-quality imported UVA-340 fluorescent UV lamps as its light source. By simulating key environmental factors such as ultraviolet radiation in natural sunlight, nighttime cooling, condensation, and rainfall, the chamber performs accelerated weathering tests to evaluate the material’s resistance to aging.

It provides reliable data on how materials change over time under long-term outdoor exposure. With this chamber, you can compare different materials, optimize existing formulations, and accurately assess the durability and lifespan of your products, helping you make better decisions in material selection and product development.


Technical Parameters

Weight 170kg
Power supply Match client's local power supply requirements, well grounded

Chamber inner material

SUS stainless steel plate

Lamp life

≥3000h(related to irradiance)

Total exposure area

5175cm2

Center distance in lamp tube

70mm

Irradiance range

UVA340:0.3W/m2～1.1 W/m2

Irradiation intensity

UV-A 340:1.55W/cm2

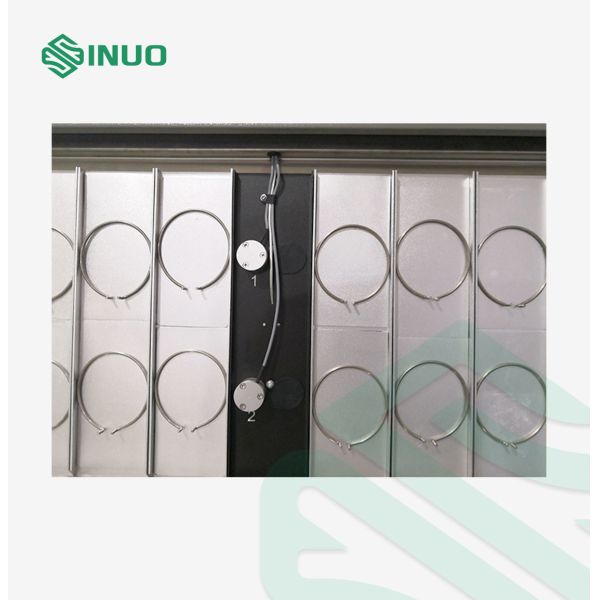

Standard sample holder

48 standard samples (75×150mm) can be placed

Blackboard temperature range

40～85℃ under light, tolerance:±3℃

Heating

√

Condensation

√

Spray

√

Chamber temperature range

RT+5℃～85℃, tolerance:±3℃

Chamber dimensions

Width:141cm * depth:56 cm * height:135 cm

Required installation area

Width:≥260 cm, Depth:≥200 cm

Wave length range

UV-A 340:295-400nm

Enclosure material

Electrostatic spraying on A3 board

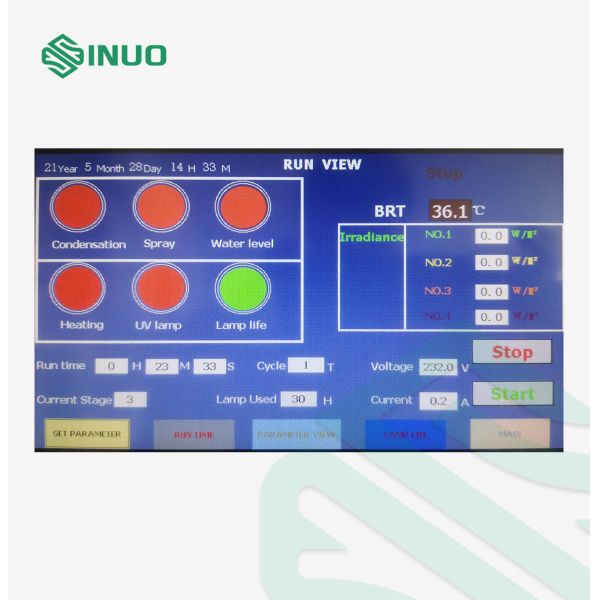

Control method

LCD touch screen controller, programmable

Light source

UV-A 340

Lamp quantity

8 pcs

Water source

Pure water
Details

ASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test ChamberASTM G154 UV Accelerated Aging Test Chamber UV Weathering Test Chamber
