Specifications
Brand Name :
Sinuo
Model Number :
SN883-X65
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Equipment dimensions :
124cm×114cm×202cm (W×D×H)
Exposure area :
6500cm2
Light source life :
2000h
Irradiance display band :
340nm, 420nm, 300～400nm optional
Blackboard temperature :
40℃～110℃
Black mark temperature :
40℃～120℃
Temperature in the chamber :
38℃～80℃
Humidity in the chamber :
30%RH～75%RH
Description

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber

Complied Standards & Clauses

This water-cooling xenon weathering test chamber conforms to multiple test methods such as AE J2412, SAE J2527, ASTMG 155ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, ISO 11341-1, etc.


Equipment Overview

The Xenon Arc Weathering Test Chamber is an advanced environmental testing solution designed to simulate natural sunlight and weather conditions for accelerated aging and durability testing. Using a long-arc water-cooled xenon lamp as the light source, the chamber replicates UV radiation, condensation, rain, and temperature cycles, providing a controlled environment to evaluate material weather resistance.

Widely applied in industries such as automotive materials, plastics, coatings, inks, textiles, electronics, packaging, and electrical appliances, this chamber helps manufacturers select new materials, optimize existing ones, and ensure product longevity under real-world conditions. Weathering tests performed in this chamber are essential for quality control, research and development, and compliance with industry standards.


Technical Parameters

Model SN883- X65
Dimensions 124cm×114cm×202cm (W×D×H)
Temperature in the chamber 38℃～80℃
Sample temperature

Blackboard temperature: 40℃～110℃

Black mark temperature:40℃～120℃
Light source 6.5kW long arc water-cooled xenon lamp (imported from the United States Q-LAB)
Irradiance range

0.3W/m2～1.1 W/m2(@340nm)

40 W/m2～120 W/m2(@300nm～400nm)
Irradiance display band 340nm, 420nm, 300～400nm optional
Light source life

About 2000h (based on irradiance 0.51W/m2 @340nm)
Exposure area 6500cm2/ About 65 standard samples (140mm×70mm)
Environment humidity 10%RH～85%RH
Water source Tap water: 0.14～0.3 MPa
Laboratory secondary water: 0.08～0.15 MPa
Laboratory secondary water consumption: about 150 L/day
Power source AC 208V, 60Hz, three-phase five-wire (including ground wire)
Ambient temperature 18℃～28℃
Environmental conditions Indoor, clean, less dust, flat ground, there is no corrosive, flammable, explosive gas, liquid, dust around
Drain The height of the drain from the ground: ≤15cm
Drain interface diameter: ≥5cm
Installation space ≥280cm×300cm×280cm (W×D×H)

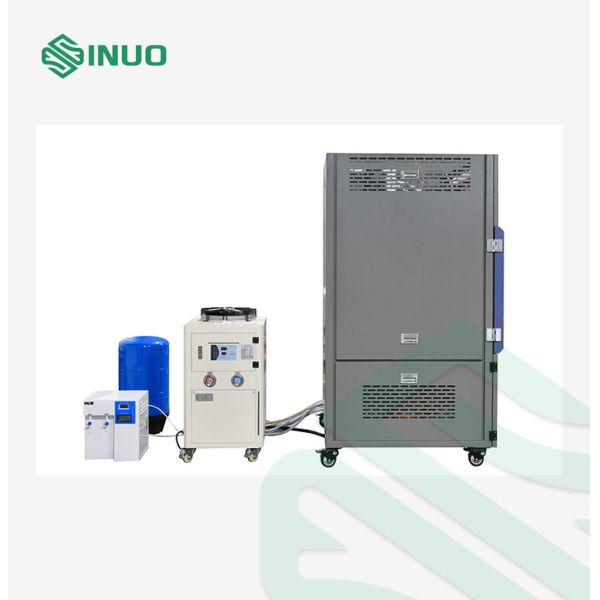

Standard configuration and random accessories
Standard configuration

Host 1 Set

Q-LAB 6.5kW xenon lamp 1 PC

Simulated outdoor daylight filter set 1 set

Irradiance calibrator 1 set

Pure water machine 1 set

Chiller 1 set

Detail

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test ChamberXenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber
