Specifications
Brand Name :
Sinuo
Model Number :
SN553- EV211HG80VT80VCS-2
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30 days
Price :
Customized
Software :
Sine, Random, Shock
Slip Table :
Aluminum Alloy
Max. Displacement :
51 mm p-p
Max. Force :
1100Kg
Max. Acceleration :
100G
Max. Load :
300 kg
Supply Ability :
5 sets/month
Packaging Details :
Plywood case
Description
ASTM D4728 Vibration Testing System For Shipping Container Durability
Product Overview
The ASTM D4728 Vibration Testing System is designed for comprehensive shipping container durability testing, simulating real-world environmental conditions to validate product quality and performance.
Applications
Vibration testing evaluates how components and devices react under real environmental conditions by applying controlled excitation or shock. Applications span across various industrial sectors including:
  • Circuit boards and electronic components
  • Aircraft, ships, and aerospace systems
  • Automotive components and vehicles
  • Household appliances and consumer products
  • Rockets, missiles, and defense equipment
Sinuo provides complete excitation and testing solutions compliant with national and international standards including UN38.3, GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.
Technical Specifications

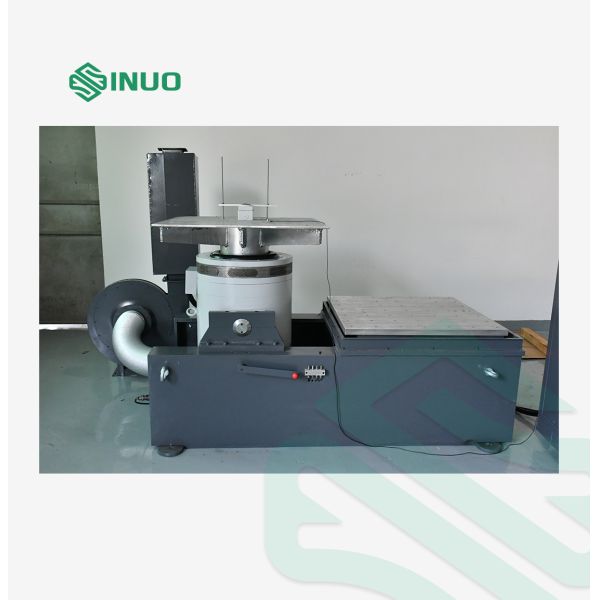

A11S24 Electromagnetic Excitation Generator
ParameterSpecification
Maximum Sinusoidal Excitation Force1100Kg.f peak
Maximum Random Exciting Force1100Kg.f r.ms
Maximum Impact Excitation Force2200Kg.f peak
Frequency Range1-2800 Hz
Maximum Displacement51 mm p-p
Maximum Speed2m/s
Maximum Acceleration100G
First-Order Resonant Frequency2500 Hz±5%
Maximum Load300 kg
Vibration Isolation Frequency2.5 Hz
Moving Coil DiameterФ240 mm
Moving Coil Weight11kg
Screw on Table17×M10
Flux Leakage<1mT (10gauss)
Allowable Eccentric Moment500N.m
Equipment SizeL1300mm×D940mm×H800mm (excluding vertical expansion table)
Equipment Weight880 kg (excluding horizontal slide table)
SA-6K Digital Switching Power Amplifier
ParameterSpecification
Output Power12KVA
Output Voltage120V
Output Current100A
SNR>65dB
Amplifier SizeD900mm×L600mm×H1130mm
Servo Protection System
Comprehensive protection features including: Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, and input phase loss.

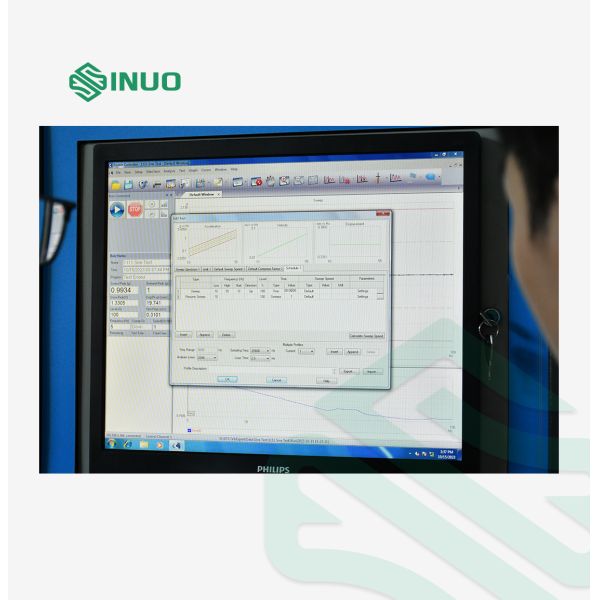

Digital Vibration Controller VCS-2
ComponentSpecification
Hardware Configuration2 simultaneous input channels, 1 output channel
Control Function ModuleSine, random, classical shock
Control Computer17" original brand computer with LCD monitor, Windows 10
SoftwareChinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, automatic WORD test report generation, data display and storage, test parameter setting and analysis functions
System Accelerator
ParameterSpecification
Frequency Range1-7000Hz
Sensitivity30PC/g
Temperature Range-40 to 180°C

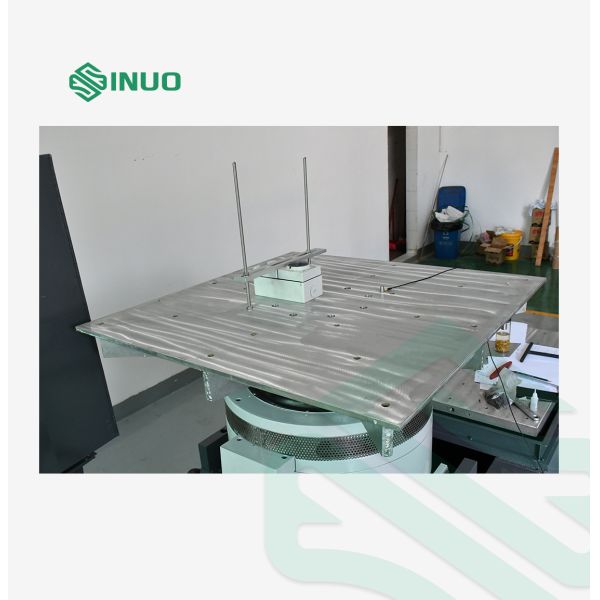

VT80 Vertical Extension Table
ParameterSpecification
MaterialMagnesium alloy, surface hardened
Table Size800×800 mm
Fixed HoleM10 rectangular distribution 100MM×100MM, durable and wear-resistant
Upper Limit Usage FrequencySine 1000 Hz, Random 2000 Hz
WeightApproximately 23Kg
HG80 Horizontal Oil Film Slide Table
ParameterSpecification
MaterialMagnesium alloy, surface hardened
Table Size800×800 mm
Fixed HoleM10 rectangular distribution 100MM×100MM, durable and wear-resistant
Upper Limit Usage FrequencySine 2000 Hz, Random 2000 Hz
WeightApproximately 29Kg (without connection head)
B402S Cooling Fan
ParameterSpecification
Fan Power4KW
Fan Flow Rate40.8m³/Min
Electrical Requirements
RequirementSpecification
Power SupplyAC 3-phase 380V/50Hz 18 KW
Compressed Air0.6Mpa
Ground Resistance≤4Ω
Digital Vibration Controller Functions

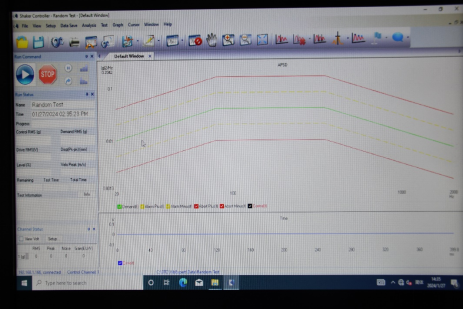

Random Control
Utilizes transfer function equalization with user-defined power spectrum diagrams. Continuously outputs Gaussian random signals for real-time, accurate multi-channel closed-loop control. Built-in adaptive control algorithms quickly respond to system nonlinearities, resonant frequency, and load changes.
  • Frequency range: 0-4680Hz (extendable to 18750Hz)
  • Resolution: 100, 200, 400, 800, 1600, 3200 spectral lines
  • Control power range: >90dB
  • Control strategy: single channel control, weighted average, maximum value, minimum value
ASTM D4728 Vibration Testing System For Shipping Container Durability

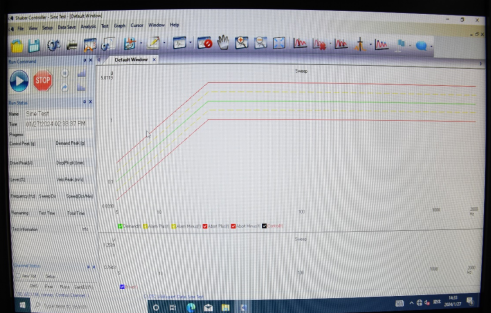

Sine Control
Provides high-quality sine and sine sweep signals with precise amplitude control. Configure dwell magnitude, dwell frequency, and duration by time or number of cycles.
  • Frequency range: 1Hz-4680Hz (expandable to 10000Hz)
  • Closed loop time: 5 mS
  • Harmonic distortion: <-100dB
  • Frequency sweep modes: linear (0-6000 Hz/min) and logarithmic (0-100 Oct/min)
  • Sweep direction: up and down
  • Sweep duration: configurable by number of sweeps or test times
ASTM D4728 Vibration Testing System For Shipping Container Durability

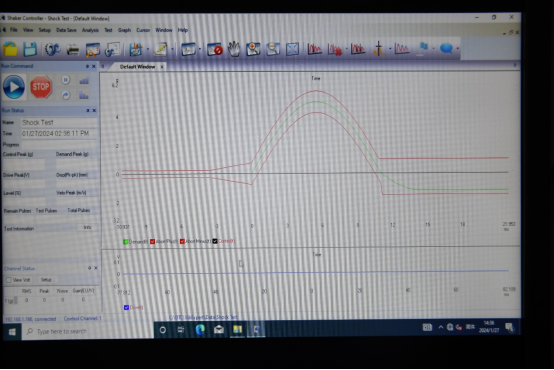

Classical Shock
Employs transfer function equalization method supporting various waveform types including half sine wave, bell wave, rectangular wave, trapezoidal wave, front peak sawtooth wave, back peak sawtooth wave, and triangular wave. Custom pulse peak values can be input as needed.
  • Pulse duration: 0.5 to 3,000mS
  • Maximum analysis bandwidth: 22000Hz
  • Frame size: up to 16384
  • Compliance: MIL-STD-810 (US military standard), ISO standard, user-defined interrupt control limits
ASTM D4728 Vibration Testing System For Shipping Container Durability
