Specifications
Brand Name :
EVERGEAR
Model Number :
ERF27~ERF177
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$69
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
9999999
Delivery Time :
25-30days
Packaging Details :
strong wooden case and pallet
Power :
0.12KW-200KW
Ratio :
3.4– 285.61
Output Speed :
2.6-529rpm
Output torque :
110-15300KNm
Input speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Output shaft diameter :
25mm-160mm
Reduction stage :
single stage, two stages, three stages
Mounting way :
foot mounted, shaft mounted, flange mounted
Output way :
Solid shaft
Weight :
6.2KGS-980KGS
Ambient temperature :
-40.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Description

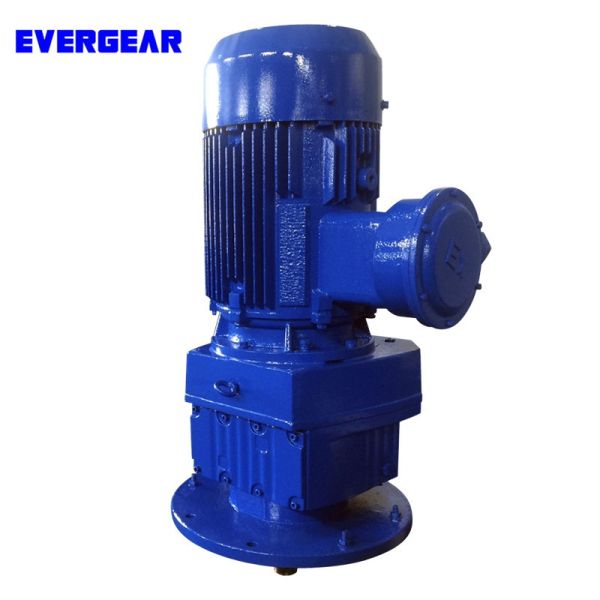

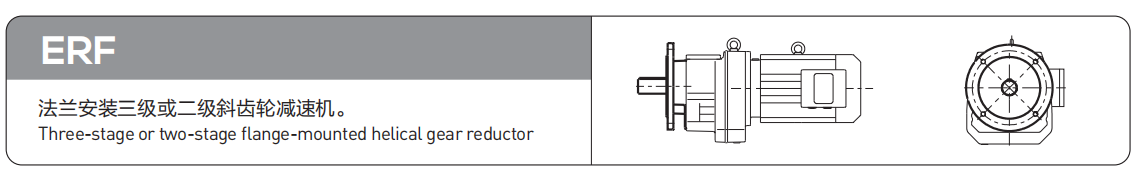

ERF series inline helical gear motor with flange mounted for agitators

High-performance inline helical gear motor designed for industrial applications requiring reliable power transmission and precise speed control.

Technical Specifications
Model Series: ERF 27, ERF 37, ERF 47, ERF 57, ERF 67, ERF 77, ERF 87, ERF 97, ERF 107, ERF 137, ERF 147, ERF 167, ERF177
Rotation Direction: CW or CCW
Corrosion Protection: Conservation according to Norm
Coating System: Standard coating, finishing coat for all climatic zones
Color: Blue RAL5010 / RAL7031 or custom colors available
Key Advantages
  • Modular design system with multi-purpose use of housing and internal components
  • Progressive ratio of sizes for optimum selection and application matching
Model Selection Guide
Model ERF 27 ERF 37 ERF 47 ERF 57 ERF 67 ERF 77
Structure Form ER/ERF/ERM/ERX/ERXF/ER..ER/ER..S..
Input Power (KW) 0.12-3 0.12-3 0.12-5.5 0.12-7.5 0.12-7.5 0.18-11
Ratio 3.37-136 3.4-133.3 3.87-182.6 4.32-183.2 4.32-180.7 5.28-200.9
Permissible Torque (Nm) 110 170 255 380 510 700
Weight (KGS) 8 15 18 23 29 35
Model ERF 87 ERF 97 ERF 107 ERF 137 ERF 147 ERF 167
Structure Form ER/ERF/ERM/ERX/ERXF/ER..ER/ER..S..
Input Power (KW) 0.55-22 0.55-37 2.2-55 5.5-75 11-110 11-160
Ratio 5.33-245.7 4.52-280.6 4.98-255.4 5.22-223.2 4.93-162.1 10.43-224.6
Permissible Torque (Nm) 1320 2550 3670 6800 11050 15300
Weight (KGS) 65 102 162 248 420 762

ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio
ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio
ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio

ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio
ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio

ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio
ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 Ratio

ERF Series Flange Mounted Inline Helical Gear Motor with 0.12KW-200KW Power Range and 3.4–285.61 RatioApplications of industrial machines:
  1. Conveyor machinery
  2. Crane
  3. Packing
  4. Foot industry
  5. Washer
  6. Walking machine
  7. Cropping & shearing machine
  8. Woodworking machine
  9. Machines for plastic industry etc......
For detailed technical specifications, custom configurations, or application support, please contact our engineering team online!
