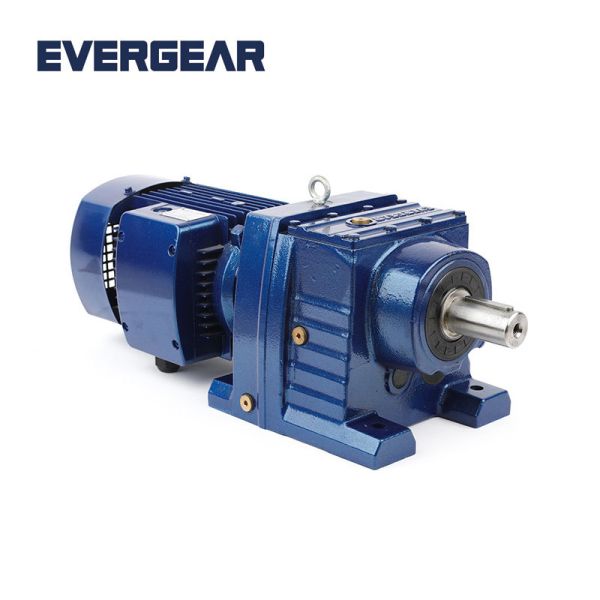

ER series inline helical gear motor
ER series inline helical gear motor
ER series inline helical gear motor
ER series inline helical gear motor
ER series inline helical gear motor
ER series inline helical gear motor
Specifications
Brand Name :
EVERGEAR
Model Number :
ER27~ER177
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$69
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
9999999
Delivery Time :
25-30days
Packaging Details :
strong wooden case and pallet
Power :
0.12KW-200KW
Ratio :
3.4– 285.61
Output Speed :
2.6-529rpm
Output torque :
110-15300KNm
Input speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Output shaft diameter :
25mm-160mm
Reduction stage :
single stage, two stages, three stages
Mounting way :

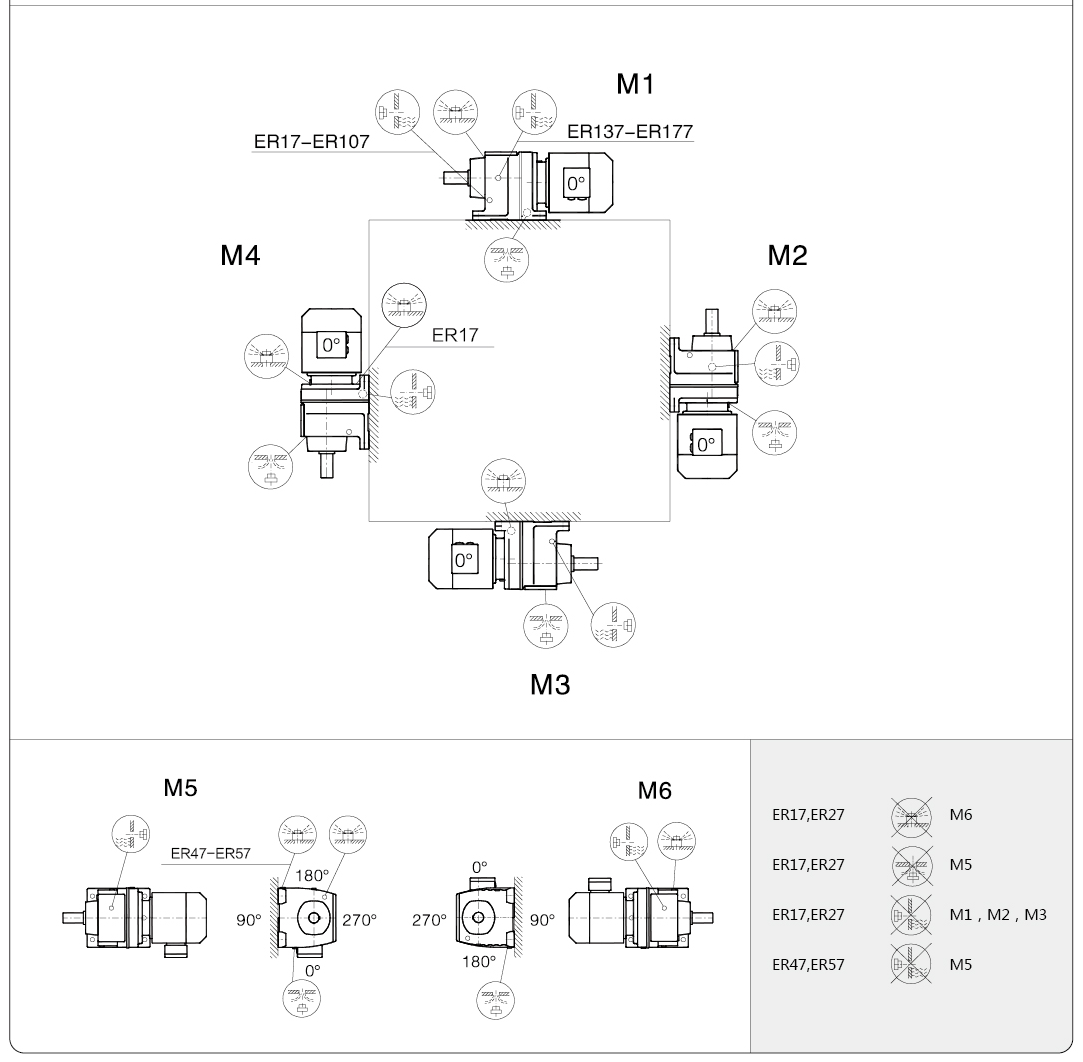

foot mounted, shaft mounted, flange mounted
Output way :
Solid shaft
Weight :
6.2KGS-980KGS
Ambient temperature :
-40.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Description

Model: ER series inline helical gear motor

Size: ER 27, ER 37, ER 47, ER 57, ER 67, ER 77, ER 87, ER 97, ER 107, ER 137, ER 147, ER 167, ER177

Power range:0.12KW-200KW

Ratio: 3.4– 285.61

Output Speed:2.6-529rpm

Output torque:110-15300KNm

Input speed:500rpm,750rpm,1000rpm,1500rpm,1800rpm.

Output shaft diameter:25mm-160mm

Reduction stage: single stage, two stages, three stages,

Direction of rotation of gear output shaft: CW rotation or CCW

Corrosion protection: Conservation acc. to Norm

Coating system: Standard coating, finishing coat, for all climatic zones

Color: blue RAL5010 /Ral7031 or any color you need

Advantages:

  • Modular design system Multi-purpose use of the housing and internal components.
  • Progressive ratio of sizes for optimum selection of sizes.

Model selection table:

Model ER 27 ER 37 ER 47 ER 57 ER 67 ER 77

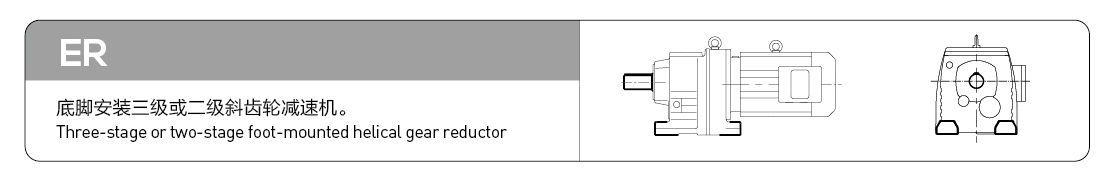

Structure form ER/ERF / ERM /ERX /ERXF /ER..ER/ER..S..
Input power(KW) 0.12-3 0.12-3 0.12-5.5 0.12-7.5 0.12-7.5 0.18-11
Ratio 3.37-136 3.4-133.3 3.87-182.6 4.32-183.2 4.32-180.7 5.28-200.9
Permissible torque(Nm) 110 170 255 380 510 700

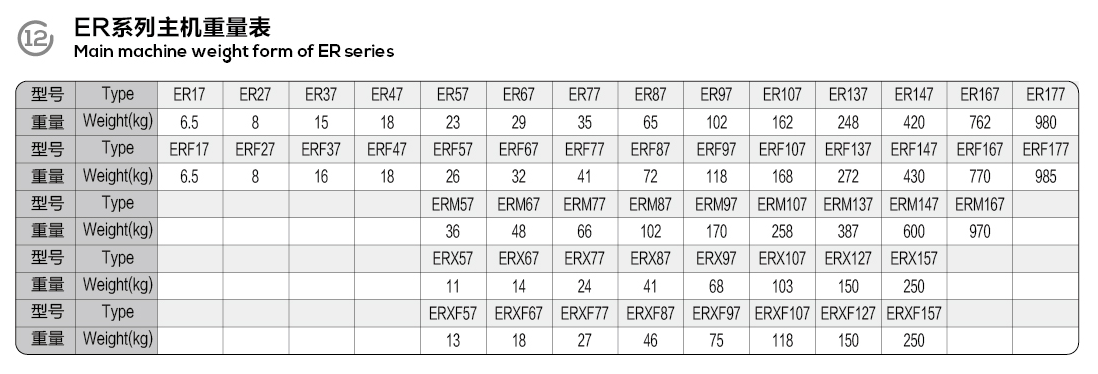

Weight(KGS) 8 15 18 23 29 35
Model ER 87 ER 97 ER 107 ER 137 ER 147 ER 167
Structure form ER/ERF / ERM /ERX /ERXF /ER..ER/ER..S..
Input power(KW) 0.55-22 0.55-37 2.2-55 5.5-75 11-110 11-160
Ratio 5.33-245.7 4.52-280.6 4.98-255.4 5.22-223.2 4.93-162.1 10.43-224.6
Permissible torque(Nm) 1320 2550 3670 6800 11050 15300
weight(KGS) 65 102 162 248 420 762

ER series inline helical gear motor

ER series inline helical gear motor

ER series inline helical gear motor

ER series inline helical gear motor

ER series inline helical gear motor

ER series inline helical gear motor

ER series inline helical gear motor

ER series inline helical gear motor

If you need more technical data, welcome to contact us online!
