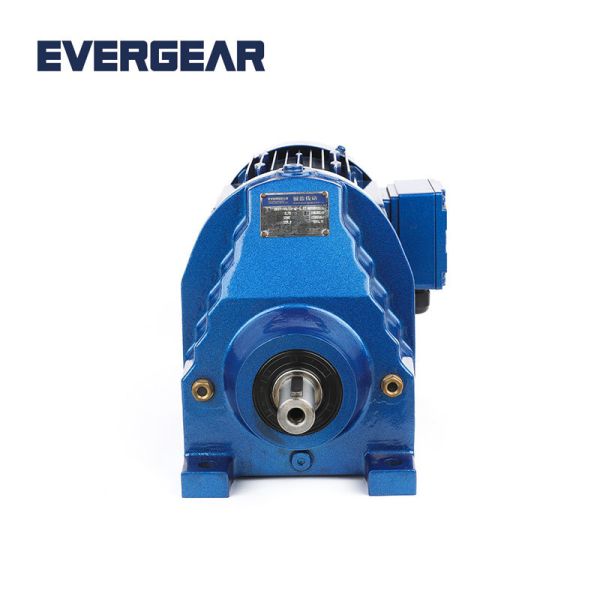

ERX Series Inline Helical Gear Motor
ERX Series Inline Helical Gear Motor
ERX Series Inline Helical Gear Motor
ERX Series Inline Helical Gear Motor
ERX Series Inline Helical Gear Motor
ERX Series Inline Helical Gear Motor
Specifications
Input speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Input way :
Input way:Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input
Color :
blue RAL5010 or grey RAL7031 any color you need
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Output way :
Solid shaft
Ratio :
1.29– 6.62
Reduction stage :
single stage
Ambient temperature :
-40.00 [°C] ~ +40 [°C]
Coating system :
Standard coating, finishing coat, for all climatic zones
Output shaft diameter :
20mm-60mm
Direction of rotation of gear output shaft :
CW rotation or CCW
Mounting way :
foot mounted, shaft mounted, flange mounted
Weight :
11KGS-118KGS
Output Speed :
226-887rpm
Brand Name :
EVERGEAR
Model Number :
ERX57~ERX157
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$69
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
9999999
Delivery Time :
25-30days
Packaging Details :
strong wooden case and pallet
Power :
0.18KW-45KW
Output torque :
69-830KNm
Description
ER Series Inline Helical Gear Motor
High-performance inline helical gear motor with 0.12KW-200KW power range, 3.4–285.61 ratio, and modular design system for industrial applications requiring reliable power transmission and precise speed control.
Product Overview
ERX Series Single Transmission Stage Inline Helical Gear Motor designed for demanding industrial environments with superior performance and reliability.
Technical Specifications
Model Series: ERX series single reduction stage inline helical gear motor
Available Sizes: ERX57, ERX67, ERX77, ERX87, ERX97, ERX107, ERX127, ERX157
Key Advantages
  • Modular design system with multi-purpose use of housing and internal components
  • Progressive ratio of sizes for optimum selection and application matching
  • Wide power range from 0.12KW to 200KW
  • Precise speed control capabilities
Model Selection Guide
Model ERX57 ERX67 ERX77 ERX87 ERX97 ERX107 ERX127 ERX157
Structure form ERX / ERXF
Input power (KW) 0.12-5.5 0.12-7.5 1.1-11 2.2-22 5.5-30 5.5-45 7.5-90 11-132
Ratio 1.29-5.4 1.4-6.2 1.39-5.45 1.4-5.22 1.33-5.67 1.42-6.62 1.56-7 1.63-6.2
Permissible torque (Nm) 69 134 215 405 595 830 1110 1680

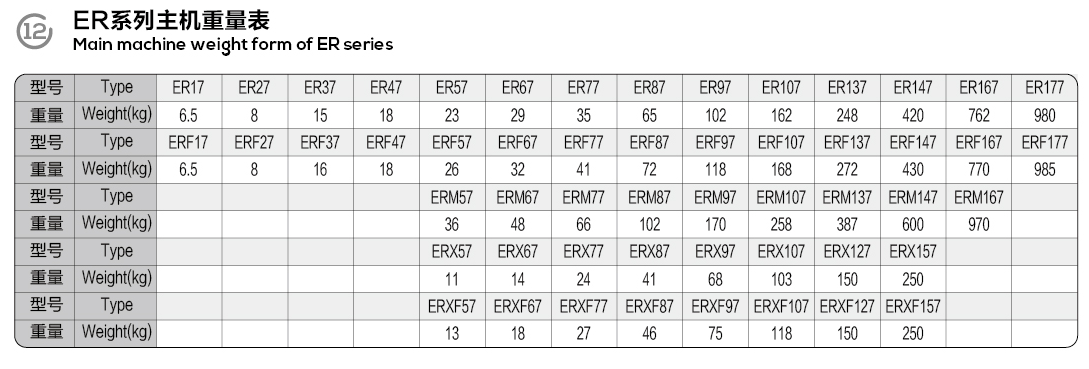

Weight (KGS) 11 14 24 41 68 103 150 250
Product Images
ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor ERX Series Inline Helical Gear Motor
Industrial Applications
Conveyor machinery, Crane systems, Packaging equipment, Food industry machinery, Washers, Walking machines, Cropping & shearing machines, Woodworking machinery, Plastic industry machinery, and various other industrial applications.
For detailed technical specifications, custom configurations, or application support, please contact our engineering team online!
