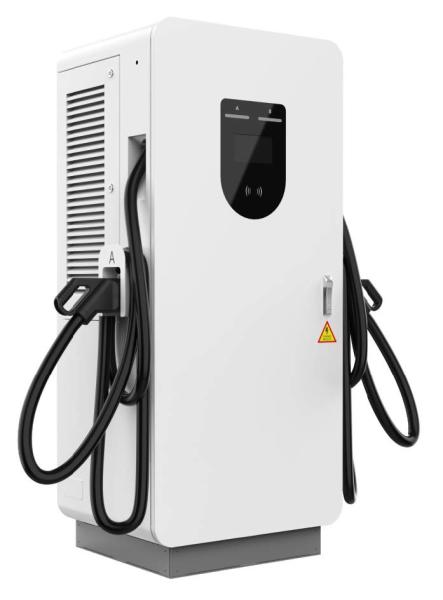

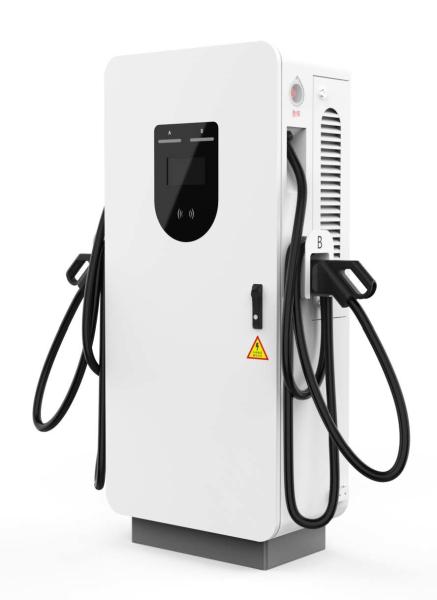

High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW
High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW
Specifications
Brand Name :
HONGJU
Model Number :
EV-SA1-01DC-180
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
10000PCS Per Month
Delivery Time :
35-40 days
Packaging Details :
box
Product Dimensions :
750*600*1700(L*W*H)mm
Maximum Current :
250A
Installation :
Floor-stand
Rated Power :
120kW
Work Temperature :
-30℃ to +55℃
Description

High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW

Input Voltage Range
400VAC ± 20%

Output Power
180kW

Frequency
50 / 60Hz

Brand Name
HONGJU

Interface Standard
GBT/CCS1/CHAdeMO/CCS2

LCD Display
7'' color touch screen

Product name
120KW Floor-Stand DC Charger

Mode
Single gun / Double gun

Emergency Stop Button
Yes

Communication Protocol
OCPP1.6J Or other

Display screen
7'' color touch screen

Starting mode
Plug& Play / RFID card / App

Charging gun length
5m

Output Voltage
200 -1000VDC

Installation
Floor-stand

Safety

RCD: Type A
Ingress Protection: IP54
Impact Protection: IK08
Certification: CE
Certificate Compliance: IEC 62196 2017,IEC 61851 2017,SAE J1772,CHAdeMO etc

Special Protection: Over current protection, Residual current protection, Short circuit protection,
Ground protection, Surge protection, Over/Under voltage protection,
Over/Under frequency protection, Over/Under temperature protection

Warranty: 1 years

Package

Product Dimensions: 750*600*1700(L*W*H)mm
Package Dimensions: 850*700*1800(L*W*H)mm
Net eight: 300Kg
Gross Weight: 360Kg

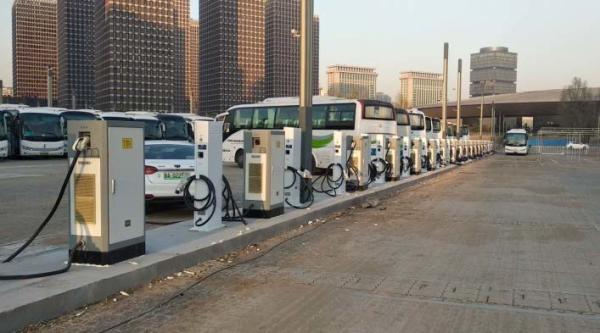

Solution: public charging station

Applica on scenario: public parking lot for social vehicles
Product selec on: three-phase AC charging pile, integrated and split DC charging pile

Advantage:
1. Flexible adapta on. The charging sta on is equipped with various charging piles. Users
can freely combine, flexibly choose fast charging and slow charging, and reasonably allocate time.
2. Strong compa bility, compa ble with parking lot management system

High Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kWHigh Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kWHigh Power Output DC EV Charger CCS2 Fast Charging Station 0-250A 180kW

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
