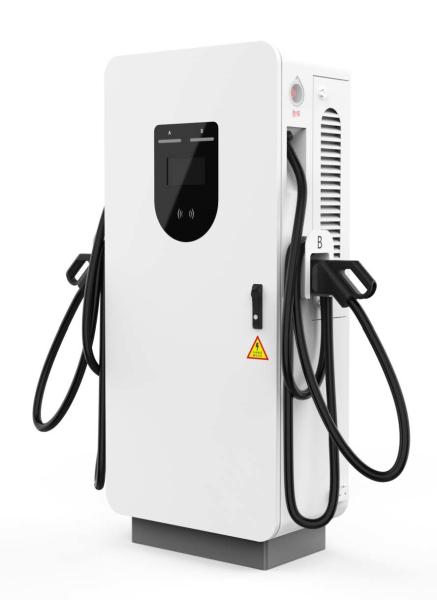

Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station
Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station
Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station
Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station
Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station
Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station
Specifications
Brand Name :
HONGJU
Model Number :
EV-SA1-01DC-60
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
10000PCS Per Month
Delivery Time :
35-40 days
Packaging Details :
box
Voltage Range :
400VAC ± 20%
Maximum Current :
200A
Charge Connector :
CCS 1 cable
OCPP :
OCPP 1 .6 Json (OCPP 2.0 optional)
Work Temperature :
-25℃ to +55℃
Power Supply :
3P + N + PE
Description

Super Dc 60kW OCPP 1.6 Ev Fast Charger Floor-Stand Dc Charging Station

Place of Origin
Guangdong, China

Output Power
60kW/80kW

Frequency
50 / 60Hz

Brand Name
HONGJU

Interface Standard
GBT/CCS1/CHAdeMO/CCS2

Input Voltage
400VAC ± 20%

Product name
60kW/80kW floor-stand DC charger

Mode
Single gun / Double gun

Emergency Stop Button
Yes

Communication Protocol
OCPP1.6J Or other

Display screen
7'' color touch screen

Starting mode
Plug& Play / RFID card / App

Charging gun length
5m

Output Voltage
200 -1000VDC

Installation
Floor-stand

Input

Power Supply: 3P + N + PE

Voltage Range: 400VAC ± 20%

Frequency: 50 / 60Hz

Output Voltage: 200 -1000VDC

Output

Maximum Current: 200A

Rated Power: 60kW

High compatibility, applicable to almost all models on the market

Energy-saving and power-saving, standby power consumption is as low as 3w, and cost is reduced

Various charging methods: plug & play / RFID card / APP

Optional networking mode: support wifi / Ethmet / 3G / 4G / Bluetooth / OCPP 1.6 json control device

The output current has four gears for more flexible adjustment

Various protection functions ensure charging safety in rainy and snowy weather

Optional installation mode: wall-mounted/pole-mounted, more convenient

Friendly interface and comfortable LCD screen

Solution: Expressway charging station

Applica on scenario: charging sta on in expressway service area
Product selec on: integrated and split DC charging pile

Advantage:
1. It is convenient to expand the capacity. The number of charging piles can be increased
according to the demand to reduce the secondary investment.

Super DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging StationSuper DC 60kW OCPP 1.6 EV Fast Charger Floor Stand EV DC Charging Station

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
