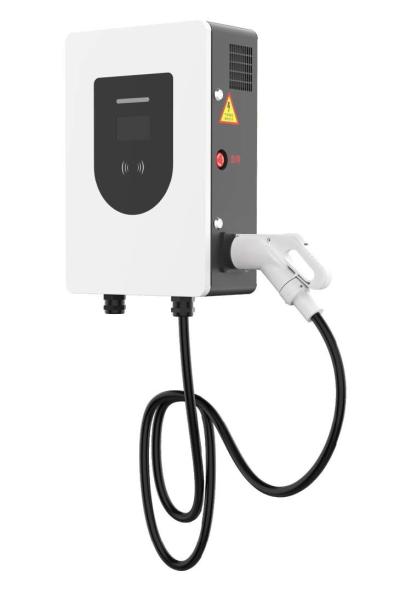

30kW IP54 CCS Wall Mounted DC EV Charger 4G Ethernet 5M CHAdeMO DC EV Charging Station
30kW IP54 CCS Wall Mounted DC EV Charger 4G Ethernet 5M CHAdeMO DC EV Charging Station
30kW IP54 CCS Wall Mounted DC EV Charger 4G Ethernet 5M CHAdeMO DC EV Charging Station
30kW IP54 CCS Wall Mounted DC EV Charger 4G Ethernet 5M CHAdeMO DC EV Charging Station
Specifications
Brand Name :
HONGJU
Model Number :
EV-WE1-01DC-30
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
10000PCS Per Month
Delivery Time :
35-40 days
Packaging Details :
box
Voltage Range :
AC380V
Output Voltage :
150 -1000VDC
Start Mode :
Plug& Play / RFID card / App
OCPP :
OCPP 1 .6 Json (OCPP 2.0 optional)
Work Temperature :
-25℃ to +55℃
Charge Connector :
CCS 2 cable
Description

30kW IP54 CCS Wall-Mounted DC Charger 4G Ethernet 5M CHAdeMO Public DC EV Charging Station

Place of Origin
Guangdong, China

Output Power
20kW/30kW/40kW

Condition
New

Brand Name
HONGJU

Interface Standard
GBT/CCS1/CHAdeMO/CCS2

Input Voltage
380V(-25%,+25%)AC

Product name
20kW/30kW/40kW Wall-Mounted DC Charger

Mode
Single gun

Emergency Stop Button
Yes

Communication Protocol
OCPP1.6J Or other

Display screen
7'' color touch screen

Starting mode
Plug& Play / RFID card / App

Charging gun length
5m

Output Voltage
150 -1000VDC

Installation
Wall-mount / Pole-mount

High compatibility, applicable to almost all models on the market

Energy-saving and power-saving, standby power consumption is as low as 3w, and cost is reduced

Various charging methods: plug & play / RFID card / APP

Optional networking mode: support wifi / Ethmet / 3G / 4G / Bluetooth / OCPP 1.6 json control device

The output current has four gears for more flexible adjustment

Various protection functions ensure charging safety in rainy and snowy weather

Optional installation mode: wall-mounted/pole-mounted, more convenient

Friendly interface and comfortable LCD screen

Communication

WIFI: Optional

Ethernet: Yes

3G/4G: Yes

OCPP: OCPP 1 .6 Json (OCPP 2.0 optional)

Special Protection

Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection,
Over/Under frequency protection, Over/Under temperature protection

30kW IP54 CCS Wall Mounted DC EV Charger 4G Ethernet 5M CHAdeMO DC EV Charging Station30kW IP54 CCS Wall Mounted DC EV Charger 4G Ethernet 5M CHAdeMO DC EV Charging Station

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
