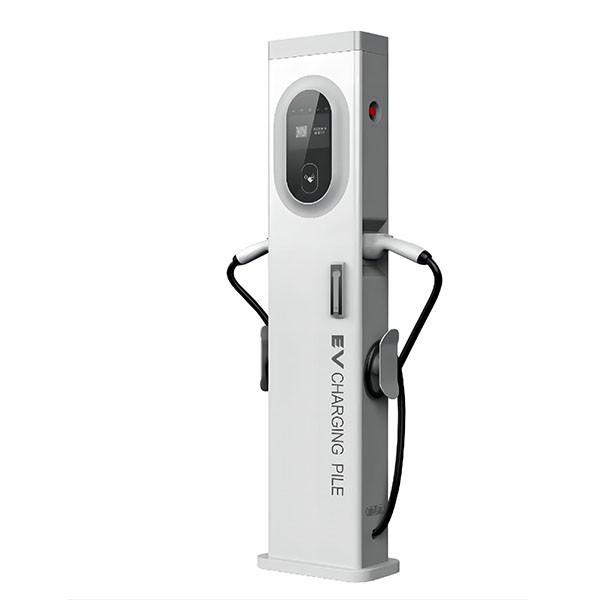

Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW
Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW
Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW
Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW
Specifications
Brand Name :
Energy Splendor
Model Number :
ES-AF03
Certification :
FCC,CE.TUV
Place of Origin :
China
MOQ :
1 unit
Price :
750-870USD/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-15days
Packaging Details :
Carton/Wooden box
Product name :
22kW 44kW AC EV Charger AC Fast EV Charging Station
Output Current :
0-63A
Input Voltage :
380V ±20%, 380V ±20%
Charging Standards :
Type 1 Type 2 GB/T
Protection class :
IP54
Certificate :
CE FCC ROHS
Output Power :
22kw 44kw, 22kW/44kW
Application :
Veichles Charging Station
Installation Guidance :
Full installation guide Online
OCPP :
1.6J
Color :
Customizable
Description

22kW AC EV Chager 44kW Type 2 Type 1 AC Integrated EV Charging Station Electric Charging Stations

AC EV chargers are devices that allow electric vehicles (EVs) to recharge their batteries by connecting to an alternating current (AC) power source. The power output of AC EV chargers is typically measured in kilowatts (kW), which represents the rate at which energy is transferred from the power source to the vehicle's battery.

A 22kW AC EV charger is able to provide a charging rate of up to 22 kilowatts, which can recharge most EVs in a matter of hours, depending on the size of the battery. This type of charger is commonly used in public charging stations, workplaces, and multi-unit dwellings.

A 44kW AC EV charger, on the other hand, is capable of providing a charging rate of up to 44 kilowatts, which can significantly reduce charging times for EVs with larger battery capacities. This type of charger is typically used in commercial and industrial settings, where high-power charging is required.

It's worth noting that the charging speed will also depend on the EV's charging capabilities, as well as the type of charging connector used. Some EVs are equipped with fast-charging capabilities that allow them to recharge their batteries at even higher rates, while others may be limited to lower charging rates. Additionally, the availability of charging infrastructure can also impact the charging experience for EV owners.

22kW AC EV Charger:

  • Output power: 22 kW
  • Input voltage: 380-415V AC three-phase
  • Maximum output current: 32A per phase
  • Charging connector: Type 2 (IEC 62196)
  • Communication protocol: OCPP (Open Charge Point Protocol) 1.6 or higher
  • Dimensions (HxWxD): 780mm x 405mm x 240mm
  • Weight: 25-30 kg
  • Operating temperature: -30°C to +50°C
  • Protection rating: IP54 (dust and water resistant)

44kW AC EV Charger:

  • Output power: 44 kW
  • Input voltage: 380-415V AC three-phase
  • Maximum output current: 63A per phase
  • Charging connector: Type 2 (IEC 62196)
  • Communication protocol: OCPP (Open Charge Point Protocol) 1.6 or higher
  • Dimensions (HxWxD): 780mm x 405mm x 240mm
  • Weight: 25-30 kg
  • Operating temperature: -30°C to +50°C
  • Protection rating: IP54 (dust and water resistant)

Specification:

Model ES-AF03-1 ES-AF03-2
Technical features
Charging capacity 22KW 44kW(22kW+22kW)
Input/Output power 400VAC±20%-50/60Hz- 400VAC±20%-50/60Hz-
32A-3phase 32A-3phase
RCD 30Ma RCD Type A and DC 6Ma RCD function or Type B(optional)
Standby power <3W
Measuring accuracy 1%
OCPP OCPP1.6 Json(OCPP2.0 optional) For Public charger;
Communication WIFI / Ethernet / 4G(Optional)

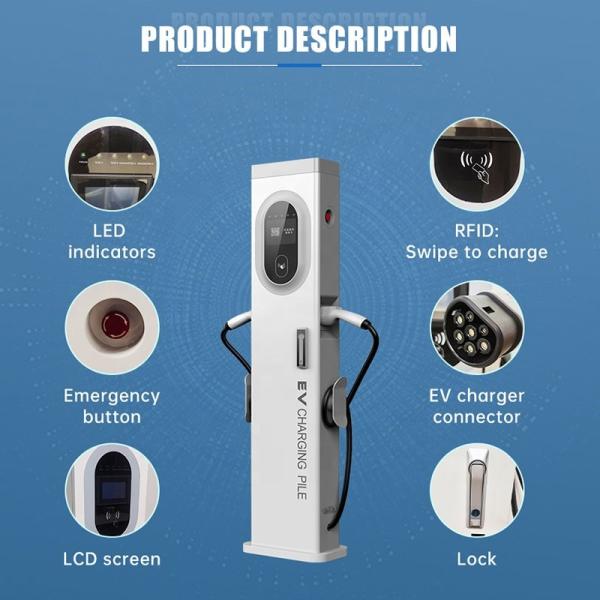

User interface LED / LCD(4.3"/7") / RFID
Certificate/Compliance CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Charging Interface Type 2 socket / 5M Cable
Special Protection Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Physical properties
Warranty 2 years
Protection IP54
Enclosure A
Installation Floor-Mounted
Cooling Natural cooling
Operating temperature -30°C to +55°C
Humidity Max.95%(non-regulating)
Product Dimensions 410*240*1400mm 410*240*1400mm

Package Dimension

 510*360*1430mm 510*360*1430mm
Net Weight 42Kg 42Kg
Gross Weight 43Kg 43Kg

Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW

Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW

Type 2 Type 1 Integrated AC EV Charging Station 44kW 22kW
