AC Products Charging Box 22kW Home Charger 3 Phase 32A EV Charging Station LCD touch screen

High Speed AC EV Charger 22kW

Product Description:

EV Charging Station The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode. It incorporates 4.3-inch LCD touch screen for monitoring and control. Fully programmable RGB Light Ring around charging port, to quickly determine the device state. It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.

PRODUCT PARAMETER

Input voltage/Output voltage:400V AC

Input frequency:50Hz

output power :22KW

output current :32A 3phase

AC Plug:IEC 62196-2 Type 2

Cable Length:5m

LED Indicator:Green/red for status

RCD:Type A+6mA DC

Product Dimension:340*230*88mm

Working environment

Protectiondegree:IP55/IK10

Operating temperature:-30°C~50°C

Working Humidity:5%-95% without condensation

Certificate :CE, IK10, IP55

Application:Indoor/outdoor

Multiple Protection:Over/Under voltage protection,Overload protection,Short current protection,Current leakage protection,

Grounding protection,Lightning/Surge protection,Over/under temperature protection

Specification:

CAUTION:

1. Don't submerge the ev charging box in water;

2. Don't step on, fold or knot the cable;

3. Don't drop the EV charging box or place a heavy object on it;

4. Don't place the charging cable near high temperature object when charging；

5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；

6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；

It is suggested that the power distribution is done by the professionals；

7. Don't put fingers into the charging connector when the power plug is still connecting to the

power;

8. Don't use this EV charging box when the cable is damaged;

9. The ev charging box is only for ev charging using;

10. Don't use this device with an extension cord or adaptor.

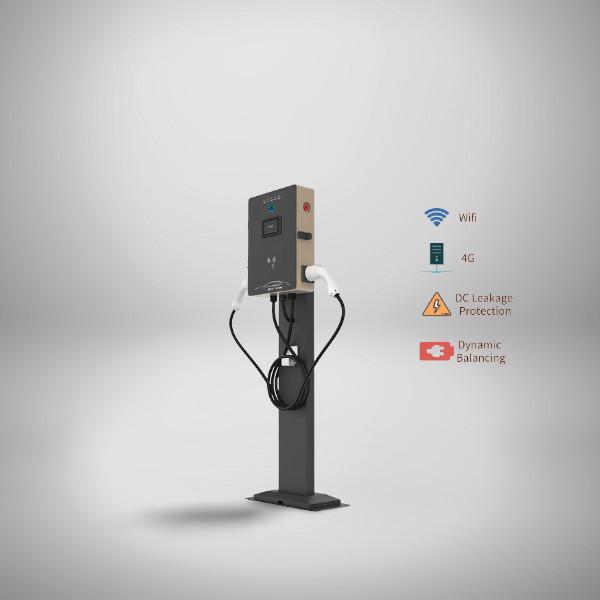

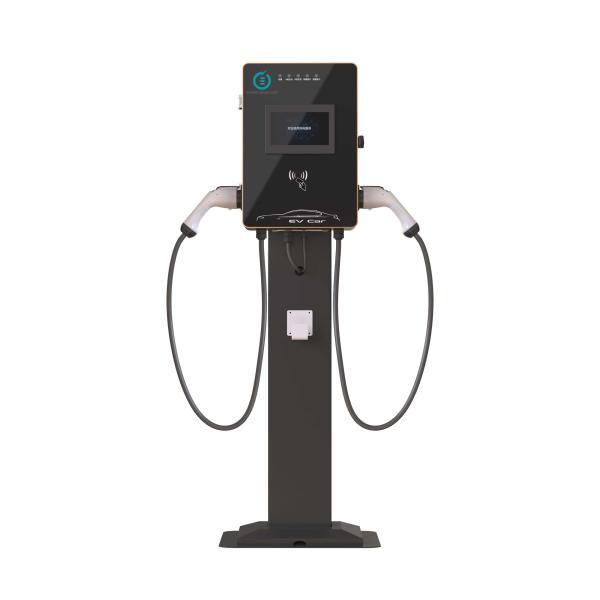

Product Display:
