EV Charging Box Adjustable Support Type 1 Type 2 Electric Vehicle ev charger Wallbox Ground Protection AC Charging Stati

Type 1 Type 2 EV Charging Station Wallbox

Products Description:

Upgrade 22kw EV charging stations wallbox.Current adjustable support 8-32A fast charging.IP54 waterproof not afraid of outdoor use.If you want to charging at home, it is easy to install and setup. Temperature control real time monitoring. Operationg temperature: -30℃to 55℃. Identification card ID prevent stealing electricity. Remote control provide free mobile APP.We believe this AC charging station can meet the needs of most customers.

Cable: high quality pure copper to reduce charging losses; TPU cover, lightweight and durable.

Protection:Over voltage; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.

Features:

Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 400V AC (3-phase), 32A (max.), 50 / 60Hz.
Output: IEC 62196, Type2 (European), Type 1
Charging control: Plug & Play / RFID card / app.
Screen: LED display.
Housing material: thermoplastic.
Front panel: tempered glass.
Screen color: customization.
Operating temperature: -30°C-50°C.
Operating humidity: <95% RH.
Safety class: IP54 (adapted to indoor and outdoor conditions).
Protection against: overheating, over-voltage, overload, under-voltage, short circuit,
surge, earth-leakage; ground protection.
Cooling: natural.
Dimensions: 75.5*54*22.
Weight: 16.34kg.

Specification:

CAUTION:

1. Don't submerge the ev charging box in water;

2. Don't step on, fold or knot the cable;

3. Don't drop the EV charging box or place a heavy object on it;

4. Don't place the charging cable near high temperature object when charging；

5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C；

6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket；

It is suggested that the power distribution is done by the professionals；

7. Don't put fingers into the charging connector when the power plug is still connecting to the

power;

8. Don't use this EV charging box when the cable is damaged;

9. The ev charging box is only for ev charging using;

10. Don't use this device with an extension cord or adaptor.

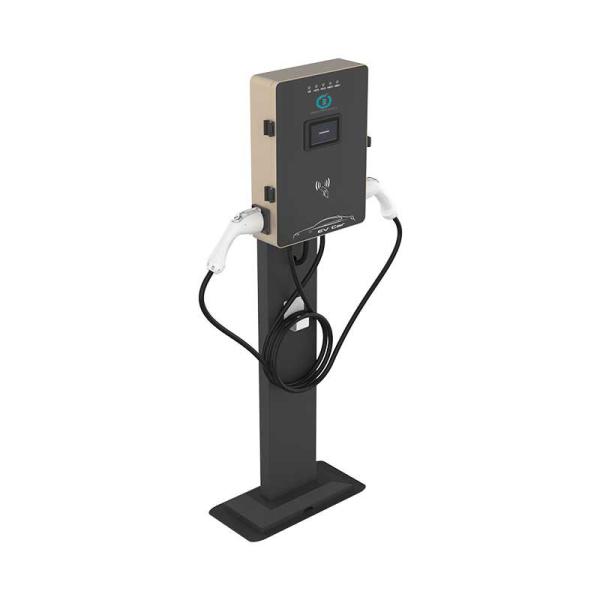

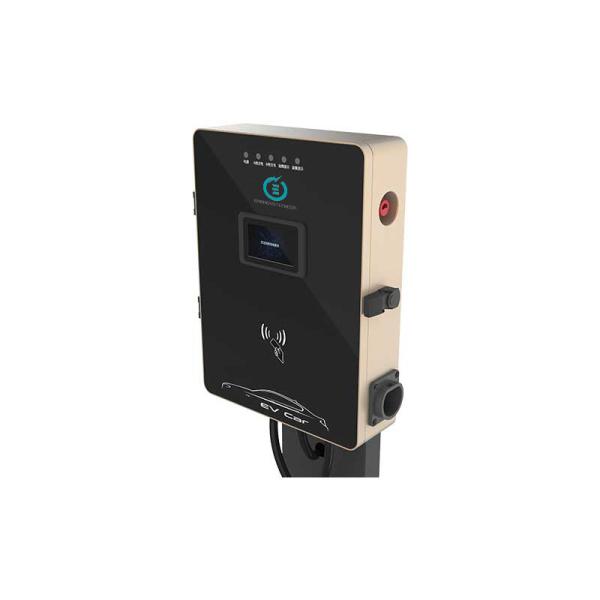

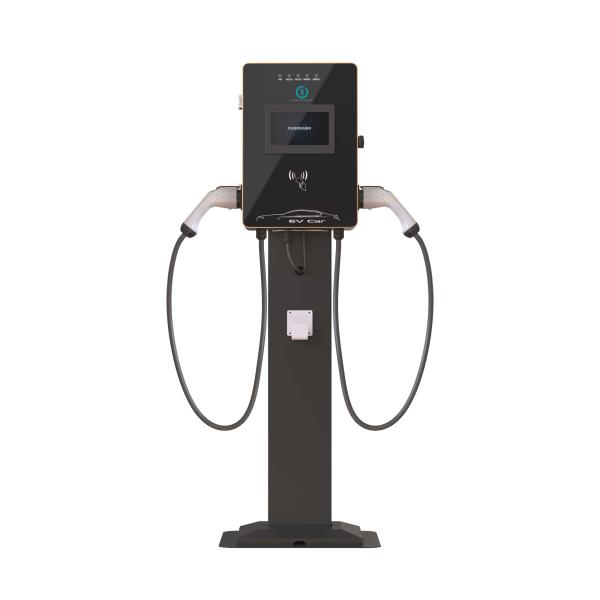

Product Display:

If you have any interests about our products, never hesitate to contact us!
