Specifications
Brand Name :
Energy splendor
Model Number :
180kw
Certification :
CE
Place of Origin :
Zhejiang
MOQ :
1
Price :
23864USD/piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000
Delivery Time :
7-14
Packaging Details :
Carton
Interface Standard :
CCS GB/T CHAdeMo
Output Power :
180kW
Input Voltage :
380V±20%
Connector :
CCS1 CCS2 GBT
Cable length :
5M(Customizable)
OCPP :
OCPP 1.6 JSON
Internet port :
internet/GPRS/4G
Degree of protection :
IP54
Description

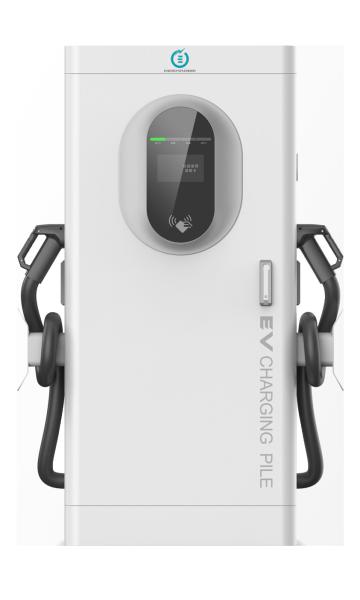

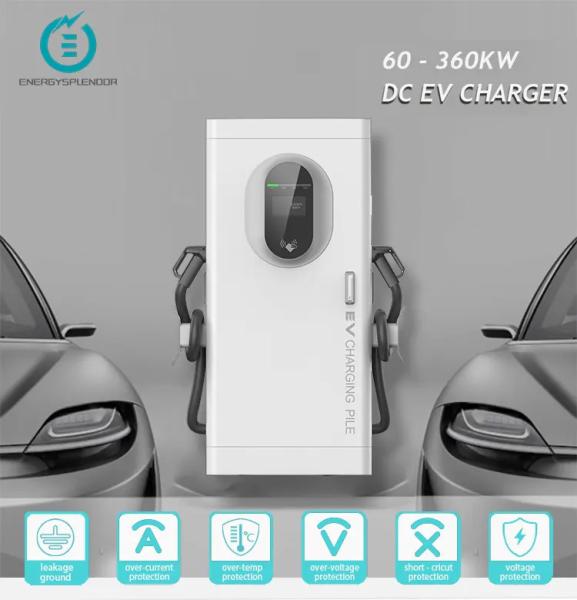

American/ European/ GB/T Type Ev Dc Fast Charger EV Charger Pile 180kw OCPP With RFID And 4G For Station

Functions

Surface treatment

Cold rolled steel plate+electrostatic sprayingBeautiful and gorgeous anti-shock design

Scram button

To prevent accidents, quickly cut off the the power supply Protect your car

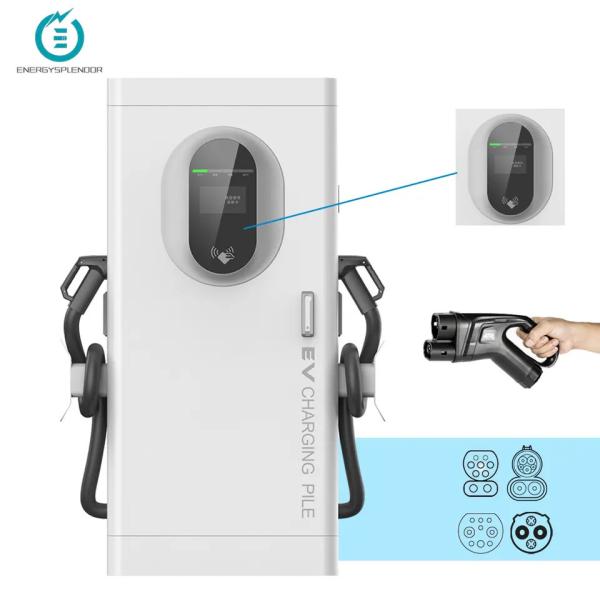

Charging gun

Suitable for 99% DCelectric vehicles pure electric new energy vehicles

Features

ES-DC-AF-180KW is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equipment installed outdoors.

IP54, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.

Warranty - 24-month warranty and life-time hassle-free technical support.

Applicable Scenes

Suitable for occasions such as city special charging stations that provide charging for bus, taxi, public service vehicles, sanitation vehicles, logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus; intercity highway charging stations and other occasions that need special DC fast charging.

Product
Integrated DC Chariging Station
Type
120KW 160KW 180KW
Dimensions
720*557*1700(mm)
HCI(Human-computer intersaction)
7 inch touch screen
AC power
380Vac±15% ; 50Hz±10% ; L1+L2+L3+N+PE
Rating Current
250-280A
Power Output Rating
120KW 160KW 180KW
Environmental
Elevation: ≤2000m; Temperature: -20°C~+50°C;
Charging Mode
Swipe card, Scan code
Networking Mode
4G,Wifi,Bluetooth,Ethernet
Operating Pattern
noncharge offline,charge offline, charge online
Protection Function
Over voltge; under voltage; over load; short circuit; earth leakage; ground protection surge protection, etc.
Connector Type
CCS1, CCS2,CHAdeMO, GB/T
Charging Cable Length
5m(customizable)
Protection Grade
Ip54

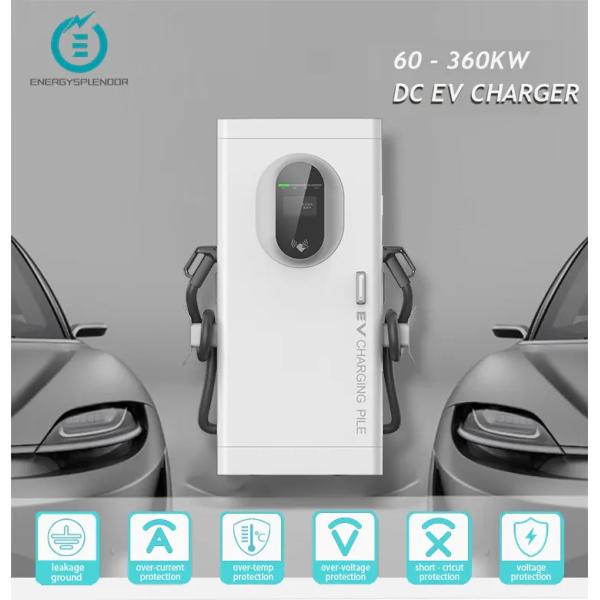

GB/T Type Dc Fast EV Charger Pile 180kw OCPP With RFID 4G For StationGB/T Type Dc Fast EV Charger Pile 180kw OCPP With RFID 4G For Station

FAQ

Q1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
