Specifications
Brand Name :
Energy Splendor
Model Number :
ES-AF03
Certification :
FCC,CE.TUV
Place of Origin :
China
MOQ :
1 unit
Price :
750-870USD/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7-15days
Packaging Details :
Carton/Wooden box
Product name :
22kW 32A AC EV Charger AC Fast EV Charging Station
Output Current :
0-32A
Input Voltage :
380V ±20%,
Charging Standards :
Type 1 Type 2 GB/T
Warranty :
24months
Certificate :
CE FCC ROHS
Communication :
WIFI / Ethernet / 4G(Optional)/2G
Output Power :
22kW/44kW
Application :
ELectric Veichles Charging Station
Installation Guidance :
Full installation guide Online
OCPP :
1.6JS
Color :
Customizable
Description

Wall-box Charging Stations For Electric Vehicle CCS2 Connector 44kw Fast AC EV Charger


Description:


The22kW/44kW Ev Charging Station is an electric vehicle charger that charges any EV up to 32amps with hardwired installation. lt comes with a cable with an SAE J1772/IEC 62196 connectorso it works with all electric cars. Its IP Grade is made to withstand the elements outdoors.
22kW and 44kW are the power output ratings for AC EV chargers. These ratings indicate the amount of power that the charger is capable of delivering to the EV's battery. The higher the power output rating, the faster the charging speed.

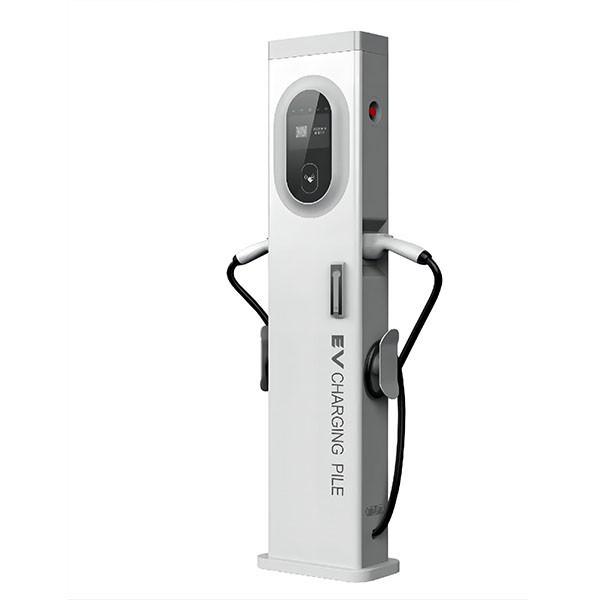

A 22kW AC floor-mounted EV charger is a type of electric vehicle (EV) charger that is designed to be installed on the floor of a parking lot or garage. It is capable of delivering up to 22 kilowatts of power to an EV's battery, which can provide a full charge in a relatively short amount of time.

The charger typically features a sturdy metal housing and is designed to withstand the elements and regular use. It may also come with a range of safety features, such as overcurrent protection and ground fault circuit interrupters (GFCIs), to ensure safe and efficient charging.

To use the charger, an EV driver simply needs to plug their vehicle into the charger using a compatible charging cable. The charger will then communicate with the vehicle's onboard computer to determine the optimal charging rate and duration.

Overall, a 22kW AC floor-mounted EV charger is a fast and convenient way for EV drivers to recharge their vehicles and can be a valuable addition to any parking facility or public charging station.



22kW AC EV Charger:
Output power: 22 kW/44kW
Input voltage: 380±20% AC three-phase
Maximum output current: 32A per phase/63A
Charging connector: Type 2 (IEC 62196)
Communication protocol: OCPP (Open Charge Point Protocol) 1.6
Dimensions (HxWxD): 51*36*143cm
Weight: 40kg
Operating temperature: -20°C to +50°C
Protection rating: IP54 (dust and water resistant)


44kW AC EV Charger:
Output power: 44 kW
Input voltage: 380-415V AC three-phase
Maximum output current: 63A per phase
Charging connector: Type 2 (IEC 62196)
Communication protocol: OCPP (Open Charge Point Protocol) 1.6 or higher
Dimensions (HxWxD): 51*36*143cm
Weight: 43kg
Operating temperature: -30°C to +50°C
Protection rating: IP54 (dust and water resistant)

Specification:

Model ES-AF03-1 ES-AF03-2
Technical features
Charging capacity 22KW 44kW(22kW+22kW)
Input/Output power 400VAC±20%-50/60Hz- 400VAC±20%-50/60Hz-
32A-3phase 32A-3phase
RCD 30Ma RCD Type A and DC 6Ma RCD function or Type B(optional)
Standby power <3W
Measuring accuracy 1%
OCPP OCPP1.6 Json(OCPP2.0 optional) For Public charger;
Communication WIFI / Ethernet / 4G(Optional)
User interface LED / LCD(4.3"/7") / RFID
Certificate/Compliance CE / EN/IEC 61851-1:2017, EN/IEC 61851-21-2:2018
Charging Interface Type 2 socket / 5M Cable
Special Protection Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Physical properties
Warranty 2 years
Protection IP54
Enclosure A
Installation Floor-Mounted
Cooling Natural cooling
Operating temperature -30°C to +55°C
Humidity Max.95%(non-regulating)
Product Dimensions 410*240*1400mm 410*240*1400mm

Package Dimension

 510*360*1430mm 510*360*1430mm
Net Weight 42Kg 42Kg
Gross Weight 43Kg 43Kg
