CXGN-12 Fixed Indoor Cubicle Type Switchgear Cabinet IP3X
CXGN-12 Fixed Indoor Cubicle Type Switchgear Cabinet IP3X
Specifications
Packaging Details :
Different packaging methods are adopted according to different modes of transportation
Rated Voltage :
Rated Voltage
Protection Level :
IP3X
Brand Name :
EUE Power
Lightning Impulse Withstand Voltage (Peak) :
75kV
Rated Peak Withstand Current :
125kA
1min Power Frequency Withstand Voltage (Effective Value) :
42kV
Payment Terms :
L/C,T/T,DDP,DDU
Price :
Negotiable
Rated Current :
1250A
Rated Short-Time Withstand Current :
50kA/4s
Place of Origin :
China
Product Name :
CXGN-12 Fixed Indoor Cubicle-Type Switchgear
Description

CXGN-12 Fixed Indoor Cubicle-Type Switchgear

The CXGN-12 Fixed Indoor Cubicle-Type Switchgear is a high-voltage distribution device with a combined C-type and G-type assembled structure. Engineered for reliability and safety, it is the ideal solution for modern power infrastructure.

Robust Construction: Features high-strength bolts and nuts for structural integrity.
Safety First: Reliable mechanical five-prevention interlocking system.
Enhanced Visibility: Integrated windows for easy observation of internal components.

Target Industries & Applications

  • 10kV indoor power distribution systems
  • Industrial and mining enterprises
  • Construction projects
  • New energy applications

Application

It is widely used in 10kV indoor power distribution systems for industrial and mining enterprises, construction projects, municipal infrastructure and new energy applications, providing power receiving, distribution, control, and protection.

Performance Advantages

  • Well-designed structure: The frame is formed by bending thin steel plates and assembled with high-strength bolts and nuts, providing high mechanical strength and light weight. The cabinet surface is powder-coated, offering excellent corrosion resistance, oxidation resistance and an attractive appearance.
  • Flexible operation: The circuit breaker, grounding switch, and cabinet door are equipped with reliable mechanical five-prevention interlocks, ensuring safe and flexible operation. The product is easy to install and maintain, with a long maintenance cycle. Complete configuration schemes are available and can be flexibly combined to meet the requirements of various power distribution systems.
  • High protection level: The switchgear is equipped with comprehensive anti-misoperation measures and reliable mechanical interlocks, meeting the five-prevention requirements of power systems.
  • Stable and reliable: Observation windows are provided on the doors of the circuit breaker compartment and cable compartment, allowing easy viewing of the circuit breaker position and status, as well as the operating condition of incoming and outgoing cables.

Product Photos

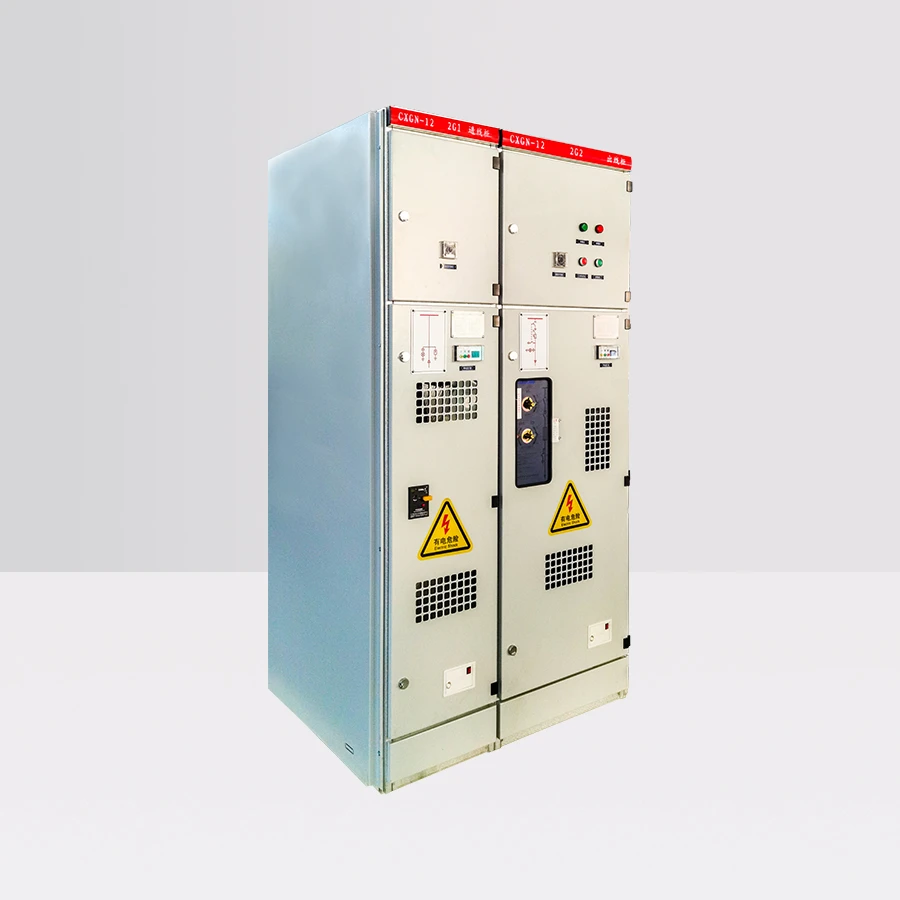

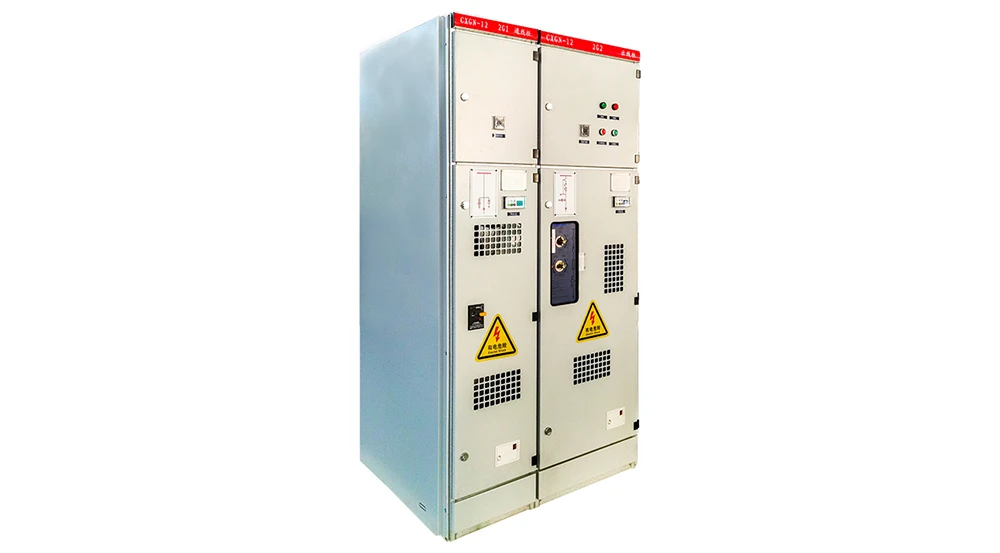

CXGN-12 Fixed Indoor Cubicle Type Switchgear Cabinet IP3XCXGN-12 Fixed Indoor Cubicle Type Switchgear Cabinet IP3X


Technical Parameters



Specification Unit Value
Rated voltage kV 12
Rated current kA 630,1250
Rated frequency Hz 50
Rated short-time withstand current kA 20-50,4S
Rated peak withstand current kV 50-125
Rated insulation level 1min Power frequency withstand voltage (effective value) kV 42/48
Lightning impulse withstand voltage (peak) 75/85
Protection level - IP3X
