GCK GCS MNS Low Voltage Draw Out Switchgear Cabinet IP40 IP30
GCK GCS MNS Low Voltage Draw Out Switchgear Cabinet IP40 IP30
Specifications
Model :
GCK
Rated Short-Term Withstand Current (Horizontal Bus) :
80kA/1s
Rated Peak Withstand Current (Horizontal Bus) :
176kA
Brand Name :
EUE Power
Rated Frequency :
50Hz
Power Frequency Test Voltage :
1890V/5s
Price :
Negotiable
Rated Current (Horizontal Bus) :
4000A
Payment Terms :
L/C,T/T,DDP,DDU
Packaging Details :
Different packaging methods are adopted according to different modes of transportation
Place of Origin :
China
Protection Grade :
IP40/IP30
Product Name :
GCK GCS MNS Low-Voltage Draw-Out Switchgear
Rated Operational Voltage :
Rated Operational Voltage
Rated Insulation Voltage :
AC 660/690V
Description

GCK/GCS/MNS Low-Voltage Draw-Out Switchgear

The GCK/GCS/MNS Low-Voltage Draw-Out Switchgear is a high-performance solution composed of a power distribution center (PC) cabinet and a motor control center (MCC) cabinet. Engineered for demanding industrial environments, it ensures maximum safety, reliability, and operational intelligence.

  • Modular Design: Flexible combinations for diverse power configurations.
  • High Capacity: Supports rated currents up to 4,000 A (MNS up to 6,300 A).
  • Intelligent Monitoring: Advanced structure for real-time system oversight.
  • Wide Compatibility: Designed for AC 50/60 Hz systems with voltages up to 690 V.

Application

The switchgear is designed for various power supply and distribution applications and is widely used in low-voltage distribution systems for power plants, substations, industrial and mining enterprises, buildings, hotels, municipal projects and other fields.

It complies with relevant standards such as IEC 60439-1 and GB/T 7251-2017 for low-voltage switchgear and controlgear assemblies.



Performance Advantages


  • Advanced structure: The door of the MCC drawer compartment is mechanically interlocked with the operating handle of the circuit breaker or isolating switch. The door can only be opened when the handle is in the open position.The drawers for the power switch, contact switch and MCC cabinet are designed with three positions: connected position, test position and disconnected position, ensuring safe and convenient operation.
  • Modular design: The switchgear is easy to expand and can accommodate a large number of circuits. It adopts a modular structure with mounting holes, offering strong component interchangeability, space saving and convenient maintenance. A busbar bridge can be installed on the top of the switchgear according to the requirements of the incoming power connection.
  • Safe and reliable: The upper section of the cabinet is the busbar compartment, the front section is the functional unit compartment, and the rear section is the cable compartment. Steel plates or insulating plates are installed between compartments to ensure safe operation and effective isolation.
  • Standardized design: With a reasonable structure, flexible configuration and strong universality, the switchgear meets the standardized design requirements of power grid applications.
  • Flexible combinations: Drawers of the same functional unit offer good interchangeability. With drawer units as the main configuration, both draw-out and fixed-type solutions are available, allowing flexible combinations for different applications.
  • High protection level: The cabinet protection rating can reach IP30 or IP40, selectable according to user requirements.
  • High degree of intelligence: The switchgear can be connected to an intelligent operation and maintenance platform, uploading temperature data and various operating status signals to the backend for intelligent monitoring and control.


    Product Photos

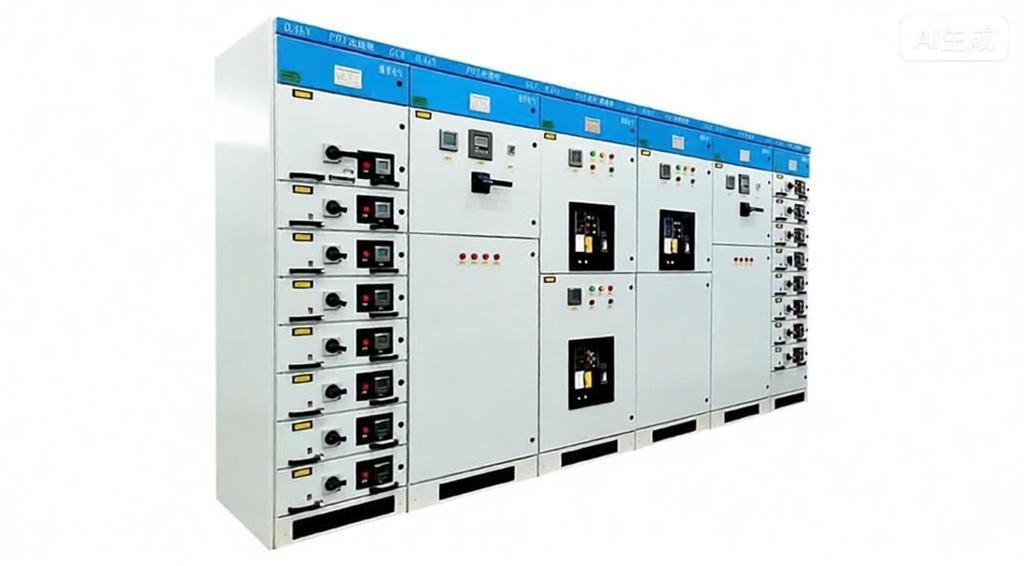

    GCK GCS MNS Low Voltage Draw Out Switchgear Cabinet IP40 IP30


Technical Parameter

GCK
Technical Parameter Unit Value
Rated operational voltage V AC 380/400
Rated insulation voltage V AC 660/690
Rated frequency Hz 50
Rated current Horizontal bus A 600~4000
Vertical bus A 800~1250
Rated short-term withstand current of horizontal bus kA/1s 30/65/80
Rated peak withstand current of horizontal bus kA 63/143/176
Rated short-term withstand current of vertical bus kA/1s 30
Rated peak withstand current of vertical bus kA 63
Power frequency test voltage V/5s 1890
The protection grades IP40/IP30
GCS
Technical Parameter Unit Value
Rated operational voltage V AC 380
Rated insulation voltage V AC 660
Rated frequency Hz 50
Rated current Horizontal bus A 600~3150
Vertical bus A 630~1000
Rated short-term withstand current of horizontal bus kA/1s 30/65
Rated peak withstand current of horizontal bus kA 63/143
Rated short-term withstand current of vertical bus kA/1s 15/30
Rated peak withstand current of vertical bus kA 30/63
Power frequency test voltage V/5s 1890
The protection grades IP30
MNS
Technical Parameter Unit Value
Rated operational voltage V AC 380/400
Rated insulation voltage V AC 660/690
Rated frequency Hz 50
Rated current Horizontal bus A 400~6300
Vertical bus A 200~1250
Rated short-term withstand current of horizontal bus kA/1s 30/80/100
Rated peak withstand current of horizontal bus kA 63/176/220
Rated short-term withstand current of vertical bus kA/1s 30/50
Rated peak withstand current of vertical bus kA 63/105
Power frequency test voltage V/5s 1890
The protection grades IP41/ IP40/ IP30



About EUE Power – Your Trusted Power Distribution Equipment Manufacturer

EUE Power is a China-based manufacturer specializing in power distribution equipment and energy storage products for global industrial, commercial, and renewable energy applications.

With professional manufacturing capabilities and OEM/ODM support, EUE Power supplies reliable power distribution products including distribution transformers, compact substations, switchgear, UPS systems, and battery energy storage systems.

Our factory combines engineering expertise, strict quality control, and flexible production capabilities to meet different market requirements worldwide.

Whether you are looking for a reliable distribution transformer supplier, compact substation manufacturer, switchgear supplier, or energy storage equipment partner, EUE Power provides dependable products and professional support.

Partner with EUE Power for:

  1. Stable manufacturing quality
  2. Customized OEM/ODM services
  3. Competitive factory pricing
  4. International export experience
  5. Professional technical support

EUE Power — Reliable Power Equipment Manufacturer for Global Markets.
