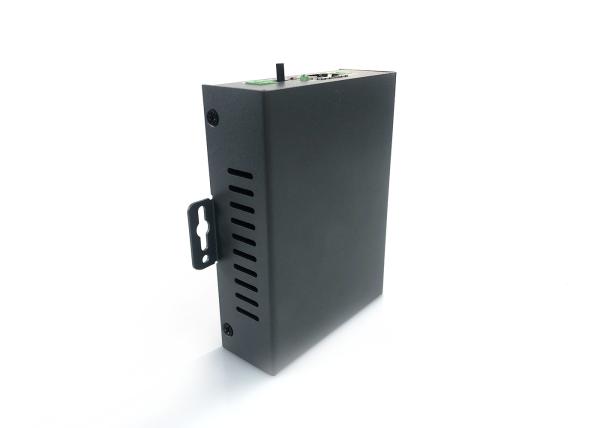

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption
95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption
95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption
95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption
95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption
95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption
Specifications
Brand Name :
MESTECHS
Model Number :
MPL80-F-4
Place of Origin :
CHINA
MOQ :
2
Payment Terms :
T/T
Delivery Time :
35 work days
Supply Ability :
1000 piece/ Month
Price :
Negotiable
Packaging Details :
Common Package
Long range :
up to 500m/1600ft
Medium :
copper
Broadband :
up to 95Mbps(UDP)
Small size :
100X74X26mm
Description

Ethernet Cable Extender MPL80-F-4 long distance 500m high transmissior speed 95Mbps

  • MPL80-F-4 network extender is a high-speed network transmission equipment. Based on OFDM modulation and demodulation technology, it can be transmitted by any two core wires, such as twisted pair,coaxial cable, power line, etc. The maximum transmission distance can reach 500 meters (1 mm diameter Coaxial cable), and the maximum physical layer rate can reach 240 Mbps.
  • Power supply, signal common cable transmission, easy construct, cost savings;
  • Support point to point and point to multi-point data transmission.
  • The power consumption of the whole machine is less than 2W.
  • Compliance with EU EN-50561 Standard and Specification.

Transmission medium:

MPL80-F-4 can transmit data on copper lines such as coaxial cables,telephone lines, twisted pair lines, shoulder lines, armored cables, power lines, etc..

Type of cable

Transmission distance

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power ConsumptionCoaxial cable

500m@1mm diameter

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power ConsumptionArmoured cable

500m@1mm diameter

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power ConsumptionTwisted pair

500m@ 0.5mm diameter

500m@0.4mm diameter

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power ConsumptionPower line

 500m

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power ConsumptionShoulder line

500m@1mm diameter

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption

Typical application:

Industrial video surveillance

Elevator swipe control management system

MPL80-F-4 can support point-to-point communication and can also support point to multi-point communication of bus structures.

Point to point.

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption

Point to multi-point

95Mbps 500m Ethernet Cable Extender , Ethernet Cord Extender Low Power Consumption

Electrical Characteristics:

Category Item Parameter
Power Input DC12V
Transmission Power dissipation ≤2W
Transmission Medium Telephone lines, twisted pair lines, shoulder lines, armored cables, power lines, etc..
Communication distance up to 500m
Bandwidth up to 95Mbps(UDP)
Multicast Support for IGMP multicast protocol
Ethernet 10M, 100M Adaptive

Connector

 Power in(VIN=12VDC) Junction seat(Distance 3.81 mm)
Ethernet (data) RJ45(1,2 and 3,6)
Network signal input and output Junction seat(Distance 3.81 mm)

Indicator Light

 PWR Power indicator. Turn on the power.
LNK Signal connection light, when the main slave device signal connection, when the main slave device is not connected
RJ45 yellow and green light Network communication indicator light, flashing when communicating

Appearance

 Size 100mm(not include master dialing switch) X 74mm(not include Hanging ears) X 26mm
Color gray
Weight 160 g

Environmental Requirements

 Operating temperature -40℃-70℃
Humidity 0-95%
Storage temperature -40℃-85℃

Order Information

Product Description Order Code

Ethernet Network Extender MPL80-F-4
