Specifications
Brand Name :
ShangXu
Model Number :
SX-QTK175 QMS
Certification :
CE certificate
Place of Origin :
Guangzhou
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
7 work days
Packaging Details :
Standard Export Packing Cartons with Foam and other protection material
Name :
queue management system
Language :
English/Arabic/French/Russian.etc multiple language supported
Function :
Queue management,Smart Queuing Tickets printer
Material :
Cold Rolled Steel
Warranty :
1 free year
Printer :
80mm Thermal Printer
Usage :
QUEUE MANAGEMENT
Touch screen :
IR Touch panel
Os :
Windows
Power supply :
110-240V 50HZ/60HZ
Type :
wired / wireless
Description

Wired Wireless Queue System 21.5 Inch All In One Touch Ticket Number Machine

21.5 inch Shangxu all in one Windows bank hospital self service touch screen ticket dispenser queue management system

Queue Management System by Shangxu Technology

Shangxu bring the latest queue management system for Hospital, Banking institution. Having an efficient hospital queue management system has now become a necessity at health care institutions especially when the patients visiting the facility are either frail health, making it difficult for them to queue for long periods of time until a medical practitioner is available to treat them.

Our hospital queue management system helps manage a seamless flow of patients right from an initial entry point to check out. Also managing long queues during peak business hours has always been a huge problem for banks. Our queue management systems are specially designed for banks allowing them to reduce queue lengths and increase staff productivity and operational efficiency.

Key Features:

  • System supports up to 32 services and 64 counters
  • Supports multiple dispensers of various types (Switch based, Touch Screen KIOSK and mixed)
  • Built in Digital Signage for Promotional videos, slides and multilingual text on TV based Master Displays.
  • Token number displays for the counters
  • Multilingual display and printing
  • Multilingual Voice announcement
  • Windows OS based.
  • Sub menu service selection.
  • Detailed management reports and analytical data
  • Graphical reports
  • Easy data backup and restore
  • Multiple provisions for priority customers
  • Option of form based data collection against each token
  • Transfer a token. An operator can transfer a token to another service. On completion at forwarded service, the token is returned back to sender counter on priority.
  • Facility to split services across several dispensers
  • Facility to have multiple token printing station spread across the network
  • Facility to have separate Main Displays for each department

Complete Accessories Of Queue Management System

1.Touch Screen Ticket Dispenser

2.Calling Pad

3.LED Counter Display

4.LED/LCD Main Display for Waiting Room

5.Customer Feedback Terminal (optional)

Technical Parameter for Queue Ticket Dispenser Kiosk

Item & Picture Specification

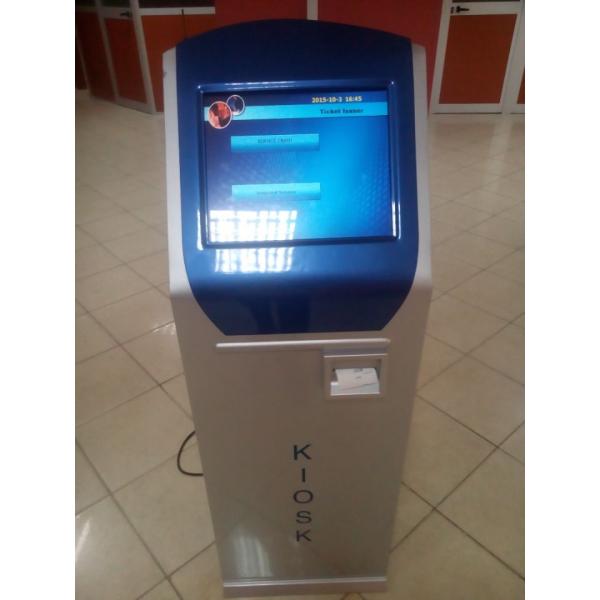

21.5"Touch screen Ticket Dispenser

Model:SX-QTK180

Dimension(W*H*D):420*1430*390mm

Net Weight:40KG

  • All in one cold steel stand
  • 21.5 inch LCD Display
  • 21.5 inch IR Touch Screen
  • Inbuilt Mini PC

CPU Intel Dual Core 2.41Ghz

64G,4G DDR3 RAM ;6 USB Port

OS:WINDOWS

  • 80mm Thermal Printer with automatic ticket cutter

Print Method:Thermal line printing

Ticket:Ability to print your company Logo

  • Ethernet Port:10/100 Ethernet port RJ45,Internet Access available
  • Inbuilt Audio and amplifier,and with speaker for queue ticket number calling voice
  • English,Arabic,Romania,Greece,Thai,French,Italian,Russia,Malaysia and etc local multiple language also can support
  • Sub Menu supported
  • Support for 1-32 Services, 1-64 Counters
  • Software keypad also included
  • Inbuilt Wireless Module
  • Power Supply:110V-240V,50-60HZ

Complete Queue Management System Software

Unicode Queue Machine Software
Item Function
1. Queue Controller System Program Control the whole system
2. QueuePlatform software Custom set up the queue machine
3. Ticket Issuer Software take a queue number ticket and can customize the background picture and button picture and can design the button position and etc
4. Queue Report System Software give out enough useful reports
