17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
17 Inch LCD Service Center Queue Ticketing System
Specifications
Brand Name :
ShangXu
Model Number :
SX-QMS088
Certification :
CE certificate
Place of Origin :
Guangzhou
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
7 work days
Packaging Details :
Standard Export Packing Cartons with Foam and other protection material
Name :
queue management system
Language :
English/Arabic/French/Russian.etc multiple language supported
Function :
Queue management,Smart Queuing Tickets printer
Material :
Cold Rolled Steel
Warranty :
1 free year
Printer :
80mm Thermal Printer
Usage :
QUEUE MANAGEMENT
Touch screen :
IR Touch panel
Os :
Windows
Power supply :
110-240V 50HZ/60HZ
Type :
wired / wireless
Description

17 Inch LCD Service Center Queue Ticketing System

Bank clinic use wireless queue management system with 17 inch lcd display

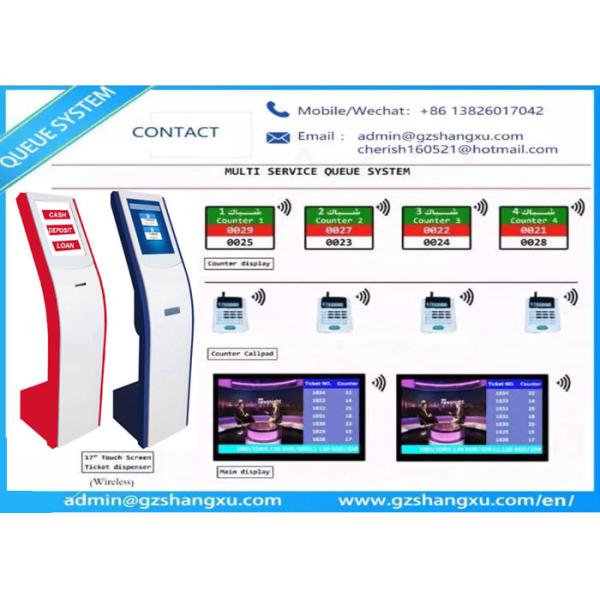

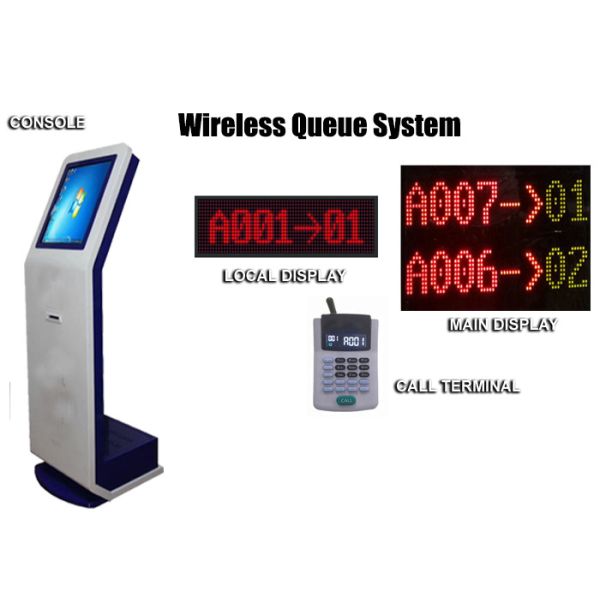

Wireless Queue Management Systems

Manage your queues and enhance customer satisfaction

Queuing is one of the biggest dis-satisfiers in stores, hospitals, banks and government institutions and a structured approach to queuing is being expected by a large number of customers and citizens.

Shangxu Technology Company is by far the profesisonal and experienced supplier of queue management systems. Our system puts you in control of your customer’s experience. It allows you to define the way your team will handle customers when they visit your branch – any of your branches. It allows your whole organisation to work in harmony – no matter how large or complex it is. A Queue Management system from Shangxu helps you organize your queues by providing visitors with various queuing solutions.

Some of the major features of our solution are:

  • A total range of system covering basic queuing system need to sophisticated, multi branch, multi-region enterprise solutions.
  • Multiple Language can be supported
  • Software and hardware engineered to work together and proved in thousands of installations.

KEY BENEFITS

  • Manage and minimize queues to improve efficiency and customer experience.
  • Gather statistics in our system to drive operational excellence.
  • Improve sales and lower your cost.

Technical Specification for Queue Management System Accessories

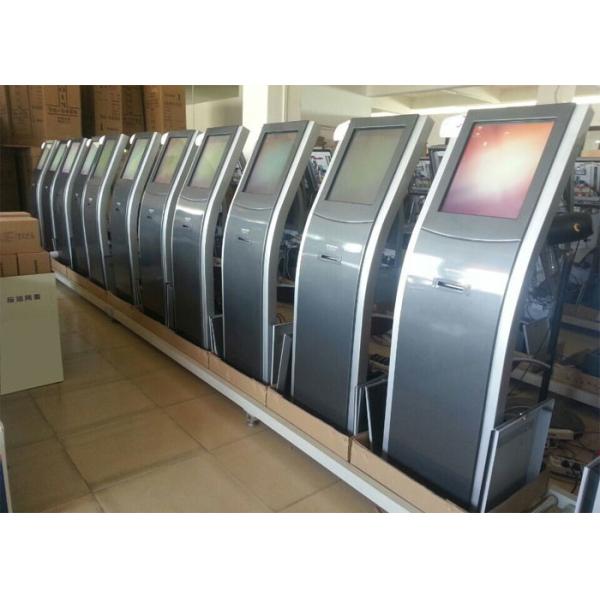

Ticket Dispenser SX-QTK171
Cabinet All in one cold steel cabinet
LCD Display 17” SAMSUNG LCD Display with resolution of 1280*1024
Touch Screen 17” IR Touch Screen
Thermal Printer

80mm Epson Thermal Printer with auto cutter

Ticket Include (Time, Date, Ticket No., Number of Waiting Ticket, Service Name & Type, Counter Number ,your company logo and other advertising text ...).
PC Configuration

CPU: Intel 2.41Ghz

4G DDR3,64G SSD,6 USB port

Windows OS installed
Speaker Inbuilt amplifier and 2 speakers
Power Supply 110V-240V

Queue Management System Software

1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function

2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable

3.Arabic,English,Bengali,French,Russia,Spanish and etc multiple language can be supported

Counter Call Pad Unit SX-QKP21

Press Button 21 multiple function button
LCD Display 8 digits lcd display,5 digits showing the queue number of the called customer,3 digits display for number of customer waiting .
Power Supply 5V
Communication Wired or Wireless
Multiple function Button “Call”, “Recall”, “Transfer””Special Call””Store queue and callback” and etc.

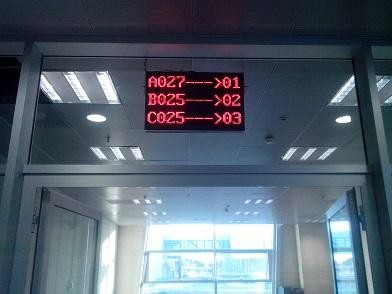

Counter LED Display SX-CD04

Specifications for LED Counter Display:

8 Digits RED Color LED Counter Display

4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number

The display format can be customized

110V-240 V Power Supply

Wired or Wireless available

Multimedia Player Box with Queue Status Display SX-MPB06

Specifications for Player Box :

* CPU: Dual Core 2.4GHZ

Memory 4G, SSD 64G

* OS: windows

*Inbuilt Multimedia and Queue Number Software,can split the screen to many zones,one side can play the advertising video,another side can play the queue information,at the bottom side can display the running text. by using the player box, make the queue number showing on the LCD screen

*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ;

*Supported video formats: MPEG-1,MPEG-2

MP@HL,MPEG-4 ASP@L5,etc

*Image formats supported:JPG, BMP, static GIF

Queue Management System Software

Unicode Queue Machine Software
Item Function
1. Queue Controller System Program Control the whole system
2. QueuePlatform software Custom set up the queue machine
3. Ticket Issuer Software take a queue number ticket and can customize the background picture and button picture and can design the button position and etc
4. Queue Report System Software give out enough useful reports

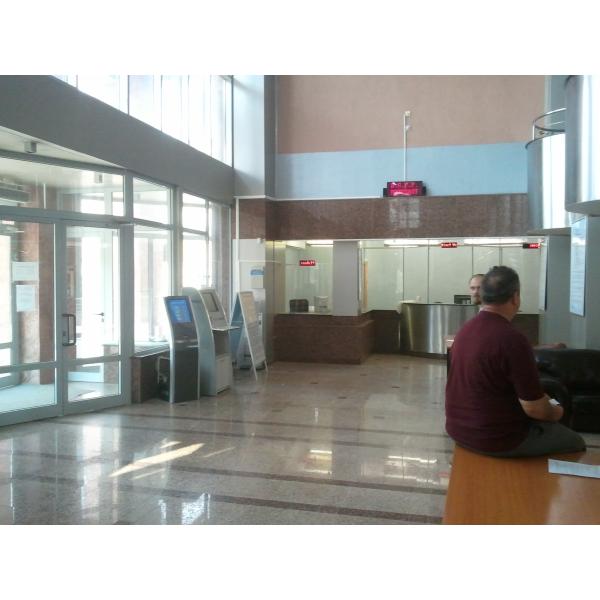

Our Shangxu Queue Management System Solution widely used in Below Customer Service Cneter

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System

17 Inch LCD Service Center Queue Ticketing System
