Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Customized Color Wired Service Center Queue Ticketing System
Specifications
Brand Name :
ShangXu
Model Number :
SX-QMS060
Certification :
CE certificate
Place of Origin :
Guangzhou
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
500 set per month
Delivery Time :
7 work days
Packaging Details :
Standard Export Packing Cartons with Foam and other protection material
Name :
queue management system
Language :
English/Arabic/French/Russian.etc multiple language supported
Function :
Queue management,Smart Queuing Tickets printer
Material :
Cold Rolled Steel
Warranty :
1 free year
Printer :
80mm Thermal Printer
Usage :
QUEUE MANAGEMENT
Touch screen :
IR Touch panel
Os :
Windows
Power supply :
110-240V 50HZ/60HZ
Type :
wired / wireless
Description

Customized Color Wired Intelligent Bank/Hospital Customer Care Service Center Touch Queue Management Ticket System

Overview

With Our this queue management system, there is no long waiting queue. When they arrive, customers receive a ticket which tells them of their position in the queue. They are free to browse, relax or watch media on screens while they wait. When the next operator is free, the customer is called forward for service.

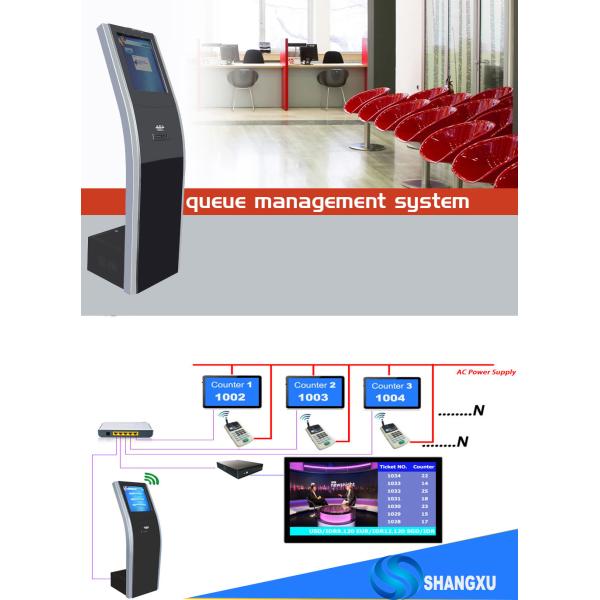

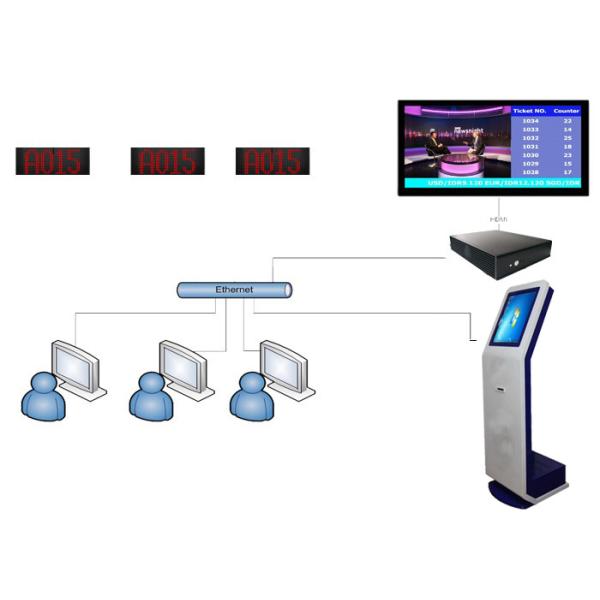

Component Of Queue Management System :

Ticket dispensers with multiple languages
Counter Calling Terminal
LED/LCD Counter Display
LED/LCD Main Display
Customer Feedback Terminal(Ootional)
Real Time Report System

Technical Datasheet for each queue management system component

Specification for touch screen queuing ticket machine SX-QTK171
Cabinet All in one cold steel cabinet
LCD Display 17” SAMSUNG LCD Display with resolution of 1280*1024
Touch Screen 17” IR Touch Screen
Thermal Printer

80mm Thermal Printer with auto cutter

Ticket Include (Time, Date, Ticket No., Number of Waiting Ticket, Service Name & Type, Counter Number ,your company logo and other advertising text ...).
PC Configuration

CPU: Intel 2.41Ghz

4G DDR3,64G SSD,6 USB port

Windows OS installed
Speaker Inbuilt amplifier and 2 speakers
Power Supply 110V-240V

Queue Management System Software installed

1.Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, and can realize the report statistic function

2.Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, the information can be editable

3.Arabic,English,Bengali,French,Russia,Spanish and etc multiple language can be supported

Specification for 21 buttons callkeypad SX-QKP21
Press Button 21 multiple function button
LCD Display 8 digits lcd display,5 digits showing the queue number of the called customer,3 digits display for number of customer waiting .
Power Supply 5V
Communication Wired or Wireless
Multiple function Button “Call”, “Recall”, “Transfer””Special Call””Store queue and callback” and etc.

Specification for LED Counter Display SX-CD04

8 Digits RED Color LED Counter Display

4 digits display ticket number & 2 digits display for counter number,with Arrow for direction to the counter number

The display format can be customized

Wired or Wireless solution supported

Specifications for Player Box which connect to your TV display :

* CPU: Dual Core 2.4GHZ

Memory 2G, SSD 32G

* OS: windows

*Inbuilt Multimedia and Queue Number Software,can split the screen to many zones,one side can play the advertising video,another side can play the queue information,at the bottom side can display the running text. by using the player box, make the queue number showing on the LCD screen

*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ;

*Supported video formats: MPEG-1,MPEG-2

MP@HL,MPEG-4 ASP@L5,etc

*Image formats supported:JPG, BMP, static GIF

Description

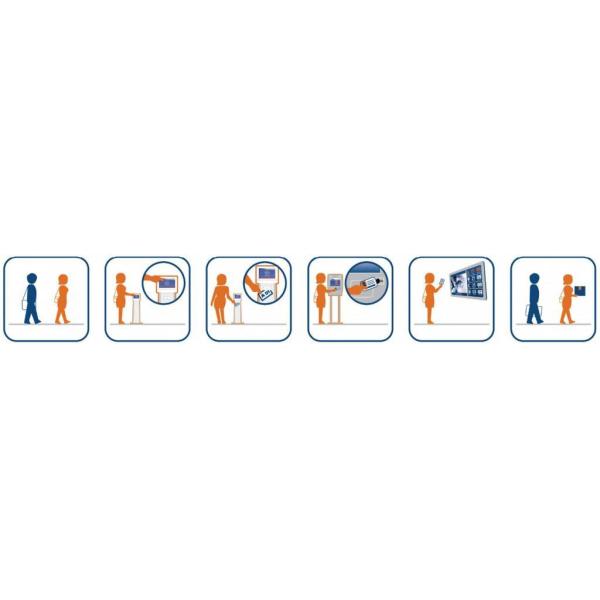

HOW DISPERSED QUEUING WORKS

When a customer enters a service site, they take a ticket from the ticket dispenser for their intended service. At this point, the customer is able to select the service they require allowing them to be put directly in the queue, and directed to a specialist member of staff. Once the ticket is issued, the customer is free to browse, relax or watch corporate TV while waiting.

The ticket can inform the customer of their position within the queue, the time and date of take a ticket and other welcome message in multiple language.

When the next available operator is free, the customer is called for service.
