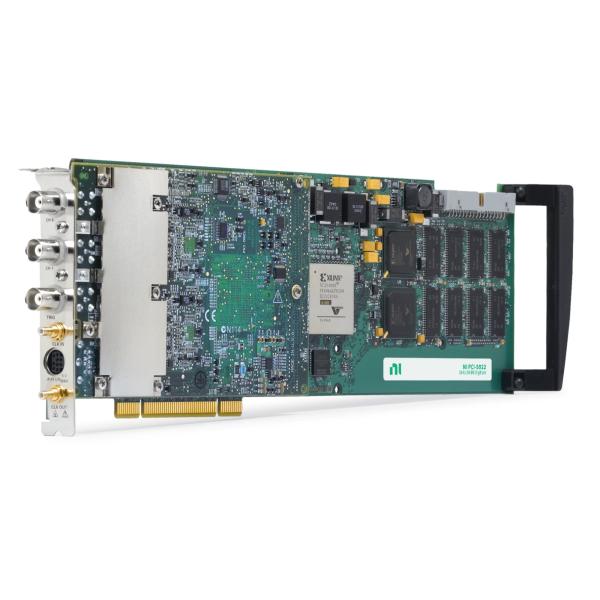

国家仪器 PCI-5922 示波器设备

National Instruments制造的PCI-5922示波器装置(部件编号:779659-01, 779659-02, 和 779659-03)非常适合性能音频测试,无线通信,卫星,超声医学成像,信号情报,基带I & Q,质谱分析和其他应用.National Instruments的PCI-5922示波器装置具有高分辨率,最大带宽为6 MHz,两个电压输入通道,高达24位的多功能测量范围以及高达每秒15 MS的采样率.

PCI-5922 有两种类型的应用程序编程接口(API):NI-SCOPE SFP 和 NI-SCOPE 仪器驱动程序.NI-SCOPE SFP 采集,调节,评估和显示信息,类似于传统的示波器.此 API 在 PC 上运行,因此用户可以从计算机查看和调节波形.多个 NI-SCOPE SFP 会话可以同时运行.另一方面,NI-SCOPE 仪器驱动程序安排和利用示波器的硬件,并通过 LabVIEW,LabWindows/CVI,Measurement Studio,Microsoft Visual C/C++,.NET 等应用程序编程接口提供定制的采集,控制,评估和测量功能.设备硬件可以通过 Measurement & Automation Explorer (MAX) 工具进行配置.

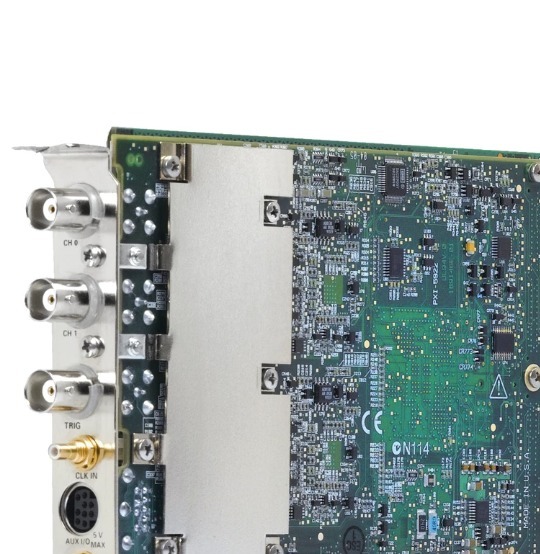

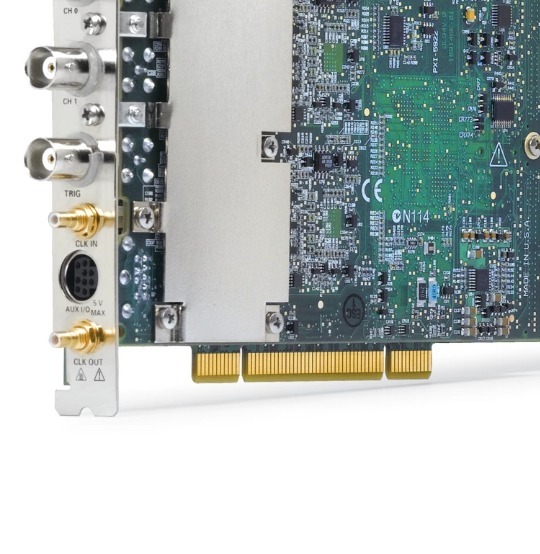

Other features of the NI PCI 5922 include: adaptable settings for voltage range and coupling, numerous triggering modes, a large onboard memory, along with an instrument drive that contains data streaming and assessment functions. The device is equipped with a 9-pin mini-circular DIN, 2 BNC female, and 2 SMB front panel connectors. The NI instrument can both be self-calibrated and externally calibrated. However, external calibration is recommended at least once in 2 years.

In addition, there are several different versions of the National Instruments PCI-5922 model. The only variation between models is the onboard memory size. The smallest capacity for the onboard memory is 8 MB per channel (part number 779659-01). The next is 32 MB (part number 779659-02) and the largest is 256 MB per channel (part number 779659-03). The 32 and 256 MB/channel versions can be utilized with the Spectral Measurements Toolkit for advanced frequency-domain measurements in avionics, signal intelligence, and communications applications. The device weighs 14.6 oz., and measures 14 x 0.8 x 4.4 in. in dimension.

板载数字下变频器:无
总线连接器:PCI
示波器最大带宽:6 MHz
最大采样率:15 MS/s
模拟输入电压范围:-5 V到5 V
模拟输入分辨率:24位
密封:是
电压输入通道数:2
