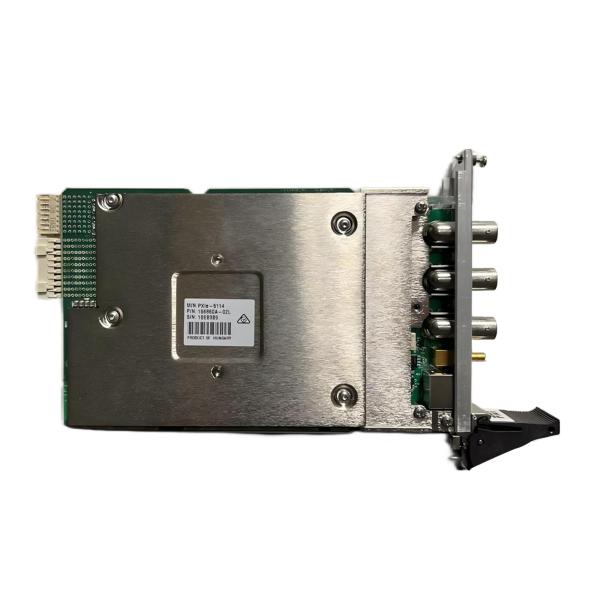

National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
National Instruments PXIe-5114 Ni Pxi Oscilloscope 250MS/S Sampling Rate 125MHz Bandwidth
Specifications
Price :
$10,000/sets >=1 sets
Place of Origin :
China
MOQ :
one
Packaging Details :
standard packaging
Delivery Time :
Delivery time for minimum order quantity ≤ 30 days
Payment Terms :
T/T ‌L/C
Supply Ability :
100 units/day
Brand Name :
National Instruments
Model Number :
PXIe-5114
warranty :
3 months
customized support :
OEM
place of origin :
American
brand name :
National Instruments
model number :
PXIe-5114
Description

国家仪器 PXIe-5114 PXI 示波器

国家仪器PXIe-5114(部件编号:783591-01, 783591-02, 和783591-03)示波器具有两个通道,每个通道可以以高达250 MS/s的速度采样,并且具有可调节的耦合,阻抗,电压范围和滤波设置.NI PXIe-5114示波器还具有几种不同的拍摄模式,深度内部存储器和集成了信息记录和检查功能的仪器控制器.这个型号非常适合需要快速信号和可调节估算设计的应用,最高数据传输能力为125 MHz.PXIe-5114还具有高级PXI同步和数据记录功能.该设备配备了3个BNC母头,1个SMB插孔和一个9针迷你圆形DIN连接器,总功耗为21.63 W.

该型号提供了一个直观的软前面板和配置.NI-SCOPE软前面板(SFP)允许对NI PXIe-5114进行直观控制.在NI-SCOPE SFP版本14.1中,对PXIe-5114的智能控制最为便捷.NI-SCOPE SFP被集成到NI-SCOPE媒体中.NI Measurement Automation Explorer(MAX)工具还提供了交互式配置和测试设备,用于NI PXIe-5114.MAX被集成到NI-SCOPE媒体中.该设备建议的预热时间为15分钟,并且应至少每2年进行一次外部校准.

这款示波器具有以下功能:

• 棱沿,窗口,滞后和高级触发,具有 40 ps 时间戳

• 单次记录模式和多次记录模式下的预触发和后触发采集

• 内部250 MHz时钟或外部50到250 MHz时钟

• 相位螺栓到PXI 10 MHz参考或外参考从1到20 MHz

• 带有100 ps分辨率的时间戳触发事件

• IVI兼容的NI-SCOPE驱动程序,适用于NI LabVIEW和LabWindows/CVI,并且还支持Microsoft C++,Measurement Studio和Visual Basic,内置超过50种估算

• NI-SCOPE 软件前面板用于智能控制.

NI设备重量为17.7盎司,尺寸为8.4 x 0.8 x 5.1英寸.建议工作温度范围为0 °C至55 °C,存储温度范围为-40 °C至71 °C,工作和非工作随机振动分别为0.3 grms和2.4 grms,频率范围均为5 Hz至500 Hz.

总线连接器:PXI Express
模拟输入阻抗:1 MΩ,50 欧姆
最大示波器带宽:125 MHz
最大采样率:250 MS/s
模拟输入电压范围:-20 V 到 20 V
模拟输入分辨率:8 位
FPGA:-
电压输入通道数:2

功能 PXIe5114 低成本 PXI 示波器设备具有两个通道,采样率高达 250•MS/s,提供灵活耦合,阻抗,电压范围和滤波设置.

PXIe,125 MHz,250 MS/s,8位PXI示波器
