40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
Specifications
Model Number :
EVCCS20D
Place of Origin :
Sichuan, China
Delivery Time :
7-15 Working days
Output power range :
40kW 60kW
Price :
Negotiable
Packaging Details :
76*26*24MM 65KG
Supply Ability :
10000 Piece/Pieces per Week
Rated Voltag :
400V
Payment Terms :
T/T,L/C,Western Union,Paypal,Alipay,Cash
Standard :
CCS1/CCS2/CHAdeMO/GBT/NACS
Brand Name :
Sixpence
MOQ :
1 pieces
Product Name :
DC Charging Station 40kW 60kW CCS1 CCS2 GBT CHADEMO TESLA Home Fast Ev Charger DC Station For Electric Cars Vehicles
Description

40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages

40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages

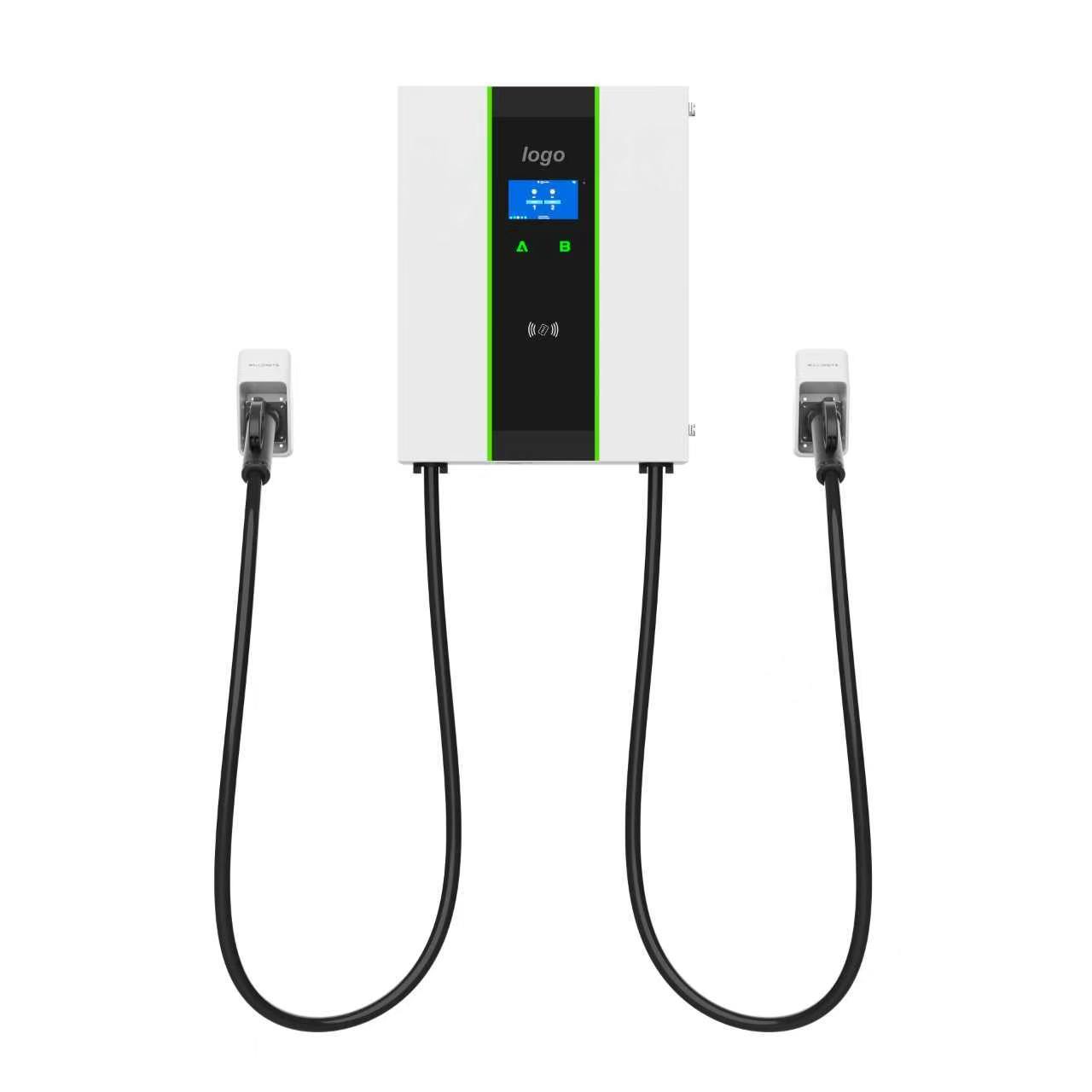

Our 40 kW 60kW DC EV charger comes in wall‑mounted and floor‑standing variants delivering high‑speed DC charging ideal for urban public stations, parking facilities, shopping malls and intercity highways.

It supports multiple vehicle types: buses, taxis, official‑use vehicles, sanitation trucks, logistics fleets, private cars and commuter vehicles.

Compact‑sized for easy installation in limited‑space sites, this unit performs reliably in diverse environments. Perfect for outdoor deployment at office‑building parks, homes, hospitals, supermarkets, hotels and other locations.

Features:
Input Voltage
380VAC (3P+N+PE) || 50/60Hz
Output Voltage
200 - 1000VDC
Efficiency
≥94% at nominal output power
Dimensions (L x D x H)
600mm x 470mm x 100mm
Installation
wall-mounted/ With Pole
Charging Cable Length
5M or Customized
Ingress Protection
IP54
Electrical Safety
Over-voltage protection, under-voltage protection, over-current protection, short-circuit protection
Electrical isolation
Isolate between input and output
Cooling
Forced fan cooling
Output protection
Short circuit protection; OCP,OVP,LVP,OTP, residual current detection
Cable
CCS1,CCS2,CHAdeMO,GB/T, NACS
IP rate
IP54
User interface
4.3" LCD display touch screen
Backstage monitoring
OCPP1.6 J support
Based on the criteria
IEC 62196, IEC 61851, ISO/IEC 15118, DIN SPEC 70121-2014,

  • 40 kW DC Fast Charging Delivers high‑efficiency DC charging tailored for commercial EV sites and fleet‑operation scenarios.
  • Dual‑gun Charging Capability Enables simultaneous dual‑vehicle charging to boost throughput and cut user waiting time.

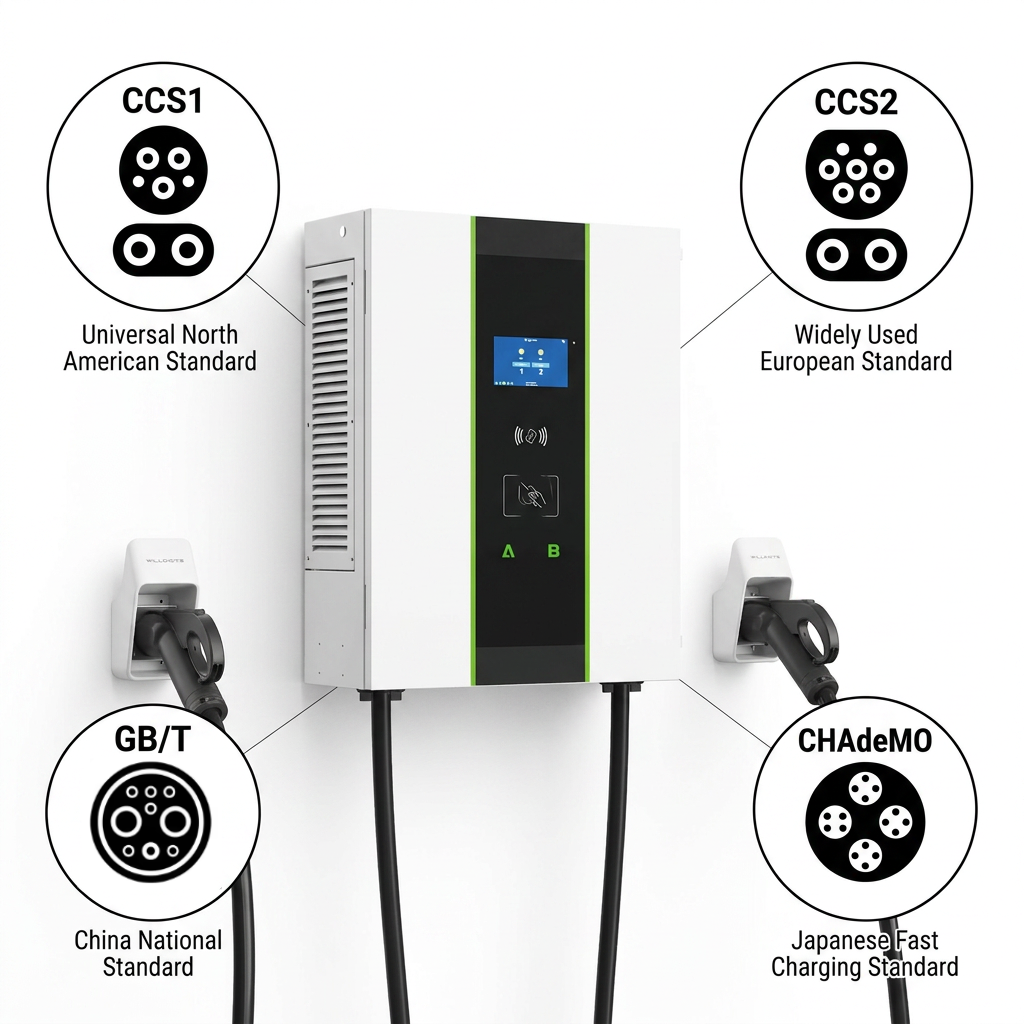

  • Multi‑connector Compatibility Supports CCS1, CCS2, GB/T and CHAdeMO connectors to cater to global EV market requirements.

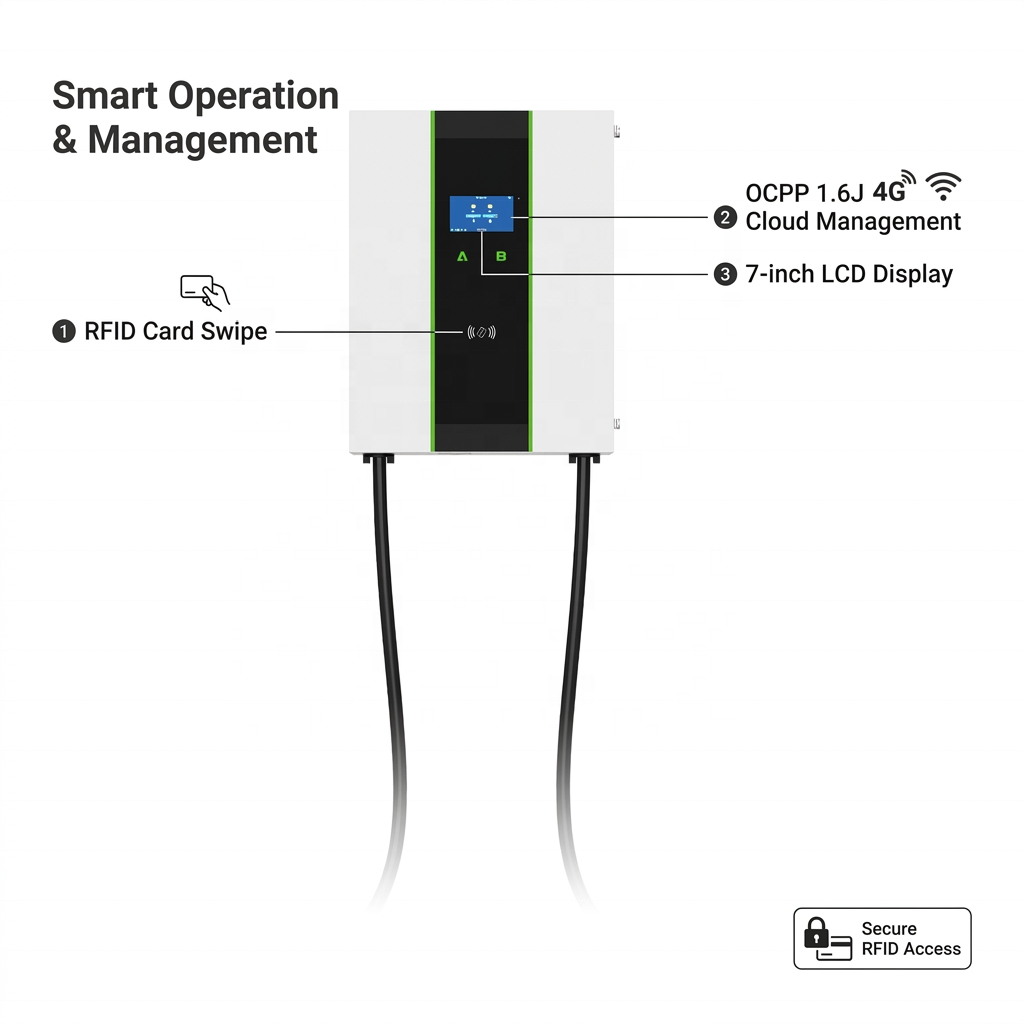

  • OCPP‑Compliant Smart Management Features OCPP 1.6 protocol for remote monitoring, device administration and seamless platform integration.
  • Commercial‑grade Robust Solution Perfect for parking lots, auto dealerships, vehicle fleets, hotels and public charging infrastructures.
  • Stable 3‑phase 380V Power Input Optimized for three‑phase 380V power supply, ensuring steady operation and superior charging efficiency.

40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages40kW 60kW DC Fast EV Charging Station Dual Gun CCS1 CCS2 GB/T CHAdeMO OCPP Commercial Charger With Multiple Languages
