Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles
Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles
Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles
Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles
Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles
Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles
Specifications
Brand Name :
Sixpence
Model Number :
EVCCS20D
Place of Origin :
Sichuan, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,Paypal,Alipay,Cash
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 Working days
Packaging Details :
76*26*24MM 65KG
Product Name :
DC Charging Station 20KW 30KW 40KW CCS1 CCS2 GBT CHADEMO TESLA Home Fast Ev Charger DC Station For Electric Cars Vehicles
Output power range :
20KW 30KW 40KW
Rated Voltag :
400V
Standard :
CCS1/CCS2/CHAdeMO/GBT/NACS
Description

Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles

Commercial DC Fast Charger 20KW-40KW | Multi-Standard CCS1 CCS2 GB/T CHAdeMO NACS EV Charging Station for Electric Vehicles

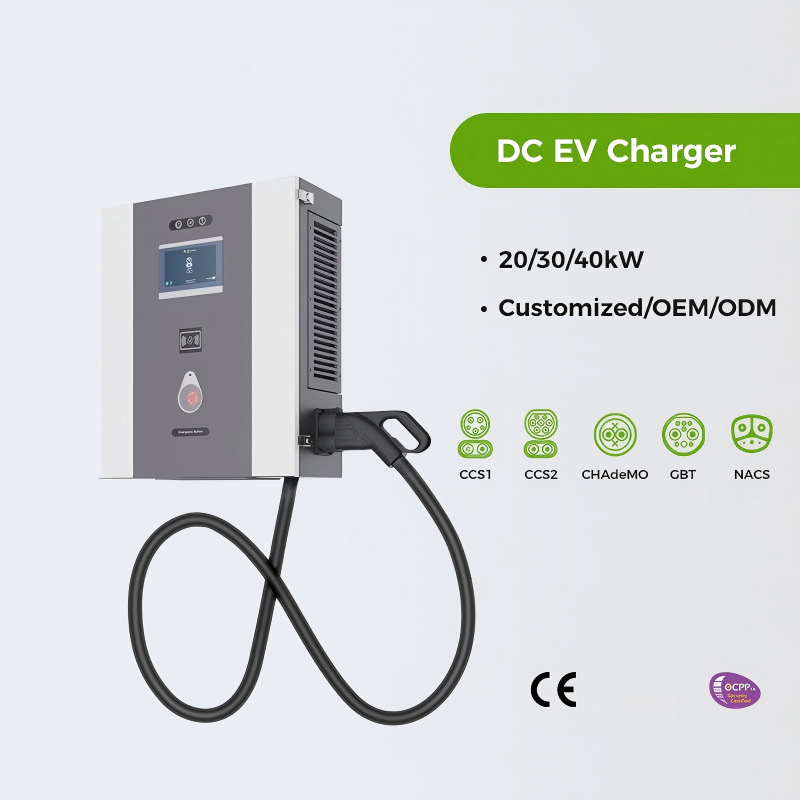

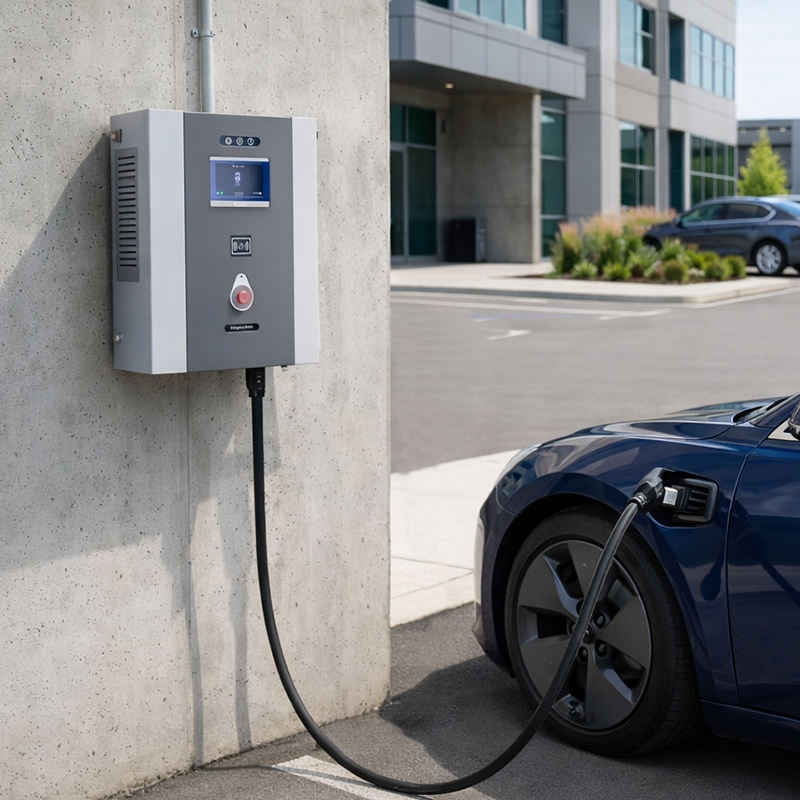

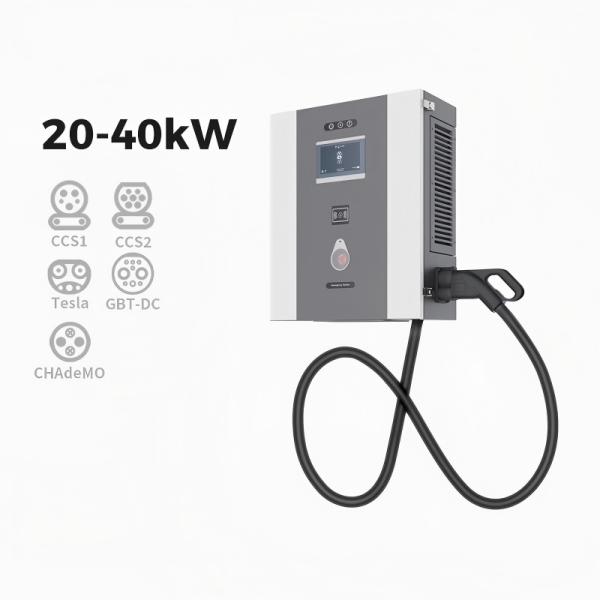

The 20KW–40KW Wall-mounted DC EV Charger is ideal for urban public charging stations, parking facilities, shopping malls, intercity highways, and other scenarios requiring high-speed DC charging.

It supports a wide range of electric vehicles, including buses, taxis, official vehicles, sanitation trucks, logistics vehicles, private cars, and commuter vehicles.

Compact and easy to deploy in limited spaces, this charging station delivers efficient and reliable EV charging across diverse operating environments.

The 20KW 30KW 40KW Wall-mounted/Floor-standed DC EV Charger is designed for efficient and fast charging of electric vehicles.This DC EV Charging Station can be applicable for outdoor installation like parking lot of office building,home,hospital, supermarket, hotel etc..

Features:
Input Voltage
400VAC (3P+N+PE) || 50/60Hz
Output Voltage
200 - 1000VDC
Efficiency
≥94% at nominal output power
Dimensions (L x D x H)
600mm x 470mm x 100mm
Installation
wall-mounted
Charging Cable Length
5M or Customized
Ingress Protection
IP54
Electrical Safety
Over-voltage protection, under-voltage protection, over-current protection, short-circuit protection
Outline
CANBus/RS485/RS232
Electrical isolation
Isolate between input and output
Cooling
Forced fan cooling
Output protection
Short circuit protection; OCP,OVP,LVP,OTP, residual current detection
Cable
CCS1,CCS2,CHAdeMO,GB/T, NACS
IP rate
IP54
User interface
7" LCD display touch screen
Backstage monitoring
OCPP1.6 J support
Based on the criteria
IEC 62196, IEC 61851, ISO/IEC 15118, DIN SPEC 70121-2014,

CCS BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
Tesla Tesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.
