DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
Specifications
Delivery Time :
7-15 Working days
Model Number :
EVCCS20D
Output power range :
20KW 30KW 40KW
Place of Origin :
Sichuan, China
Rated Voltag :
400V
Price :
Negotiable
Packaging Details :
76*26*24MM 65KG
Supply Ability :
10000 Piece/Pieces per Week
Payment Terms :
T/T,L/C,Western Union,Paypal,Alipay,Cash
Brand Name :
Sixpence
Product Name :
DC Charging Station 20KW 30KW 40KW CCS1 CCS2 GBT CHADEMO TESLA Home Fast Ev Charger DC Station For Electric Cars Vehicles
MOQ :
1 pieces
Standard :
CCS1/CCS2/CHAdeMO/GBT/NACS
Description

DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces

DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces

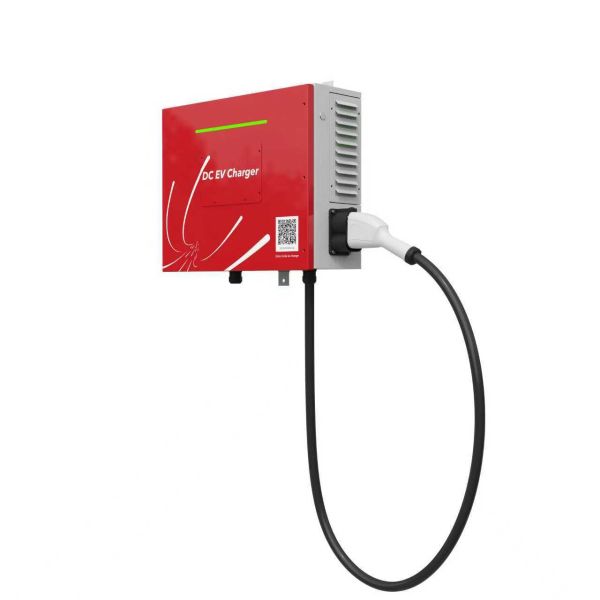

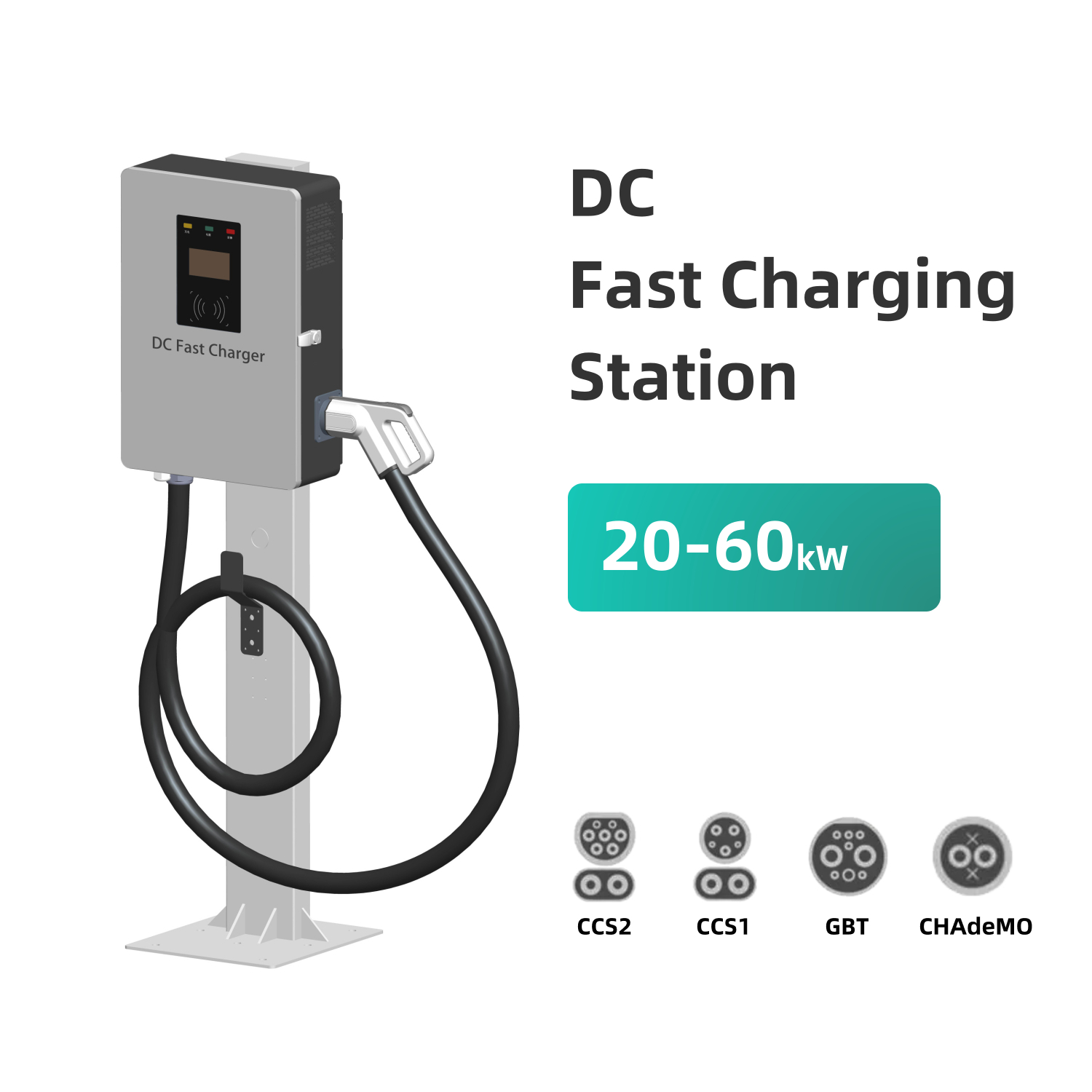

Our 20‑40 kW DC EV charger comes in wall‑mounted and floor‑standing variants (20 kW / 30 kW / 40 kW), delivering high‑speed DC charging ideal for urban public stations, parking facilities, shopping malls and intercity highways.

It supports multiple vehicle types: buses, taxis, official‑use vehicles, sanitation trucks, logistics fleets, private cars and commuter vehicles.

Compact‑sized for easy installation in limited‑space sites, this unit performs reliably in diverse environments. Perfect for outdoor deployment at office‑building parks, homes, hospitals, supermarkets, hotels and other locations.

Features:
Input Voltage
380VAC (3P+N+PE) || 50/60Hz
Output Voltage
200 - 1000VDC
Efficiency
≥94% at nominal output power
Dimensions (L x D x H)
600mm x 470mm x 100mm
Installation
wall-mounted/ With Pole
Charging Cable Length
5M or Customized
Ingress Protection
IP54
Electrical Safety
Over-voltage protection, under-voltage protection, over-current protection, short-circuit protection
Electrical isolation
Isolate between input and output
Cooling
Forced fan cooling
Output protection
Short circuit protection; OCP,OVP,LVP,OTP, residual current detection
Cable
CCS1,CCS2,CHAdeMO,GB/T, NACS
IP rate
IP54
User interface
4.3" LCD display touch screen
Backstage monitoring
OCPP1.6 J support
Based on the criteria
IEC 62196, IEC 61851, ISO/IEC 15118, DIN SPEC 70121-2014,

CCS BMW i3, VW e-golf & e-up, Jaguar ipace, Tesla model 3, Hyundai ioniq & kona, Audi e-tron, OPEL ampera e, Chevrolet spark, Geely TX electric Taxi, Ford focus.
CHAdeMO Nissan leaf & NV200, KIA soul, CITROEN C-Zero & Ber- lingo, Peugeot iOn, Mitsubishi i-Mev & outlander, Geely TX electric Taxi, Zero Motorcy- cles, Tesla Model S (need adapter)
GB/T BYD, BAIC, Chery, Geely, Aion S, MG, XiaoPeng, JAC, Zotype etc.
Tesla Tesla Model S,Tesla Model X,Tesla Model Y,Tesla Model 3.

DC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial SpacesDC Fast Charger 20KW to 40KW Wall Mounted EV Charging Station Designed for Charging in Urban Public and Commercial Spaces
