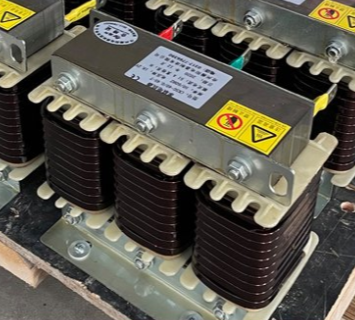

DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
Specifications
Brand Name :
OEM
Model Number :
DR-082
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Packaging Details :
New original box
Reactance coefficient :
0.1
Description
DR-082 CKSJ-2.1/0.48 7% Series Reactor for Capacitor Bank Power Factor Correction
The DR-082 CKSJ-2.1/0.48 7% Series Reactor is a high-performance inductive component specifically designed for capacitor bank power factor correction (PFC) systems. Engineered to work seamlessly with low-voltage reactive power compensation cabinets, it plays a critical role in enhancing power quality, protecting capacitors, and ensuring stable grid operation.
Harmonic Suppression
With a rated reactance rate of 7%, this series reactor is optimally tuned to suppress 5th and 7th harmonics—common in industrial grids with nonlinear loads such as rectifiers and converters. By connecting in series with capacitor banks, it effectively shifts the resonant frequency away from common harmonic ranges, preventing harmonic amplification that could damage capacitors and other critical electrical equipment.
Design & Performance
  • Compact dry-type iron core design
  • Excellent thermal stability: iron core temperature rise ≤85K, coil temperature rise ≤95K
  • Robust insulation level of 3kV/min for electrical safety and durability
  • Reliable performance in harsh operating conditions
Operational Benefits
This reactor excels in limiting capacitor closing inrush current and operating overvoltage, significantly extending the service life of capacitor banks and reducing maintenance costs. It seamlessly integrates with 400V and 660V circuit systems, providing strong adaptability for various industrial and commercial PFC applications.
Applications
Ideal for manufacturing, metallurgy, and other industrial scenarios, the DR-082 CKSJ-2.1/0.48 7% Series Reactor delivers efficient harmonic suppression, stable power factor improvement, and reliable equipment protection—making it an indispensable component for optimized power compensation systems.
