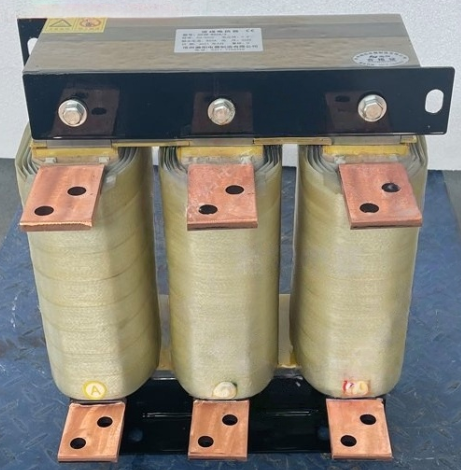

ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
Specifications
Brand Name :
OEM
Model Number :
OCL-566
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Packaging Details :
New original box
Short circuit closing current :
1A
Peak withstand current :
1.3A
Rated current :
20A
Working Voltage :
450V
Insulation voltage :
3000V
dielectric strength :
0.1V/m
Main circuit voltage :
440V
Total power consumption :
1W
Rated voltage of the system :
450V
Description
ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
Product Overview

The ACL-249 is a high-performance three-phase AC input reactor specifically designed for 355KW variable frequency drive (VFD) systems with a rated current of 700A. Equipped with a universal output terminal, it combines powerful harmonic suppression, current stabilization, and equipment protection, delivering reliable performance for high-power industrial VFD applications.

Technical Specifications
  • Rated Power: 355KW
  • Rated Current: 700A
  • Type: Three-Phase AC Input Reactor
  • Universal Output Terminal Design
  • Compatible with 355KW VFD Systems
Key Features & Benefits
  • Effective harmonic suppression and filtering of grid distortions
  • Limits inrush current during VFD startup
  • Suppresses voltage spikes and transient interference
  • Improves power factor and reduces energy loss
  • Protects VFD rectifier modules, IGBTs, and sensitive components
  • Extends VFD service life and reduces maintenance costs
  • Universal compatibility with various VFD models
  • Easy installation and maintenance-free operation
Construction & Performance

Constructed with premium cold-rolled silicon steel cores and high-conductivity oxygen-free copper windings, the reactor delivers low iron loss, low copper loss, and excellent thermal stability. The robust compact structure with advanced insulation technology ensures minimal heat generation during long-term heavy-load operation while complying with international safety and EMC standards (IEC/GB).

Applications

Ideal for 355KW VFD systems in diverse industrial applications including large pumps, high-power fans, compressors, heavy-duty conveyors, and precision machine tools. Designed to perform reliably in harsh industrial environments while supporting energy conservation and operational efficiency goals.

ACL-249 355KW 700A AC Input Reactor | Universal Output Terminal for VFD
