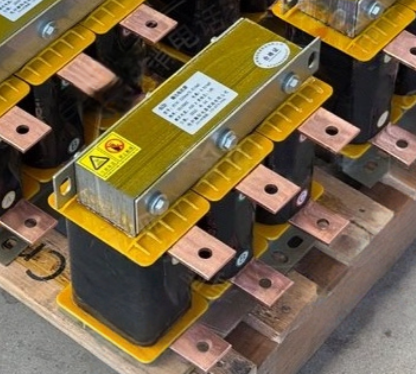

OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
OCL-570 800A 400KW Dry-Type Iron Core Line Reactor for VFD Inverter Input Output Protection
Specifications
Brand Name :
OEM
Model Number :
OCL-570
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Packaging Details :
New original box
Reactance coefficient :
0.01
rated frequency :
40Hz
Short circuit closing current :
1A
Peak withstand current :
1.3A
rated current :
20A
Working Voltage :
450V
insulation voltage :
3000V
dielectric strength :
0.1V/m
Rated voltage of the system :
450V
Main circuit voltage :
440V
Total power consumption :
1W
Description
OCL-570 800A 400KW AC Input Output Line Reactor for VFD Inverter
The OCL-570 AC Input Output Line Reactor is a high-efficiency electrical component specifically designed for VFD (Variable Frequency Drive) inverters. With a rated current of 800A and rated power of 400KW, this dual-function reactor integrates both input and output capabilities to optimize power quality and protect VFD systems.
Construction & Design Features
  • Dry-type iron core structure using high-quality low-loss cold-rolled silicon steel sheets
  • Epoxy laminated glass cloth spacers ensure no air gap displacement during operation
  • Low noise operation (≤65dB at 1m distance) with stable performance
  • Coil tightly wound with F-class high-temperature enameled wire
  • Excellent insulation performance with temperature rise limits: ≤95K for coils, ≤85K for cores
  • Suitable for long-term continuous operation
Performance Benefits
  • Suppresses high-order harmonics generated by VFD inverters
  • Reduces voltage spikes and current surges
  • Prevents parallel resonance to avoid damage to VFD components and power grid equipment
  • Smooths power voltage fluctuations and improves power factor
  • Relieves three-phase imbalance
  • Extends service life of both VFD inverters and connected motors
Technical Specifications
Rated Current 800A
Rated Power 400KW
Noise Level ≤65dB at 1m distance
Temperature Rise Coils: ≤95K, Cores: ≤85K
Protection Grade IP00
Overload Capacity 1.5 times rated current for 1 minute
Compliance Standards IEC289:1987, GB10229-88, JB9644-1999
Applications
Widely applied in industrial automation, motor drive systems, and high-power VFD scenarios including coal-fired power plant conveyor belts. Compact size, light weight, and easy installation ensure stable and efficient operation of the entire drive system.
