241-7972、163-9762、241-9299 Small excavator main pump adaptation 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5
241-7972、163-9762、241-9299 Small excavator main pump adaptation 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5
241-7972、163-9762、241-9299 Small excavator main pump adaptation 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5
241-7972、163-9762、241-9299 Small excavator main pump adaptation 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5
Specifications
Model Number :
241-7972、163-9762、241-9299
Certifiion :
ISO
Place of Origin :
USA
MOQ :
1
Price :
2
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Pressure :
High Pressure,Low Pressure,25MPa,210bar,200-250bar
Appliion :
Metering,Maritime,Submersible,hydraulic jack,Putzmeister
Structure :
Gear Pump,Piston Pump,Single-stage Pump,Diaphragm Pump,hydraulic variable displacement vane pump for shoe making machine
Theory :
Rotary Pump,Centrifugal Pump,Electromagnetic Pump,hydraulic diaphragm metering pump,Reciproing Pump
Material :
Steel,Aluminum Alloy,casting,HT300 Casting body,Cast Iron
Product name :
Hydraulic oil gear pump,hydraulic diaphragm metering pump,Vickers 45VQT vane pump,High pressure hydraulic hand pumps,Short Delivery Time Hydraulic Cylinder Hand Pumps
Color :
Yellow,according to customer's requirement,customize,black,Transparent
Type :
Hydraulic Motors,single gear pumps,Hydraulic gear products,Hydraulic pump,Hydraulic Power Units
Feature :
High Efficiency,Long Life,High quality
Speed :
600-2200rpm,1800r/min,rated 2000r/max-6000r/min-800r/min
Name :
35VQ eaton vickers hydraulic pumps,machine to drive hydraulic pumps,pumping unit or rexroth hydraulic pump for tower crane
Description

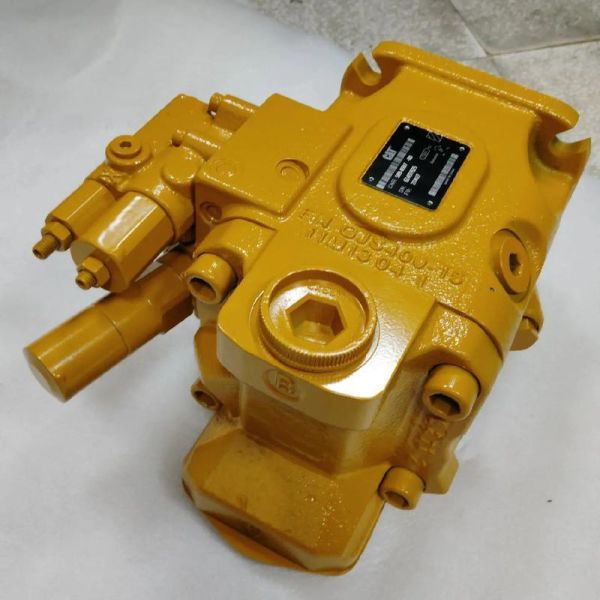

241-7972, 163-9762, 241-9299 Small Excavator Main Pump
Product Overview

Axial piston pump designed for small excavator models including 301.5, 301.6, 301.7CR, 301.8, 302CR, 302.5C, and 303.5. Compatible with multiple OEM and replacement part numbers.

Technical Specifiions
Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise
Gear Pump (Pilot) 560-0886 Full Range Excavators 8.2 21 Clockwise
Axial Piston Pump 295-9426 349 Series 160 36 Clockwise
Gear Pump (Auxiliary) 175-6253 Loaders/Backhoes 10.5 24 Clockwise
Compatible Part Numbers
  • Main pump: 487-6207 CA4876207, 566-7021, 241-7972, 163-9762, 241-9299
  • Pilot/gear pump: 560-0886, 211-6626
Equipment Compatibility by Size egory
Small Excavators (3-10 tons)
  • Main pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004
  • Adaptation: 305.5E/306E/307D/308E/312D/317, etc.
  • Pilot/gear pump: 126-2016, 284-3536
Medium Excavators (20-36 tons)
  • Main pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707, 451-9302, 341-2860, 567-9721, 593-8367, 436-6669, 438-1293, 244-8479, 272-6957, 339-0513, 123-2233, 126-2073, 119-5407, 497-8499, 114-0602, 0R-8102
  • Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc.
  • Rotary pumps: 204-4916, 204-4922
  • Pilot/gear pump: 175-6253, 397-6960
Large Excavators (over 37 tons)
  • Main pump/rotary pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950
  • Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc.
  • Pilot/gear pump: 564-9801, 234-4638
241-7972、163-9762、241-9299 Small excavator main pump adaptation 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5
Frequently Asked Questions
Why is part number 487-6207 not suitable for excavators over 3 tons?
487-6207 is designed for mini-excavators (1-3 tons) with a small displacement that cannot meet the high-power demands of larger excavators.
What is the difference between a pump's OEM part number and its replacement number?
The OEM number is the original factory code, while replacement numbers (often prefixed with "CA-") are for upgraded/remanufactured versions that are fully compatible with the original equipment.
How to troubleshoot abnormal noise from a hydraulic pump?
Check for low oil level (cavitation noise), blocked/leaking suction lines (air intake), misaligned/worn couplings (mechanical noise), or internal pump wear (scraping noise requiring repair).
What is the typical rated pressure range for excavator main hydraulic pumps?
Most excavator main pumps have a rated pressure range of 28-38 MPa, varying by equipment size and appliion.
