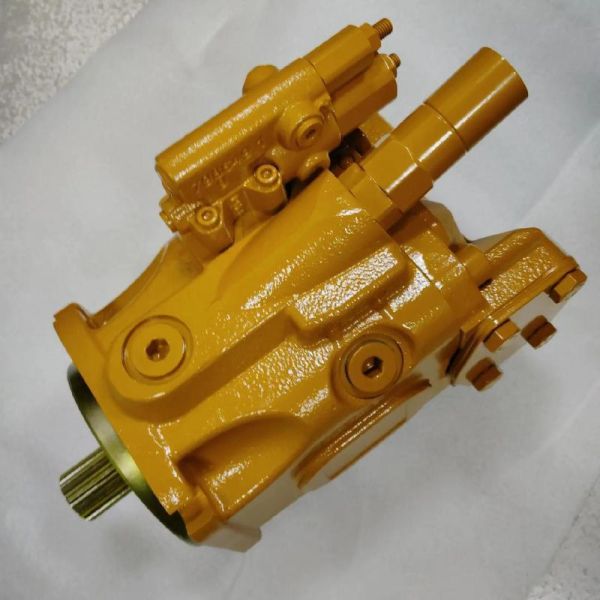

4I-1023、348-7627、7Y-4002 3-10 ton small excavator hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317
4I-1023、348-7627、7Y-4002 3-10 ton small excavator hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317
4I-1023、348-7627、7Y-4002 3-10 ton small excavator hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317
4I-1023、348-7627、7Y-4002 3-10 ton small excavator hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317
Specifications
Brand Name :
CAT
Model Number :
4I-1023、348-7627、7Y-4002
Certification :
ISO
Place of Origin :
USA
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Outlet Port Position :
Top, Side, Bottom (customizable angle: 0°/90°/180°)
All pump types :
Low-temperature customization requires anti-freezing hydraulic oil matching
Oil Cleanliness Grade :
Standard: NAS 9; Custom high-purity: NAS 6 (for precision control systems)
Main pumps, pilot pumps :
Higher cleanliness grade reduces internal wear for long-term stable operation
Operating Temperature :
Standard: -20°C to 90°C; Custom low-temperature: -40°C to 90°C (special oil seal)
Control Mode :
Manual control, Hydraulic proportional control, Electric proportional control (PLC)
Description

4I-1023,348-7627,7Y-4002 3-10 ton small excavator hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317

Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise
Gear Pump (Pilot) 560-0886 Full Range Excavators 8.2 21 Clockwise
Axial Piston Pump 295-9426 349 Series 160 36 Clockwise
Gear Pump (Auxiliary) 175-6253 Loaders/Backhoes 10.5 24 Clockwise

4I-1023、348-7627、7Y-4002 3-10 ton small excavator hydraulic pump adaptation 305.5E/306E/307D/E/308E/312D/317

Main pump: 487-6207 CA4876207,566-7021,241-7972,163-9762,241-9299

• Adaptation: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc

Pilot/gear pump: 560-0886, 211-6626

2, Small excavator (3-10 tons)

Main pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

• Adaptation: 305.5E/306E/307D/308E/312D/317, etc

Pilot/gear pump: 126-2016, 284-3536

3, Medium sized excavator (20-36 tons)

Main pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707,451-9302,341-2860,567-9721,593-8367,436-6669,438-1293,244-8479,272-6957,339-0513,123-2233,126-2073,119-5407,497-8499,114-0602,0R-8102

• Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc

Rotary pumps: 204-4916, 204-4922

Pilot/gear pump: 175-6253, 397-6960

4, Large excavator (over 37 tons)

Main pump/rotary pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

• Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc

Pilot/gear pump: 564-9801, 234-4638

5, Loader/Busy at both ends (415F/416F/422F/426F/428F, etc.)

Main pump: 307-3063 CA3073063,20R-6569,161-6634,235-4110,100-3259,121-7385

• Adaptation: 415F/416C/D/E/F/422F/426F/428D/F, engine C3.4/C4.4

Pilot/gear pump: 175-6253, 397-6960

6, Bulldozer (D7/D8/D9 series)

Main pumps: 9T-8647, 9T-8346, 100-6239/OR-7677, 9J-5068, 9T-8647, 6E-5072

• Adaptation: D7R/H, D8N/R, D9R, 140G, etc

Gear pump: 9T-1318, 104-1752

7, Mining/heavy equipment (374F/390F/988G/966H, etc.)

Main pumps: 584-0379, 4208636, 4208637, 153-9624, 254-5147, 235-2716

• Adaptation: 374F, 6015B, 988G, 966H, etc

FAQ:

Q1: What is the role of a pilot pump in Cat equipment?

A: The pilot pump supplies low-pressure hydraulic oil to control valves, enabling operator control of equipment movements (e.g., boom lift, bucket tilt).

Q2: How often should Cat hydraulic pump filters be replaced?

A: Follow the equipment maintenance schedule—typically every 500–1000 operating hours, or sooner in harsh working conditions.

Q3: What is the application of Cat pump part number 307-3063?

A: 307-3063 is an axial piston pump designed for Cat loaders/backhoes (e.g., 415F/416F), not for excavators.

Q4: What temperature range can Cat hydraulic pumps operate in?

A: The optimal operating temperature is 50–80°C; prolonged operation below 10°C or above 90°C will reduce pump life.

Q5: How to check hydraulic pump flow rate?

A: Use a flow meter connected to the pump’s outlet port, measure the flow under rated pressure, and compare it to the OEM specifications.
