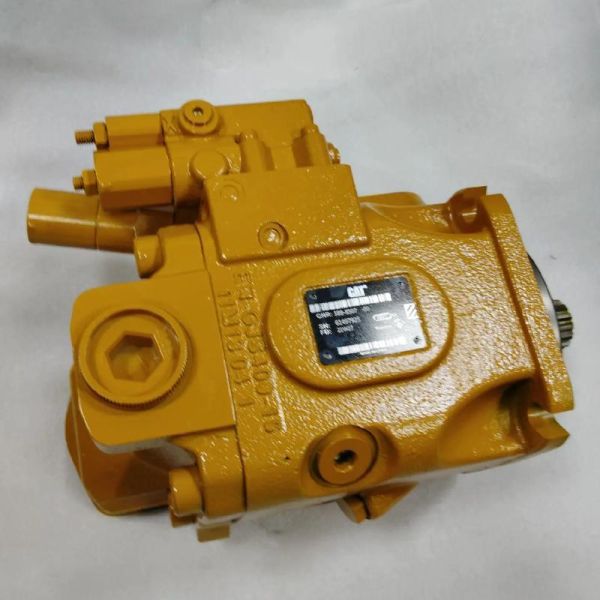

247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317
247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317
247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317
247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317
Specifications
Brand Name :
CAT
Model Number :
247-7867、358-5004
Certification :
ISO
Place of Origin :
USA
MOQ :
1
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Rotation Direction :
Clockwise (CW, standard), Counterclockwise (CCW, custom order only)
All pump types :
CCW pumps need matched drive system and control valve adjustments
Mounting Standard :
SAE A/B/C/D, Custom flange/foot mounting for special equipment
Main pumps, pilot pumps :
Confirm base plate dimensions and bolt hole positions before customization
Seal Material :
Nitrile rubber (NBR, standard), Fluororubber (FKM, custom for high-temperature oil)
Axial piston pumps, gear pumps :
Match displacement to equipment power demand; higher cc/r = larger flow rate
Description

247-7867,358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317

Pump Type OEM Part Number Applicable Equipment Model Displacement (cc/r) Rated Pressure (MPa) Rotation Direction Mounting Standard
Axial Piston Pump 487-6207 301.5/301.6/301.7CR 12.5 28 Clockwise SAE A
Axial Piston Pump 423-0097 305.5E/306E/307E 65 32 Clockwise SAE B
Axial Piston Pump 272-6959 325D/329D/DL 145 35 Clockwise SAE C
Axial Piston Pump 369-9655 374F/390F 280 38 Clockwise SAE D
Axial Piston Pump 307-3063 415F/416F/422F 112 31 Clockwise SAE B
Gear Pump (Pilot) 560-0886 Full Range Excavators 8.2 21 Clockwise SAE A

247-7867、358-5004 3-10 ton small excavator hydraulic axial piston pump adaptation 305.5E/306E/307D/E/308E/312D/317

Main pump: 487-6207 CA4876207,566-7021,241-7972,163-9762,241-9299

• Adaptation: 301.5/301.6/301.7CR/301.8/302CR/302.5C/303.5, etc

Pilot/gear pump: 560-0886, 211-6626

2, Small excavator (3-10 tons)

Main pumps: 423-0097, 397-3941, 214-1091, 4I-1023, 348-7627, 7Y-4002, 247-7867, 358-5004

• Adaptation: 305.5E/306E/307D/308E/312D/317, etc

Pilot/gear pump: 126-2016, 284-3536

3, Medium sized excavator (20-36 tons)

Main pumps: 272-6959, 289-7917, 272-6955, 259-0815/10 R-8707,451-9302,341-2860,567-9721,593-8367,436-6669,438-1293,244-8479,272-6957,339-0513,123-2233,126-2073,119-5407,497-8499,114-0602,0R-8102

• Adaptation: 320D/D2/323D2/326GC/329D/330D/336D/D2XE, etc

Rotary pumps: 204-4916, 204-4922

Pilot/gear pump: 175-6253, 397-6960

4, Large excavator (over 37 tons)

Main pump/rotary pump: 369-9655, 593-3840, 584-0380, 627-1304, 295-9426, 550-4341, 194-8259, 361-0718, 353-5691, 362-8488, 510-7950

• Adaptation: 336GC/340/345/349/374F/385/390F/395GC, etc

Pilot/gear pump: 564-9801, 234-4638

FAQ:

Q1: What is the difference between a main pump and a swing pump in Cat excavators?

A: The main pump supplies hydraulic power for overall movements (boom, arm, bucket), while the swing pump is dedicated to the excavator’s upper structure rotation.

Q2: Can Cat hydraulic pumps be repaired on-site?

A: Minor issues (e.g., seal replacement, fitting tightening) can be fixed on-site, but major damage (e.g., internal cylinder block wear) requires workshop disassembly and repair.

Q3: What is the OEM part number for the swing pump of Cat 374F?

A: The common swing pump part number for Cat 374F is 593-3840, a double piston pump.

Q4: Why does a hydraulic pump experience cavitation?

A: Cavitation is caused by low oil level, restricted suction lines, high oil viscosity at low temperatures, or a clogged suction filter.

Q5: Are Cat hydraulic pump parts interchangeable between different equipment models?

A: Only if the models share the same hydraulic system specifications; always verify with the parts manual or dealer before interchange.
