15T Industrial Electric Hoist Compact Low Headroom Electric Chain Hoist Lightweight
15T Industrial Electric Hoist Compact Low Headroom Electric Chain Hoist Lightweight
Specifications
Model Number :
KN15-06
Chain Diameter :
11mm
Payment Terms :
L/C,T/T
Rated Load :
15T
Output Power :
4.5/0.8 kW
Price :
USD,250-500/SET
Lifting Height :
4m
Hoisting Speed :
2.7 m/min (High Speed), 0.4 m/min (Low Speed)
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Motor Speed :
2880/720 r/min
Supply Ability :
200 Sets per Month
Name :
Industrial Electric Hoist
Brand Name :
KOEO
Certification :
CE, ISO 9001:2015
Place of Origin :
Zhejiang, China
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description

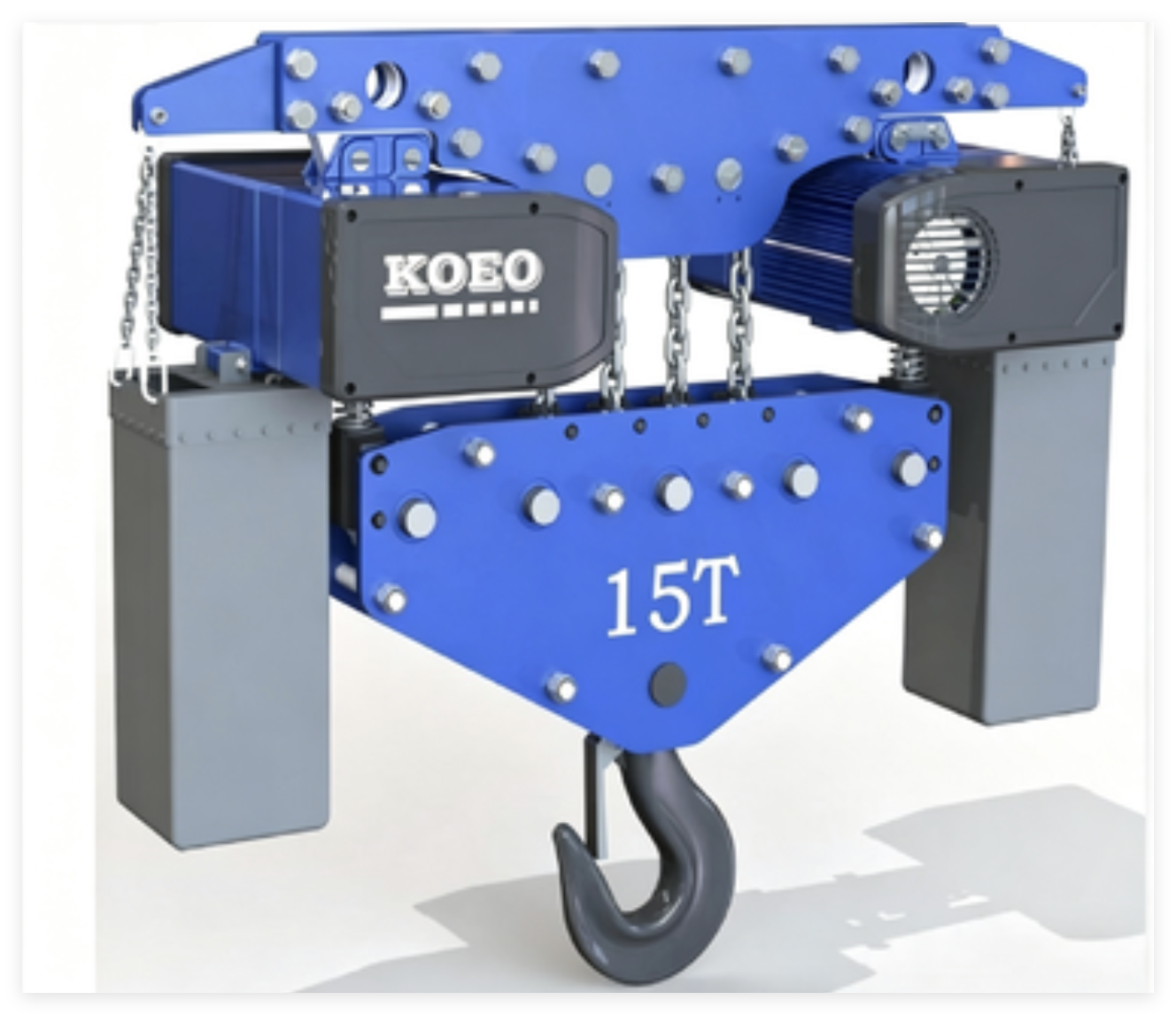

15T European Industrial Electric chain Hoist

15-Ton European Industrial Electric Chain Hoist delivers heavy-duty lifting capacity within a remarkably compact and lightweight frame. Designed for demanding industrial applications—such as mold manufacturing, heavy equipment assembly, metallurgy, and logistics—it combines high lifting capacity with low headroom, whisper-quiet operation, and low maintenance costs.

Features
1. Ultra-Low Headroom Design (Space Saving)

  • Maximized Hook Path: The compact, European-style architecture minimizes vertical height requirements (headroom), allowing for higher hook paths in lower ceiling environments.

  • Building Savings: Reduces the required vertical space for new facility construction or maximizes working clearance in existing workshops.

2. Smooth & Precise Handling (VFD Control)

  • Millimeter-Level Positioning: Equipped with Variable Frequency Drive (VFD) technology for smooth starting and stopping.

  • Zero Load Sway: Eliminates sudden jolts and swaying during micro-positioning, keeping operator, equipment, and heavy 15T loads entirely safe.

3. High Efficiency & Low Energy Consumption

  • IE3/IE4 Energy-Efficient Motor: Optimized motor design reduces thermal dissipation and energy consumption during heavy continuous usage.

  • Hardened Helical Gearbox: Features high-precision, case-hardened helical gears operating at over 95% transmission efficiency, ensuring whisper-quiet operation ($< 70text{ dB}$).

4. Heavy-Duty Reliability & Modular Design

  • FEM 2m/3m Duty Rating: Engineered for rigorous industrial duty cycles, long working hours, and high load frequency.

  • Lifetime Lubricated: The sealed oil-bath gearbox requires minimal routine servicing.

  • Plug-and-Play Maintenance: Modular components allow rapid inspection and quick part swaps without completely dismantling the unit.

5. Comprehensive 360° Safety Package

  • Dual Brake & Clutch Protection: Features a fail-safe electromagnetic disc brake combined with an adjustable friction slip clutch for immediate double protection against overload.

  • Upper & Lower Limit Switches: Standard built-in limit switches prevent chain over-travel and structural binding.

  • High-Strength DAT Alloy Chain: Grade 80 / 100 heat-treated alloy steel load chain offers superior wear resistance and high tensile safety factors.

Main Application Areas

  • Heavy Machinery Manufacturing & Assembly

  • Mold & Die Handling

  • Automotive & Aerospace Plant Maintenance

  • Steel Processing & Fabrication Workshops

  • Shipbuilding & Power Generation Facilities

15T Industrial Electric Hoist Compact Low Headroom Electric Chain Hoist Lightweight

Model Rated Load (T) Lifting Height (m) Hoisting Speed (m/min) Hoisting Motor (3 Phase) Running Motor (3 Phase) Working Class Chain Diameter (mm)
High Speed Low Speed Output Power (kW) Motor Speed (r/min) Phases Voltage (V) Frequency (Hz) Power (W) Motor Speed (r/min) Running Speed (m/min)
KN15-06 15 4 2.7 0.4 4.5/0.8 2880/720 3 380V 50 450×2 1440 10.5 M3 11
